Waterproof Water Ec Sensor , TDS Controller Digital PH Sensor

Basic Information
Place of Origin: China
Brand Name: Desun Uniwill
Model Number: DSC480
Minimum Order Quantity: 1
Price: Determined by the number of specific orders
Packaging Details: Carton packaging
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1000
Detail Information
Name: Online EC Conductivity Sensor Place Of Origin: Shaanxi, China
Brand Name: Desun Uniwill Power Supply: DC 6~12V, Current <50mA
Output Signal: RS-485 Max Operating Pressure: 6 Bar
Conductance Accuracy: 1% Assembly: Input Type
High Light:

Waterproof water ec sensor

,

TDS Controller water ec sensor

,

Waterproof Digital pH Sensor


Product Description

Agricultural Waterproof Digital PH EC TDS Controller And Sensor Water Tester Conductivity meter

Product Description

Description

Digital conductivity sensor adopts a new generation of four-electrode/six-electrode technology, with wide measurement range, automatic switching measurement range, built-in temperature sensor and real-time temperature compensation. It has excellent anti-pollution ability and will not cause polarization even in the harsh environment for long-term online monitoring. RS485 output, can be networked without a controller.


Features

* Digital sensor, RS485 output, support Modbus
* Wide measurement range, automatic switching measurement range
* Built-in temperature sensor, real-time temperature compensation
* Four-electrode/six-electrode technology, no polarization


Technical parameters

Product name
Four-electrode conductivity sensor
Six-electrode conductivity sensor
Model
DSC480
DST481
DST482
Range
1uS/cm~200 mS/cm
1uS/cm~100 mS/cm
1uS/cm~100 mS/cm
Conductance accuracy
±1%
Resolution
1uS/cm
Response time
<2 sec
Protection level
IP68
Max operating pressure
6 bar
Temperature range
0~ 50°C
Sensor interface
Support RS-485, MODBUS protocol
Installation
Input type
Power supply
DC 6~12V, current <50mA (when not cleaned)
Temperature Sensor
NTC
Electrode material
Nickel
Housing material
PEEK
Probe cable length
5 meters (default), can be customized
Size
Φ 22 *165mm
Calibration
One or two point calibration



Detailed Images

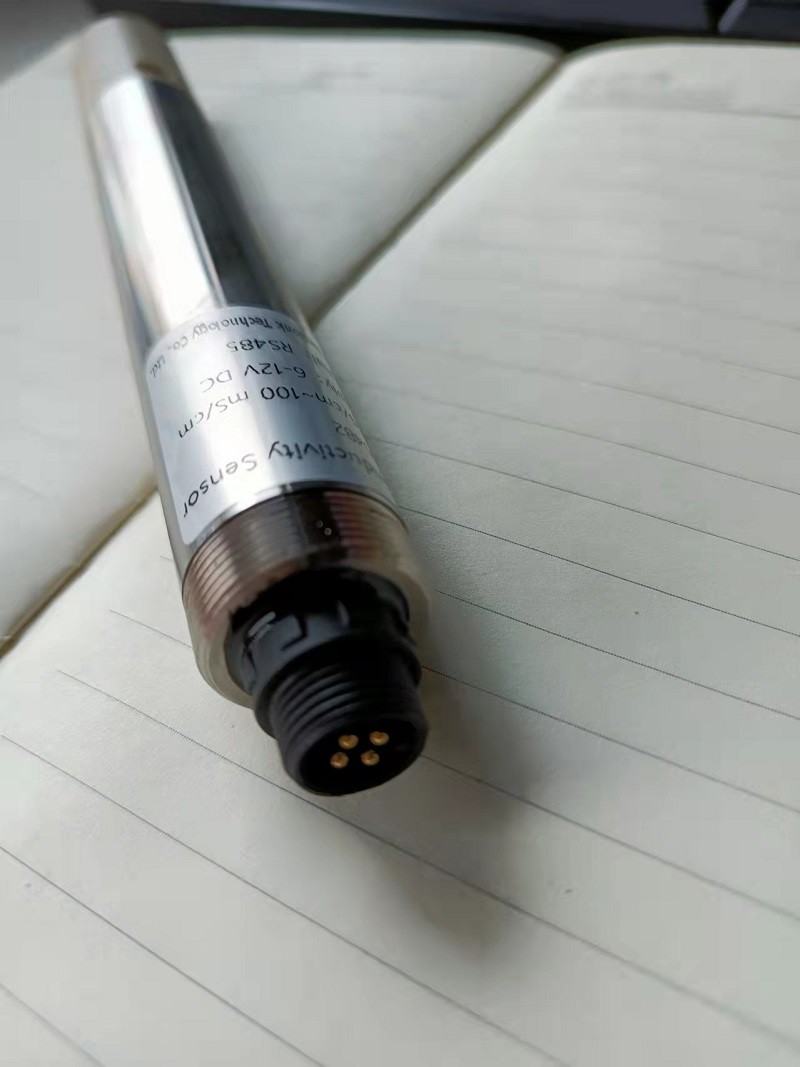

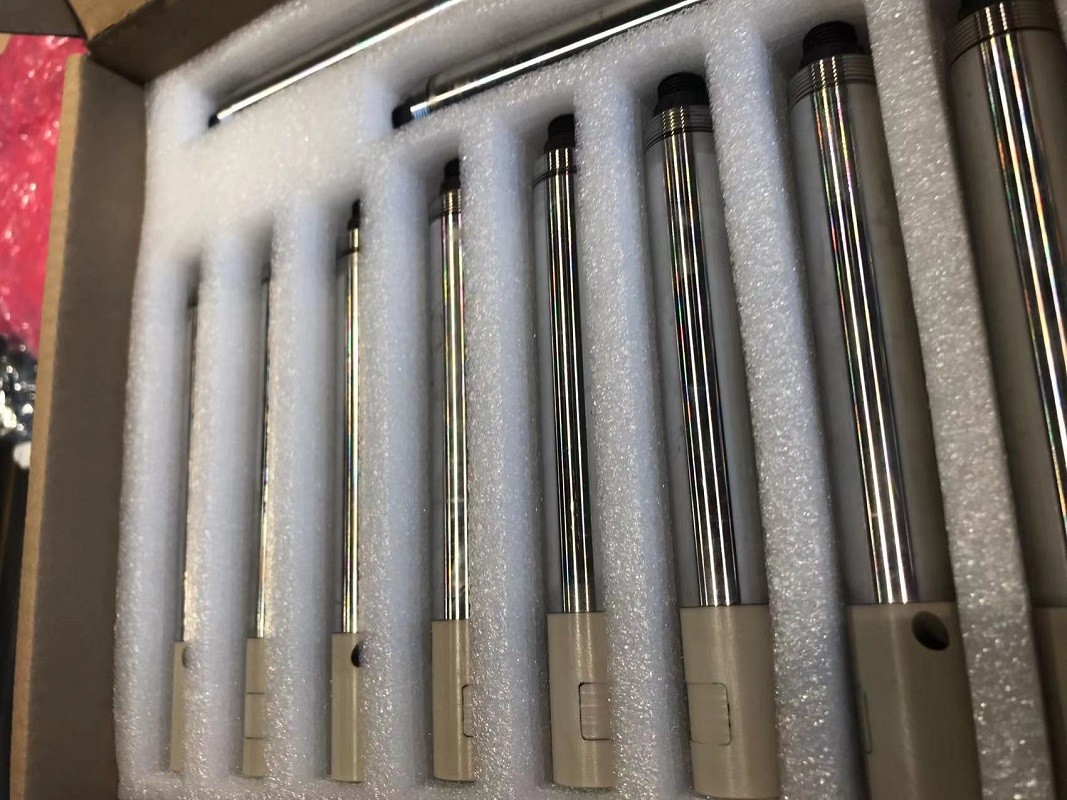

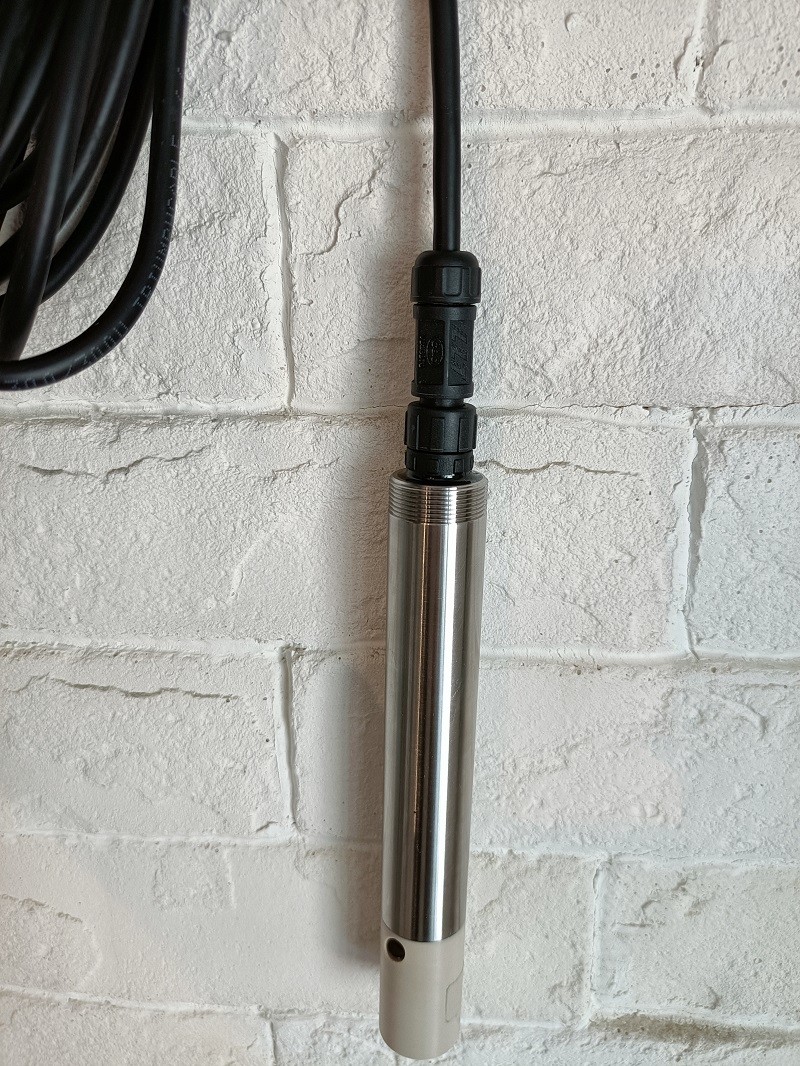

Waterproof Water Ec Sensor , TDS Controller Digital PH Sensor 0

Our Company


Waterproof Water Ec Sensor , TDS Controller Digital PH Sensor 1

Xi'an Desun Uniwill Electronic Technology Co., Ltd. was established in March 2019,registered capital of 5 million,and is located in Xi'an High-tech Development Zone. Relying on the abundant university resources in Xi'an, it has carried out technical cooperation with many universities and scientific research institutions, and is committed to monitoring the water environment.
The company is a high-tech company integrating production, R&D, sales, after-sales service and engineering services.
Multi-parameter water quality sensors (five parameters / seven parameters), optical dissolved oxygen, fiber turbidity, four-electrode conductivity, blue-green algae, chlorophyll, water oil and COD have been introduced. Widely used in water environmental protection, sewage treatment, industrial process monitoring, aquaculture, groundwater monitoring, water plants, petrochemical enterprises, small and medium-sized environmental protection companies, food fermentation and pharmaceuticals. Through water environment monitoring equipment, water quality can be monitored more effectively during processing, discharge and recycling.

Our Service

* Standardized workshop and process
* Strict professional quality inspection
* Return is supported if the product is unqualified.
* Fast delivery
* Warranty for 1 years



FAQ

Q: Is your company a manufacturer??
A: Yes,we are a professional manufacturer of online water quality monitoring products: oil in water sensor/ DO sensor/ NH4-N sensor / ORP / COD sensor / Blue-green algae sensor /Conductivity sensor /TDS / TSS /MLSS,ect.
Q: What parameters do you need for product selection?
A: Application, Range, Power supply and Output signal.
Q: How about the quality of the managements?
A: We have a complete quality control system, our products will be fully pre-inspection before shipping to you. We have the certification of ISO, CE, we could send the certification test of our company to you.
Q: Can you offer OEM services?
A: Yes,we support OEM and ODM products according to your requirements.
