Product Name: | EC Conductivity Sensor | Precision: | ±3% |
---|---|---|---|
Resolution: | 1uS/cm | Output Signal: | Support RS-485, MODBUS Protocol |
Material: | SS316 | Support: | OEM, ODM, OBM |
Warranty: | 12 Months | IP Grade: | IP68 |
Installation: | In Water | ||
High Light: | Tds Electrical Conductivity Meter,Electrical Conductivity Meter MODBUS Protocol,Ph Aquarium Oxygen Meter |
Online Hydroponic Aquarium Ph Ec Tds Conductivity Controller Meter Analyzer Sensor

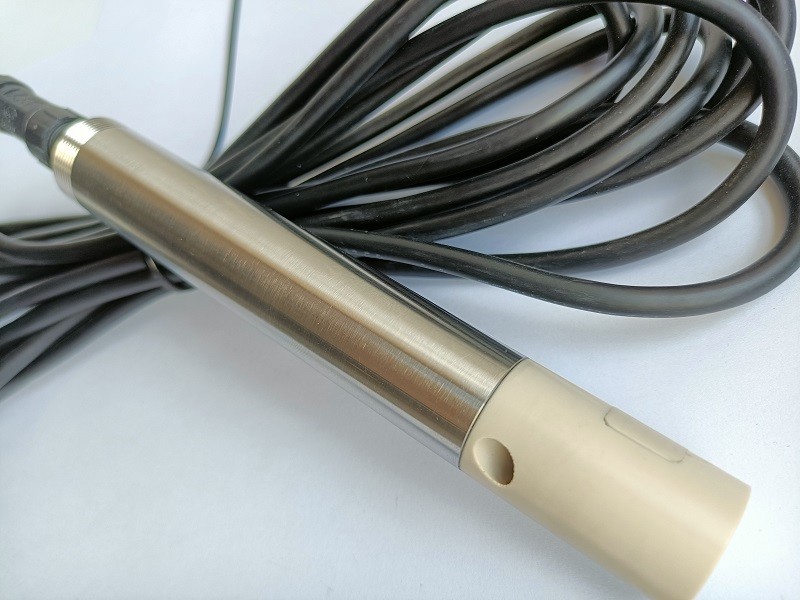

The DSC480 digital conductivity sensor adopts a new generation of four-electrode technology with a wide measurement range and can automatically switch the range. Automatic temperature compensation for the changing temperature of the water body. Strong anti-interference ability, the electrode can adapt to a variety of harsh water environment, the electrode will not be polarized in long- term use, reducing maintenance costs.
Product name
|
Four-electrode conductivity sensor
|
Six-electrode conductivity sensor
|
||
Model
|
DSC480
|
DST481
|
DST482
|
|
Range
|
1uS/cm~200 mS/cm
|
1uS/cm~100 mS/cm
|
1uS/cm~100 mS/cm
|
|
Conductance accuracy
|
±3%
|
|||
Resolution
|
1uS/cm
|
|||
Response time
|
<3 sec
|
|||
Protection level
|
IP68 |
|||
Max operating pressure
|
6 bar
|
|||
Temperature range
|
0~ 50°C
|
|||
Sensor interface
|
Support RS-485, MODBUS protocol
|
|||
Installation
|
Input type
|
|||
Power supply
|
DC 6~12V, current <50mA
|
|||
Temperature Sensor
|
Built in | |||
Electrode material
|
Nickel
|
|||
Housing material
|
PEEK
|
|||
Probe cable length
|
5 meters (default), can be customized
|
|||
Size
|
Φ 22 *165mm
|
|||
Calibration
|
One or two point calibration
|
* Standardized workshop and process
* Strict professional quality inspection
* Return is supported if the product is unqualified
* Fast delivery
* Warranty for 1 year
We are committed to the water quality monitoring industry, actively innovating and improving products, and optimizing industry application solutions. We take technology and quality as the cornerstone, honesty and service as the foundation, do a good job of water quality monitoring with our heart, and contribute to the development of the water quality monitoring industry. power. At present, the products are sold to more than 30 countries and regions overseas, and they have established their own sales network locally, cooperate with after-sales and maintenance personnel, and continue to supply water body monitoring equipment.
Q: What parameters do you need for product selection?
A: Application, Range, Power supply and Output signal.
Q: How about the quality of the managements?
A: We have a complete quality control system, our products will be fully pre-inspection before shipping to you. We have the certification of ISO, CE, we could send the certification test of our company to you.
Q: Can you offer OEM services?
A: Yes,we support OEM and ODM products according to your requirements.
Q: What are your terms of payment and delivery time?
A: We could accept T/T, Paypal, Western Union, Credit Assurance. Generally, we will arrange the shipment within 7 days after received payment.
