Product Name: | EC Conductivity Sensor | Methed: | Four-electrode |
---|---|---|---|
Accuracy: | ±5% | Resolution: | 1uS/cm |
Power Supply: | DC 6~12V, Current <50mA | Output Signal: | Support RS-485, MODBUS Protocol |
Material: | SS316 | Customized Support: | OEM, ODM, OBM |
Warranty: | 1 Year | IP Grade: | IP68 |
High Light: | RS485 Electrical Conductivity Sensor,Agricultural Electrical Conductivity Sensor,RS485 Ph Meter Probe |

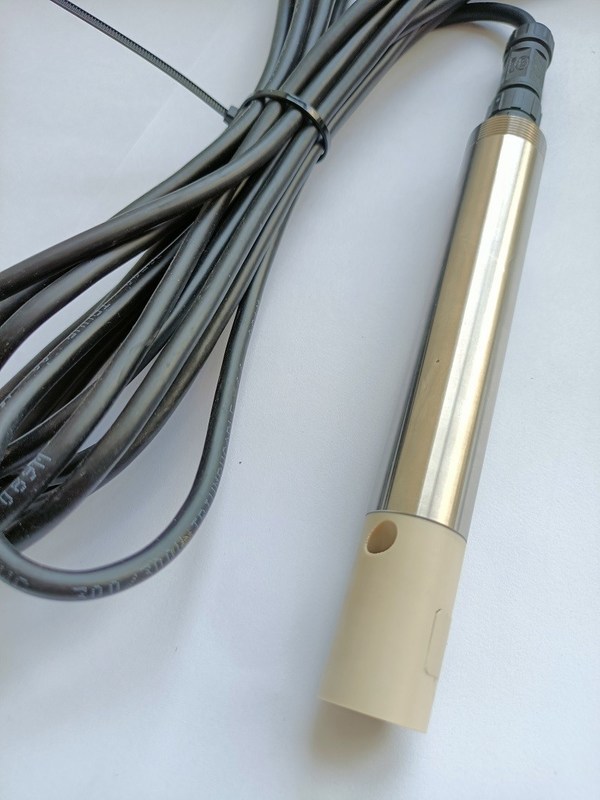

RS485 Agricultural Water PH Temperature Moisture EC Salinity Humidity Sensor Meter
Product name
|
Four-electrode conductivity sensor
|
Six-electrode conductivity sensor
|
||
Model
|
DSC480
|
DST481
|
DST482
|
|
Range
|
1uS/cm~200 mS/cm
|
1uS/cm~100 mS/cm
|
1uS/cm~100 mS/cm
|
|
Conductance accuracy
|
±3%
|
|||
Resolution
|
1uS/cm
|
|||
Response time
|
<3 sec
|
|||
Protection level
|
IP68 |
|||
Max operating pressure
|
6 bar
|
|||
Temperature range
|
0~ 50°C
|
|||
Sensor interface
|
Support RS-485, MODBUS protocol
|
|||
Installation
|
Input type
|
|||
Power supply
|
DC 6~12V, current <50mA
|
|||
Temperature Sensor
|
Built in | |||
Electrode material
|
Nickel
|
|||
Housing material
|
PEEK
|
|||
Probe cable length
|
5 meters (default), can be customized
|
|||
Size
|
Φ 22 *165mm
|
|||
Calibration
|
One or two point calibration
|
