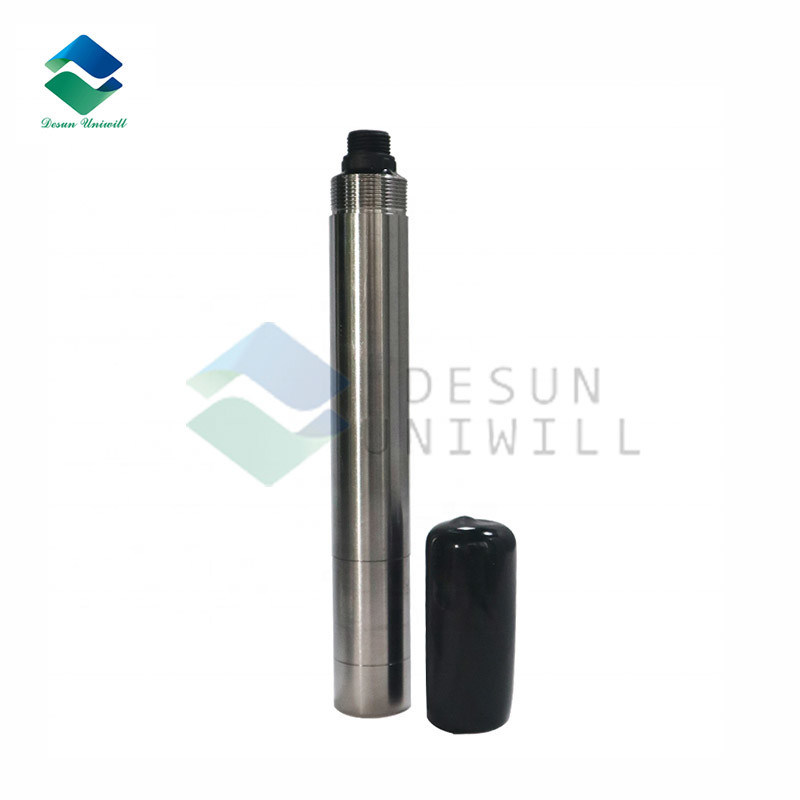

Industrial Dissolved Oxygen Sensor Seawater Salinity Luminescence Sensor

Basic Information
Place of Origin: China
Brand Name: Desun Uniwill
Certification: CE
Model Number: DS-380
Minimum Order Quantity: 1 pcs
Price: $280.00 - $400.00/ Piece
Packaging Details: Carton packaging
Delivery Time: 7~ 15 working days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1000 sets per month
Detail Information
Model: DS380 Principle: Fluorescence Analysis Method
Measuring Range: 0~20mg/L Response Time: 1-10 Seconds
Accuracy: 1% Protection Level: IP68
Installation: Submersible Temperature Sensor: 0~50°C
Temperature Accuracy: ±0.2°C Output: Support RS-485, MODBUS Protocol
Power Supply: DC 6~12V, Current <50mA Size: Φ26*155 Mm
Probe Cable Length: Default 5 M Fluorescent Cap Life: 1 Year
Maximum Working Pressure: 3bar Housing Material: SS316/Titanium Alloy
High Light:

Industrial Dissolved Oxygen Sensor 6V

,

Seawater Salinity Dissolved Oxygen Sensor

,

Dissolved Oxygen Luminescence Sensor


Product Description

Industrial Dissolved Oxygen Sensor Salinity Dissolved Oxygen in Seawater Sensor Dissolved Oxygen Luminescence Sensor



Industrial Dissolved Oxygen Sensor Brief introduction



The DS380 series of fluorescent dissolved oxygen sensors uses a new type of fluorescence lifetime technology and high performance fluorescent materials. The fluorescent dissolved oxygen sensor is based on the quenching principle of the specific fluorescence of the specific substance in physics. Blue light from a light-emitting diode (LED) illuminates the fluorescent material on the inner surface of the fluorescent cap, and the fluorescent material on the inner surface is excited to emit red light by detecting the phase difference between red and blue light and the internal calibration value. The ratio is calculated to calculate the concentration of oxygen molecules, and the final value is automatically compensated by temperature and pressure.



do sensor- desun uniwill



Features of Industrial Dissolved Oxygen Sensor:



-0-20mg/L or 0-200% saturation
-0~50 °C; IP68 protection level
-No film, no electrolyte, no polarization
-No need to consume oxygen, no flow rate
-Built-in temperature sensor, automatic temperature compensation
-Free from chemical interferences such as sulfides
-Small annual drift, fast response, and more accurate measurement
-Free of maintenance, longer application cycle and lower cost of use
-Fluor cap replacement is simple
-Support RS-485, MODBUS protocol



Technical Specifications of Industrial Dissolved Oxygen Sensor:



Item Parameters
Model DS380
Principle Fluorescence analysis method
Measuring range 0~20mg/L or 0-200% saturation
Response time 3 sec
Accuracy 1%
Protection level IP68
Installation Submersible
Temperature sensor NTC
Temperature range 0~50°C
Temperature accuracy ±0.2°C
Output Support RS-485, MODBUS protocol
Power supply DC 6~12V, current <50mA
Size Φ26*155 mm
Probe cable length Default 5 m, customized 10m, 15 m and 30 m cable
Fluorescent cap life 1 year
Maximum working pressure 3bar
Housing material SS316/Titanium alloy
