| Place of Origin: | China |
|---|---|
| Brand Name: | Desun Uniwill |
| Certification: | CE |
| Model Number: | DS-380 |
| Minimum Order Quantity: | 0~100 pcs |
| Price: | $280.00 - $360.00/ Piece |
| Packaging Details: | Carton packaging |
| Delivery Time: | 7~ 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 0~1000 pcs |
| Measuring Range: | 0~20mg/L | Response Time: | 3 Seconds |
|---|---|---|---|
| Protection Level: | IP68 | Power Supply: | DC 6~12V |
| Product Material: | POM/SS316/Titanium | Power Consumption: | < 0.5 W |
| Calibration Method: | One Or Two-point Calibration | Accuracy: | 1% |
| Maximum Working Pressure: | 6bar | Fluorescent Cap Life: | 1 Year |
| High Light: | 6bar Dissolved Oxygen Probe,Dissolved Oxygen Probe 12V,water do meter RS485 |
||

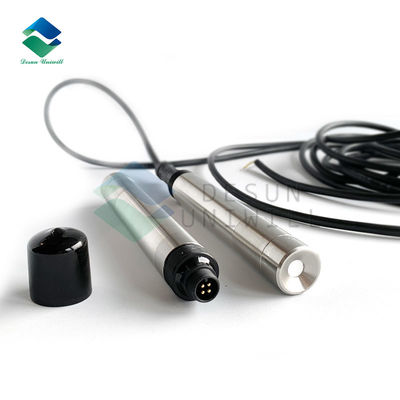

Features:
1. A new generation of fluorescence lifetime technology and high performance fluorescent materials.
2.No oxygen consumption, no flow rate limitation, no electrolyte.
3.No maintenance and calibration,no interference from hydrogen sulfide, excellent stability.
4.Built-in temperature sensor, automatic temperature compensation. RS485 output.
5.Can be networked without a controller.
Technical Parameters:
| Item | Parameters |
| Model | DS380 |
| Principle | Fluorescence analysis method |
| Measuring range | 0~20mg/L or 0-200% saturation |
| Response time | 3 sec |
| Accuracy | 1% |
| Protection level | IP68 |
| Installation | Submersible |
| Temperature sensor | NTC |
| Temperature range | 0~50°C |
| Temperature accuracy | ±0.2°C |
| Output | Support RS-485, MODBUS protocol |
| Power supply | DC 6~12V, current <50mA |
| Size | Φ26*155 mm |
| Probe cable length | Default 5 m, customized 10m, 15 m and 30 m cable |
| Fluorescent cap life | 1 year |
| Maximum working pressure | 6bar |
| product material | POM/SS316/Titanium alloy |
| Calibration method | One or Two-point calibration |
| Power consumption | < 0.5 W |
