High Precision Electrical Conductivity Sensor 6V Multi parameter Sewage Water

Basic Information
Place of Origin: China
Brand Name: Desun Uniwill
Model Number: DSC480
Minimum Order Quantity: 1
Price: Determined by the number of specific orders
Packaging Details: Carton packaging
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1000
Detail Information
Sensor Name: Digital Conductivity Sensor Measure Range: 1uS/cm-200mS/cm
Temperature Range: 0-50℃ Accuracy: ±2%
Power Supply: DC 6~12V, Current <50mA Housing Material: Stainless Steel
Principle: Four-electrode/six-electrode Technology Response Time: <2 Sec
Installation: Input Water Protection Level: IP68
Brand: Desun Uniwill Calibration: One Or Two Point Calibration
Cable: Can Be Customized Size: Φ 22 *1 40 Mm
High Light:

High Precision Electrical Conductivity Sensor

,

Electrical Conductivity Sensor 6V

,

electrical conductivity meter Sewage Water


Product Description

High Precision Conductivity Meter Multi-parameter Sewage Water analyzer EC Probe For Pools Drinking Water Aquariums

Product Description
Online Conductivity Sensor
Digital conductivity sensor adopts a new generation of four-electrode/six-electrode technology, with wide measurement range, automatic switching measurement range, built-in temperature sensor and real-time temperature compensation. It has excellent anti-pollution ability and will not cause polarization even in the harsh environment for long-term online monitoring. RS485 output, can be networked without a controller.
* Digital sensor, RS485 output, support Modbus
* Wide measurement range, automatic switching measurement range
* Built-in temperature sensor, real-time temperature compensation
* Four-electrode/six-electrode technology, no polarization

Range
1uS/cm~300 mS/cm
Conductivity accuracy
1%
Resolution
1uS/cm
Response time
<2 sec
Protection level
IP68
Max operating pressure
6bar
Temperature range
0~ 50°C
Sensor interface
Support RS-485, MODBUS protocol
Assembly
Input type
Power information
DC 5~12V, current <50mA
Temperature Sensor
NTC
Electrode material
Nickel
Jacket material
PEEK
Size
Φ 22 *140 mm
Probe cable length
5 meters (default), can be customized
Calibration
1 or 2 point calibration

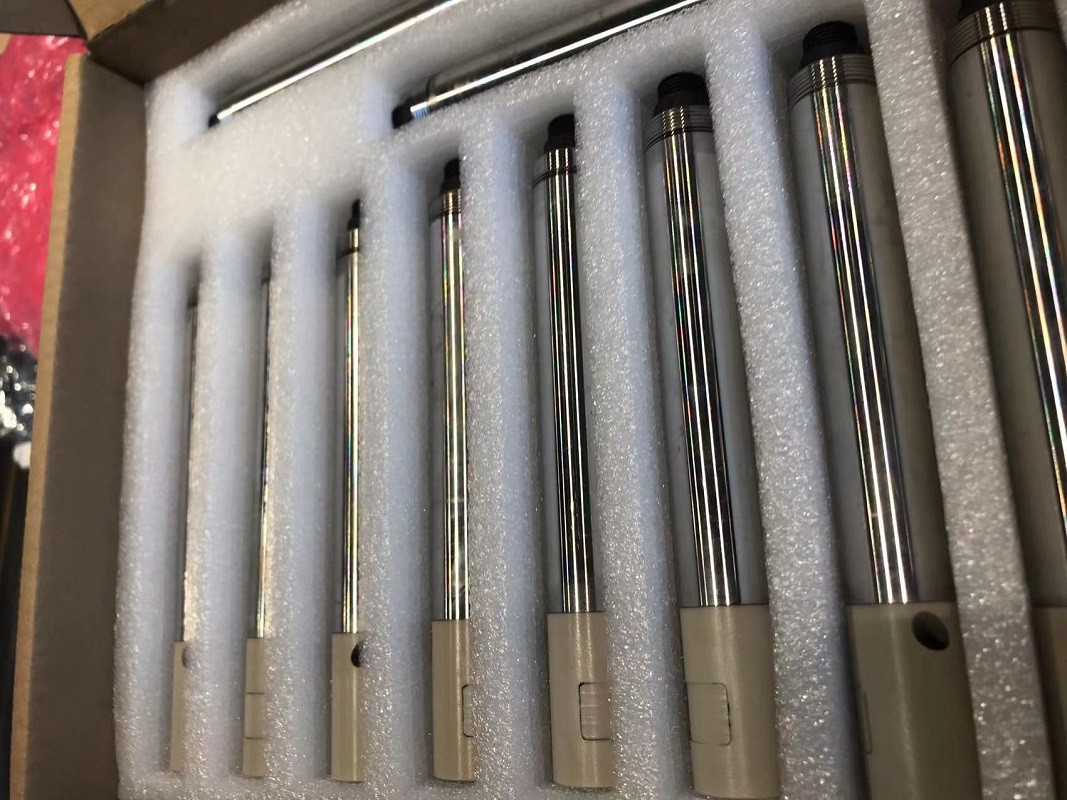

High Precision Electrical Conductivity Sensor 6V Multi parameter Sewage Water 0

Packing & Delivery
Package
Safe export carton
Delivery time
5-9 days on the way
Company Profile



Xi'an Desun Uniwill Electronic Technology Co., Ltd (Hereinafter referred to as Disen Sensing Company) is located in Xi'an High-tech Development Zone. It is a high-tech company integrating production, R&D, sales and engineering services. Relying on Xi'an's rich high-tech resources, we have carried out technical cooperation with many universities and scientific research institutions, constantly breaking through technical barriers, improving product performance, and using leading technology to provide high-quality products for the water quality monitoring industry.

We launched a wireless water quality monitoring solution based on the current rapid development of the Internet of Things technology, combining smart terminals and traditional display units through wireless transmission to achieve real-time dynamic water quality monitoring functions such as data cloud display, remote cloud control, and upper and lower limit alarms.

We are committed to the water quality monitoring industry, actively innovating and improving products, and optimizing industry application solutions. We take technology and quality as the cornerstone, honesty and service as the foundation, do a good job of water quality monitoring with our heart, and contribute to the development of the water quality monitoring industry. power. At present, the products are sold to more than 30 countries and regions overseas, and they have established their own sales network locally, cooperate with after-sales and maintenance personnel, and continue to supply water body monitoring equipment.

In 2021, we will further increase the proportion of the domestic market on the basis of innovating high-quality products and improving technical services. Increase the after-sales maintenance force in first-tier cities to provide customers with timely and effective products and services.



FAQ

Q: Can you do OEM service ?

A: We can provide the specific products needed around the world at significantly lower costs.

If you need further information regarding our OEM or Private Label programs, please contact us freely.

Q: How long is your delivery time?

A: Usually, delivery time is 10-15 days depend on the order quantity & inventory.

Q: How about your quality warranty ?

A: Normally all products are supplied with a warranty of 12 Months from the date of shipment.

Q: What is your terms of payment ?

A: Payment 100% T/T, Western Union, L/C, Trade Assurance, Credit Card ect. in advance ,before shippment.
