| Place of Origin: | China |
|---|---|
| Brand Name: | Desun Uniwill |
| Model Number: | DST420 |
| Minimum Order Quantity: | 1 |
| Price: | Determined by the number of specific orders |
| Packaging Details: | Carton packaging |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 1000 |
| Product Name: | Fiber Optic Turbidity Sensor | Range: | 0-5000 Mg/L |
|---|---|---|---|
| Accuracy: | ±5% | Resolution: | 0.1mg/L |
| Output Signal: | Support RS-485, MODBUS Protocol | Power Supply: | DC 6~12V, Current <50mA (when Not Cleaned) |
| IP Grade: | IP 68 | Principle: | 90° Scattered Light |
| Housing Material: | SS316 | Installation: | Submersible Type, Circulation Type |
| Size: | Φ45*175.8 Mm | Sensor Cable Length: | 5 Meters (default), Can Be Customized |
| Highlight: | SS316 Water Quality Analyzer,Water Quality Analyzer Anti Interference,Water Turbidity Meter Anti Interference |
||
Water Quality Analyzer Water Quality Testing Equipment Turbidity Meter Online Analyzer TP Tester
Digital sensor, RS-485 output, support MODBUS

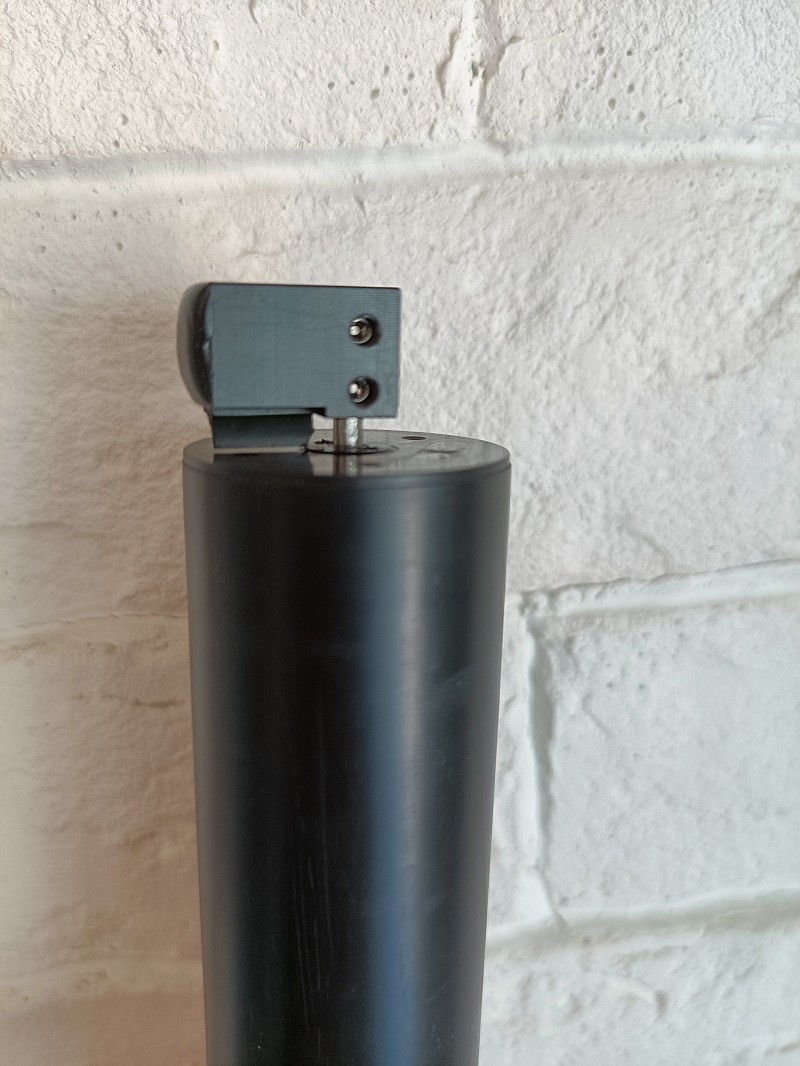

With automatic cleaning brush to prevent contamination and eliminate air bubbles
Strong anti-interference ability, free from ambient light and chromaticity
90° scattered light principle, with fiber optic technology for better repeatability
Before installation, please check the appearance of the cables for damage, and disperse the cables.
1. When using the throw-in sensor, avoid the sensor hitting the wall or other facilities caused by water flow. If the water flow rate is too fast, the sensor must be fixed.
2. There should be no obstructions in front of the measurement. For example, fluorescence sensors should be avoided from light.
3. The water depth position where the sensor is installed should not exceed 2 meters from the horizontal, and the installation should be based on the fluctuation of the water flow. The water depth of the location should not be less than 30 cm. (Adjustable according to the measured water body)
4. The sensor should be installed in a location where there is no air bubbles to prevent air bubbles from affecting the measurement data of the sensor.
5. Do not use the sensor's own cable to hoist the sensor, and install a cable protection device to prevent excessive tension between the cable and the sensor, causing the cable to break.
6. The sensor should not be installed with the measuring side facing upwards, it can be installed vertically downwards or horizontally.
7. If you use this product in the water diversion tank, please consult the company's sales staff to confirm the specific installation requirements.
| Product | Fiber optic turbidity sensor | Self-cleaning turbidity sensor |
| model | DST410 | DST420 |
| principle | 90° scattered light | |
| Range | 0 to 4000 NTU | |
| Precision | 0.1NTU | |
| Resolution | <5% or 0.3NTU | |
| Protection level | Ip68 | |
| Sensor interface | Support RS-485, MODBUS protocol | |
| assembly | Input type | |
| Power information | DC 6~12V, current <50mA (when not cleaned) | |
| size | Φ45*175.8 mm | |
| Probe cable length | 10 meters (default), can be customized | |
| Housing material | POM/SS316 | |
| Optical window | optical fiber | |
| Self-cleaning system | no | Have |
Q: Is your company a manufacturer??
A: Yes,we are a professional manufacturer of online water quality monitoring products: oil in water sensor/ DO sensor/ NH4-N sensor / ORP / COD sensor / Blue-green algae sensor /Conductivity sensor ect.
Q: What parameters do you need for product selection?
A: Range, Power supply and Output signal.
Q: Can you offer OEM services?
A: Yes,we support OEM and ODM products according to your requirements.
Q: What are your terms of payment and delivery time?
A: We could accept T/T, Paypal, Western Union, Credit Assurance.
Q: How about warranty?
A: 12 months warranty.
