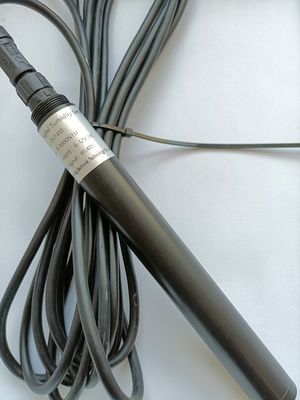

Portable Water Turbidity Sensor For Turbidity Content High Range 4000NTU

Basic Information
Brand Name: Desun Uniwill
Model Number: DST410
Minimum Order Quantity: 1
Price: Determined by the number of specific orders
Packaging Details: Carton packaging
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1000
Detail Information
Place Of Origin: Shaanxi, China Product Name: Fiber Optic Turbidity Sensor
Mesuring Range: 0-4000NTU Accuracy: ±5%
Resolution: 0.1NTU Output Signal: RS-485
Power Supply: DC 6~12V, Current <50mA Assembly: Input Type
Method: 90° Scattered Light Material: POM/SS316
Brand: Desun Uniwill Cable Length: 5 Meters (default), Can Be Customized
Self-cleaning System: No Optical Window: Have
High Light:

Portable Water Turbidity Sensor

,

Water Turbidity Sensor High Range

,

turbidity sensor probe 4000NTU


Product Description

Portable Turbidity Instrument for Measuring the Content of Turbidity in Water Turbidity Water Analysis High Range 0~4000

Product Description
Our turbidity sensors use fiber optic technology to provide superior repeatability and stability, and are less susceptible to ambient light. The automatic cleaning brush with the sensor can effectively eliminate air bubbles and reduce the influence of contamination on the measurement. It has a longer maintenance period and maintains excellent stability for long-term online use.

Install

Before installation, please check the appearance of the cables for damage, and disperse the cables.

1. The sensor should be installed in a location where there is no air bubbles to prevent air bubbles from affecting the measurement data of the sensor.

2. Do not use the sensor's own cable to hoist the sensor, and install a cable protection device to prevent excessive tension between the cable and the sensor, causing the cable to break.

3. The sensor should not be installed with the measuring side facing upwards, it can be installed vertically downwards or horizontally.



Technical parameter
Product
Fiber Optic Turbidity Sensor
Self-cleaning Fiber Optic Turbidity Sensor
Model
DST410
DST420
Principle
90° scattered light
Range
0~4000NTU
Accuracy
±5%
Resolution
0.1NTU
Protection level
IP68
Output signal
Support RS-485, MODBUS protocol
Power supply
DC 6~12V, current <50mA (when not cleaned)
Size
Φ25*175.8 mm
Φ32*161mm
Housing material
POM/SS316
Probe cable length
5 meters (default), can be customized
Max working pressure
1 bar
Self-cleaning system
No
Have



Application



Portable Water Turbidity Sensor For Turbidity Content High Range 4000NTU 0

Portable Water Turbidity Sensor For Turbidity Content High Range 4000NTU 1

Our Company

Portable Water Turbidity Sensor For Turbidity Content High Range 4000NTU 2

Xi'an Desun Uniwill Electronic Technology Co., Ltd (Hereinafter referred to as Disen Sensing Company) is located in Xi'an High-tech Development Zone. It is a high-tech company integrating production, R&D, sales and engineering services. Relying on Xi'an's rich high-tech resources, we have carried out technical cooperation with many universities and scientific research institutions, constantly breaking through technical barriers, improving product performance, and using leading technology to provide high-quality products for the water quality monitoring industry.

In 2022, we will further increase the proportion of the domestic market on the basis of innovating high-quality products and improving technical services. Increase the after-sales maintenance force in first-tier cities to provide customers with timely and effective products and services.

FAQ

Q: Is your company a manufacturer??
A: Yes,we are a professional manufacturer of online water quality monitoring products: oil in water sensor/ DO sensor/ NH4-N sensor / ORP / COD sensor / Blue-green algae sensor /Conductivity sensor /TDS / TSS /MLSS,ect.
Q: Can you offer OEM services?
A: Yes,we support OEM and ODM products according to your requirements.

Q: What are your terms of payment and delivery time?
A: We could accept T/T, Paypal, Western Union, Credit Assurance. Generally, we will arrange the shipment within 7 days after received payment.
Q: How about warranty?
A: 12 months warranty.
