| Place of Origin: | China |
|---|---|
| Brand Name: | Desun Uniwill |
| Model Number: | DS-380 |
| Minimum Order Quantity: | 0~100 pcs |
| Price: | $280.00 - $400.00/ Piece |
| Packaging Details: | Carton packaging |
| Delivery Time: | 7~ 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 0~1000 pcs |
| Principle: | Fluorescence Analysis Method | Measuring Range: | 0~20mg/L Or 0-200% Saturation |
|---|---|---|---|
| Response Time: | 3 Seconds | Accuracy: | 1% |
| Protection Level: | Ip68 | Output: | RS-485, MODBUS Protocol |
| Power Supply: | DC 6~12V, Current <50mA | Cable Length: | Default 5 M |
| Housing Material: | SS316/Titanium Alloy | ||
| High Light: | Online Water Dissolved Oxygen Sensor,Water Dissolved Oxygen Sensor Modbus Protocol,water o2 sensor Ip68 Fluorescent |
||

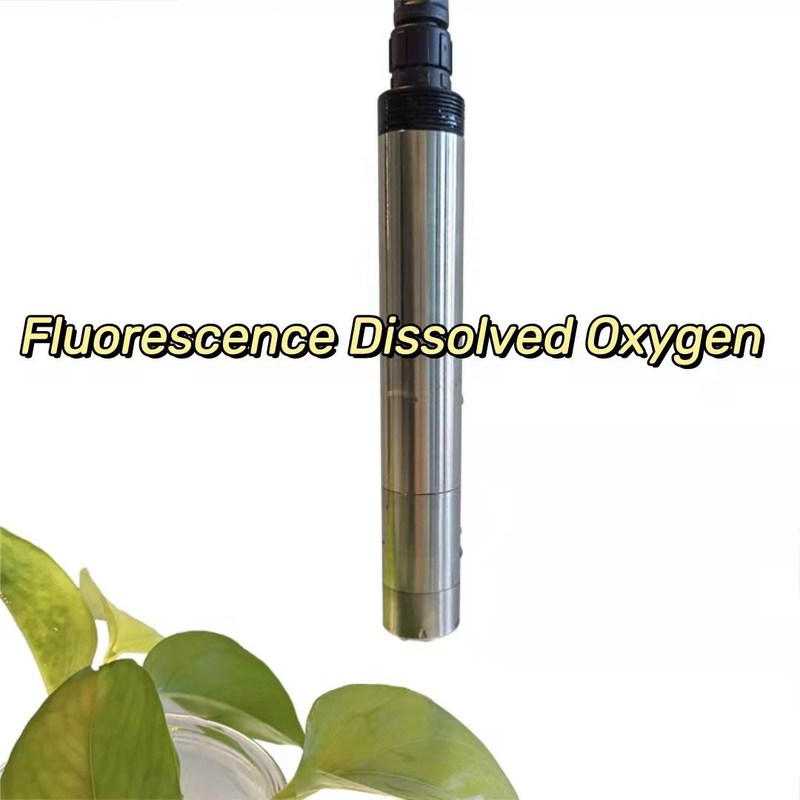

Online Fluorescence Dissolved Oxygen Tester probe modbus protocol fluorescent material
Description
Blue light from a light-emitting diode (LED) illuminates the fluorescent material on the inner surface of the fluorescent cap, and the fluorescent material on the inner surface is excited to emit red light by detecting the phase difference between red and blue light and the internal calibration value.
Features
* 0-20mg/L or 0-200% saturation
* 0~50 °C; IP68 protection level
* No need to consume oxygen, no flow rate
* Built-in temperature sensor, automatic temperature compensation
* Free from chemical interferences such as sulfides
* Small annual drift, fast response, and more accurate measurement
* Free of maintenance, longer application cycle and lower cost of use
*Support RS-485, MODBUS protocol
|
Item |
Parameters |
|
Model |
DS380 |
|
Principle |
Fluorescence analysis method |
|
Measuring range |
0~20mg/L or 0-200% saturation |
|
Response time |
3 sec |
|
Accuracy |
1% |
|
Protection level |
IP68 |
|
Installation |
Submersible |
|
Temperature sensor |
NTC |
|
Temperature range |
0~50°C |
|
Temperature accuracy |
±0.2°C |
|
Output |
Support RS-485, MODBUS protocol |
|
Power supply |
DC 6~12V, current <50mA |
|
Size |
Φ26*155 mm |
|
Probe cable length |
Default 5 m, customized 10m, 15 m and 30 m cable |
|
Fluorescent cap life |
1 year |
|
Maximum working pressure |
3bar |
|
Housing material |
SS316/Titanium alloy |
