RS485 Digital Water Nitrate Sensor 4-20 Nitrate Probe For Water Quality Monitoring Test Instruments

Basic Information
Place of Origin: China
Brand Name: Desun Uniwill
Certification: CE
Model Number: DSX260
Minimum Order Quantity: 0-100pcs
Price: According to the specific quantity
Packaging Details: carton packaging
Delivery Time: 7-15 working days
Payment Terms: L/C, D/A, D/P, T/T
Detail Information
Product Name: Online Nitrate Sensor Principle: Ion Selective Eectrode Method
Nitrate Range: 0~100mg/l NO3- Nitrate Resolution: 0.1 Mg/L
Nitrate Accuracy: 5% FS PH Accuracy: ±0.1
PH Range: 4-10 Power Supply: 5~12vdc
Housing Material: POM Output Signal: RS485
Cable Length: 5m
High Light:

RS485 Digital Water Nitrate Sensor

,

IP68 Water Quality Monitoring Sensor

,

Nitrate Probe Water Sensor


Product Description

China Factory Rs485 Digital Water Nitrate Sensor 4-20 Nitrate Probe for Water Quality Monitoring Test Instruments Type

Products Description



A digital water nitrate sensor is a device designed to measure the concentration of nitrate ions (NO3-) in water. It is commonly used in applications such as environmental monitoring, agriculture, water quality analysis, and research.



Principle

The online nitrate sensor is used to test the content of nitrate in water. It can be fast, simple, accurate, and economical, and can be monitored online in real-time and integrated nitrate ion, pH, and reference electrode to compensate for the pH and temperature in the water body automatically. It can be directly installed, more economical and environmentally friendly, convenient and fast. Using RS485 output supports Modbus, easy to integrate.



Features

* Digital sensor, RS-485 output, support MODBUS
* More economical and environmentally friendly, can be monitored online in real time
* Automatically compensate pH and temperature in water
* High precision and high stability.



Technical parameters

Item
Specifications
Product Name
Online nitrate sensor
Nitrate range
0~1000mg/l NO3-
Nitrate precision
5%
Nitratere solution
0.1 mg/L
pH range
4-10
pH accuracy
±0.1
pH resolution
0.01
Protection level
IP68
Deepest depth
10 meters underwater
Temperature range
0 ~ 50 °C
Sensor interface
Support RS-485, MODBUS protocol
Installation
Input type, Circulation type
Power information
DC8~26VDC±10%, current <50mA
Probe cable length
5 meters (default), can be customized
Housing material
POM

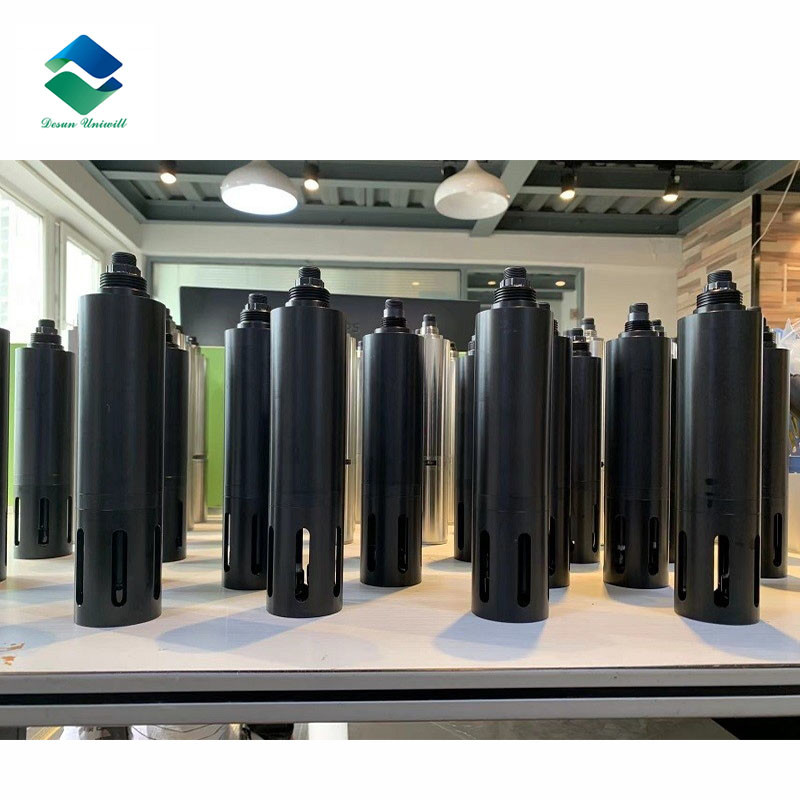

Products Show





Online Optical Nitrate Sensor

Company Information

Desun Uniwill specializes in manufacturing all kinds of water quality sensors. We are a professional electrochemical instrumentation and electrode manufacturer combined with R&D, production, and sales. We have a professional production process and CNC machining center, which can meet various customized needs of customers. At present, the monthly production capacity can reach 1,500 sensors.

Our main products include dissolved oxygen sensor, PH sensor, ORP sensor, turbidity sensor, conductivity sensor, COD sensor, ammonia nitrogen sensor, sludge concentration sensor, chlorophyll sensor, blue-green algae sensor, oil in water sensor, nitrate sensor, multi-parameter water quality sensor, etc. With an experienced and professional team, we have exported our products to more than 30 countries and regions worldwide, especially in South America and Southeast Asia.

Desun Uniwill Water quality sensors are designed to provide accurate and reliable measurements of water quality parameters, allowing for effective monitoring and management of water resources. They are commonly used in various industries and applications, including environmental monitoring, water treatment plants, aquaculture, industrial processes, and research laboratories.
