DSX260 NO3 Online Optical Nitrate Sensor Test Instrument For Water Treatment Monitoring

Basic Information
Place of Origin: China
Brand Name: Desun Uniwill
Certification: CE
Model Number: DSX260
Minimum Order Quantity: 0-100pcs
Price: According to the specific quantity
Packaging Details: carton packaging
Delivery Time: 7-15 working days
Payment Terms: L/C, D/A, D/P, T/T
Detail Information
Product Name: Online Nitrate Sensor Principle: Ion Selective Eectrode Method
Nitrate Range: 0~100mg/l NO3- Nitrate Resolution: 0.1 Mg/L
Nitrate Accuracy: 5% FS PH Accuracy: ±0.1
PH Range: 4-10 Power Supply: 5~12vdc
Housing Material: POM Output Signal: RS485
Cable Length: 5m
High Light:

NO3 Online Optical Nitrate Sensor

,

Water Treatment Monitoring Nitrate Sensor


Product Description

DSX260 NO3 Online Optical Nitrate Sensor Test Instrument For Water Treatment Monitoring

Products Description

Principle

The online nitrate sensor is used to test the content of nitrate in water. It can be fast, simple, accurate, and economical, and can be monitored online in real-time and integrated nitrate ion, pH, and reference electrode to compensate for the pH and temperature in the water body automatically. It can be directly installed, more economical and environmentally friendly, convenient and fast. Using RS485 output supports Modbus, easy to integrate.



Features

* Digital sensor, RS-485 output, support MODBUS
* More economical and environmentally friendly, can be monitored online in real time
* Automatically compensate pH and temperature in water
* High precision and high stability.



Technical parameters

Item
Specifications
Product Name
Online nitrate sensor
Nitrate range
0~1000mg/l NO3-
Nitrate precision
5%
Nitratere solution
0.1 mg/L
pH range
4-10
pH accuracy
±0.1
pH resolution
0.01
Protection level
IP68
Deepest depth
10 meters underwater
Temperature range
0 ~ 50 °C
Sensor interface
Support RS-485, MODBUS protocol
Installation
Input type, Circulation type
Power information
DC8~26VDC±10%, current <50mA
Probe cable length
5 meters (default), can be customized
Housing material
POM



Products Show

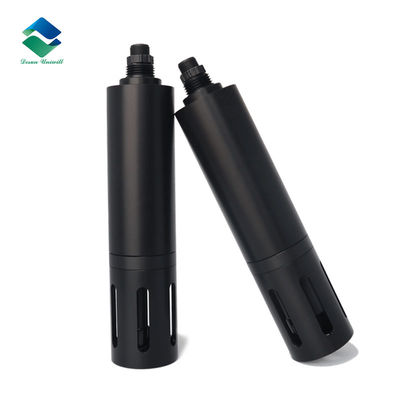

Online Optical Nitrate Sensor
