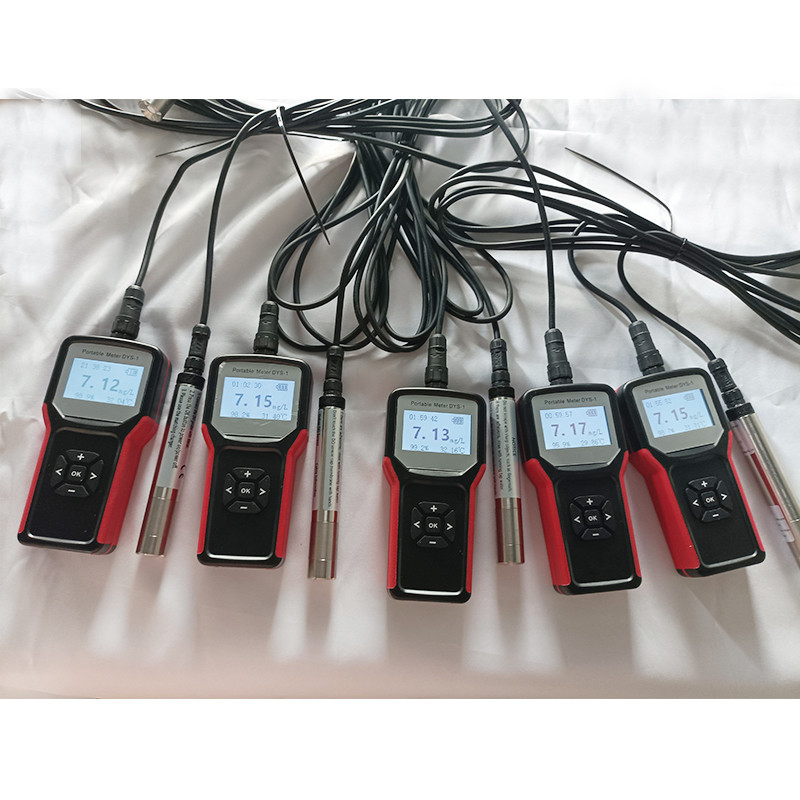

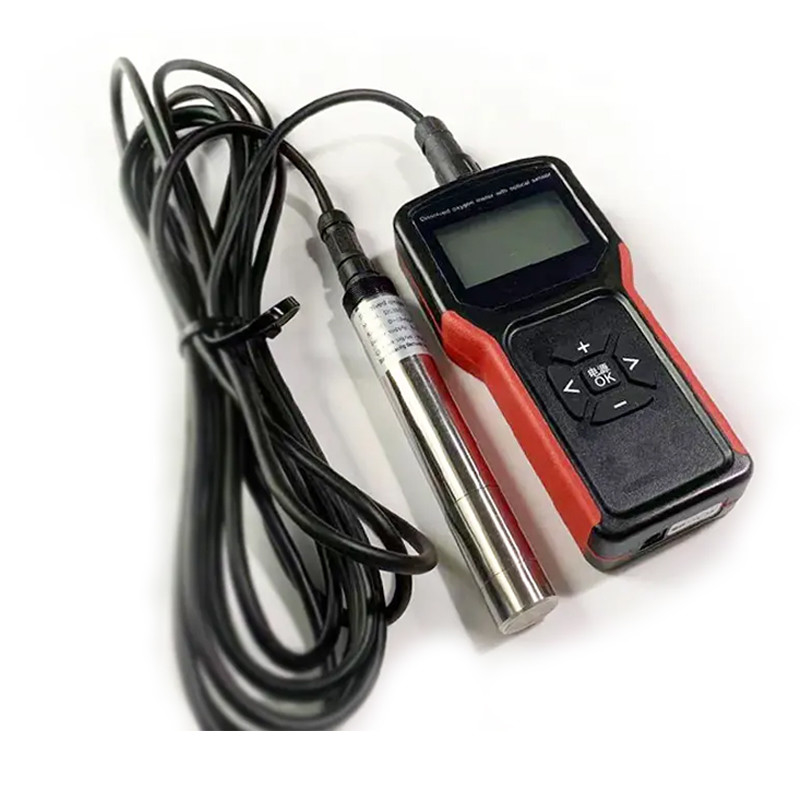

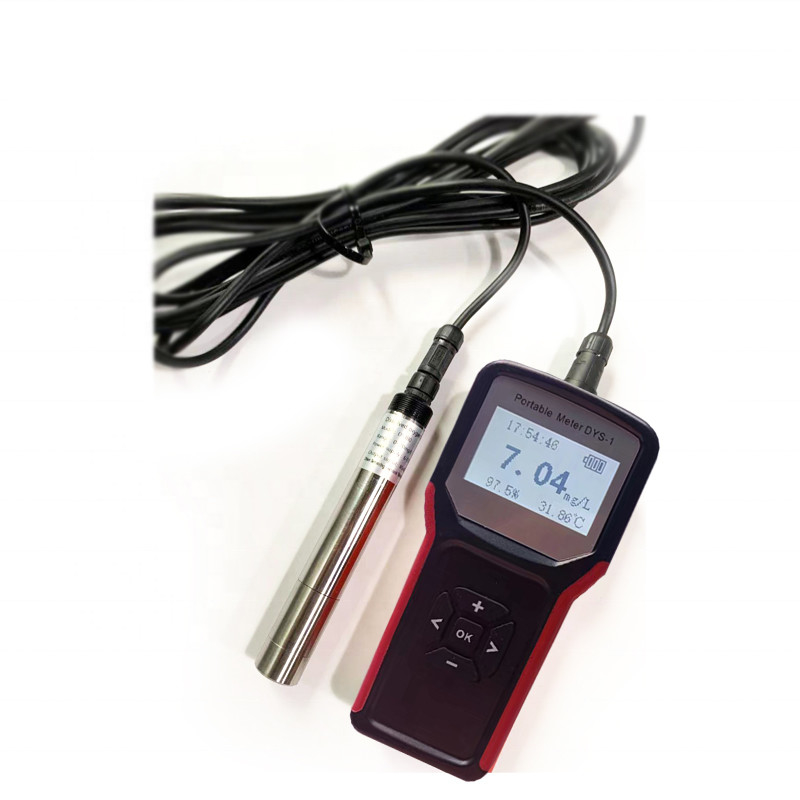

High Accuracy Portable Handheld Do Meter For Freshwater Aquaculture Water Quality Tester

Basic Information
Place of Origin: China
Brand Name: Desun Uniwill
Certification: CE
Model Number: DYS-1
Minimum Order Quantity: 0~100 pcs
Price: $ 425.00 - $ 535.00/ Set
Packaging Details: Carton packaging
Delivery Time: 7~ 15 working days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 0~1000 pcs
Detail Information
Model: DYS-1 D.O. Range: 0~20mg/L Or 0~200%
DO Sensor: Optical DO Sensor D.O. Accuracy: 1%
Dissolved Oxygen Sensor Drift: <1%per Year Sensor Material: Stainless Steel/Titanium
Temp. Range: 0~40℃ Temp. Accuracy: ±0.2℃
Working Temperature: -20℃~50℃ Material Supplied: 3v~6v
Power: <0.5w Signal Output: RS-485
High Light:

High Accuracy Dissolved Oxygen Meter 6v

,

RS485 Portable Handheld Do Meter

,

Freshwater Aquaculture Do Meter


Product Description

High Accuracy Portable Handheld do meter for Freshwater Aquaculture Water Quality Tester



When using a portable dissolved oxygen meter, it's important to follow proper calibration procedures, handle the sensor with care, and clean it as instructed by the manufacturer to maintain accurate and reliable measurements. Additionally, always store the meter properly when not in use to prolong its lifespan.



Product Description

The handheld device can be used for monitoring of dissolved oxygen, temperature and PH in water, and can meet the requirements of portable accurate water quality measurement.

Dissolved Oxygen Meter For Water Test

Signal output: RS-485
The screen uses a custom backlight, which can display dissolved oxygen, temperature, PH, and a real-time clock.

Manual calibration of salinity, air pressure, and KB value to ensure accurate measurement value.

Features

* 0-20mg/L or 0-200% saturation
* 0~50 °C; IP68 protection level
* No film, no electrolyte, no polarization
* No need to consume oxygen, no flow rate
* Built-in temperature sensor, automatic temperature compensation
* Free from chemical interferences such as sulfides
* Small annual drift, fast response, and more accurate measurement
* Free of maintenance, longer application cycle and lower cost of use
* Fluor cap replacement is simple
*Support RS-485, MODBUS protocol

Technical parameters
Model
Fluorescent dissolved oxygen sensor
Measuring Range
0-20mg/L or 0 ≤ 200% saturation
Response time
3min
Precision
± 1%
Sensor drift
<1% per year
Temperature range
0~50℃
Temperature precision
± 0.5℃
Calibration method
One or Two-point calibration
output method
RS-485 (Modbus/ RTU )
Temperature sensor
NTC
Housing diameter
22mm
Housing length
188.3
Cable length
10 m, in addition to the customer, 5 m, 15 m and 30 m cables.
Power consumption
< 0.5 W
power supply
DC6~12v +/-5%, current<50mA
Protection level
IP68
Housing Material
POM

Dissolved Oxygen Meter







Company Information

Desun Uniwill specializes in manufacturing all kinds of water quality sensors. We are a professional electrochemical instrumentation and electrode manufacturer combined with R&D, production, and sales. We have a professional production process and CNC machining center, which can meet various customized needs of customers. At present, the monthly production capacity can reach 1,500 sensors.

Our main products include dissolved oxygen sensor, PH sensor, ORP sensor, turbidity sensor, conductivity sensor, COD sensor, ammonia nitrogen sensor, sludge concentration sensor, chlorophyll sensor, blue-green algae sensor, oil in water sensor, nitrate sensor, multi-parameter water quality sensor, etc. With an experienced and professional team, we have exported our products to more than 30 countries and regions worldwide, especially in South America and Southeast Asia.

Desun Uniwill Water quality sensors are designed to provide accurate and reliable measurements of water quality parameters, allowing for effective monitoring and management of water resources. They are commonly used in various industries and applications, including environmental monitoring, water treatment plants, aquaculture, industrial processes, and research laboratories.
