Portable Online Oxygen Meter Optical SS316 Probe Do Meter 12V

Basic Information
Place of Origin: China
Brand Name: Desun Uniwill
Model Number: DS-380
Minimum Order Quantity: 0~100 pcs
Price: $280.00 - $360.00/ Piece
Packaging Details: Carton packaging
Delivery Time: 7~ 15 working days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 0~1000 pcs
Detail Information
Measuring Range: 0~20mg/L Response Time: 3 Seconds
Protection Level: IP68 Power Supply: DC 6~12V
Product Material: POM/SS316/Titanium Power Consumption: < 0.5 W
Calibration Method: One Or Two-point Calibration Accuracy: 1%
Maximum Working Pressure: 6bar Fluorescent Cap Life: 1 Year
High Light:

Online Oxygen Meter Optical


Online Oxygen Meter SS316


Probe Do Meter 12V

Product Description

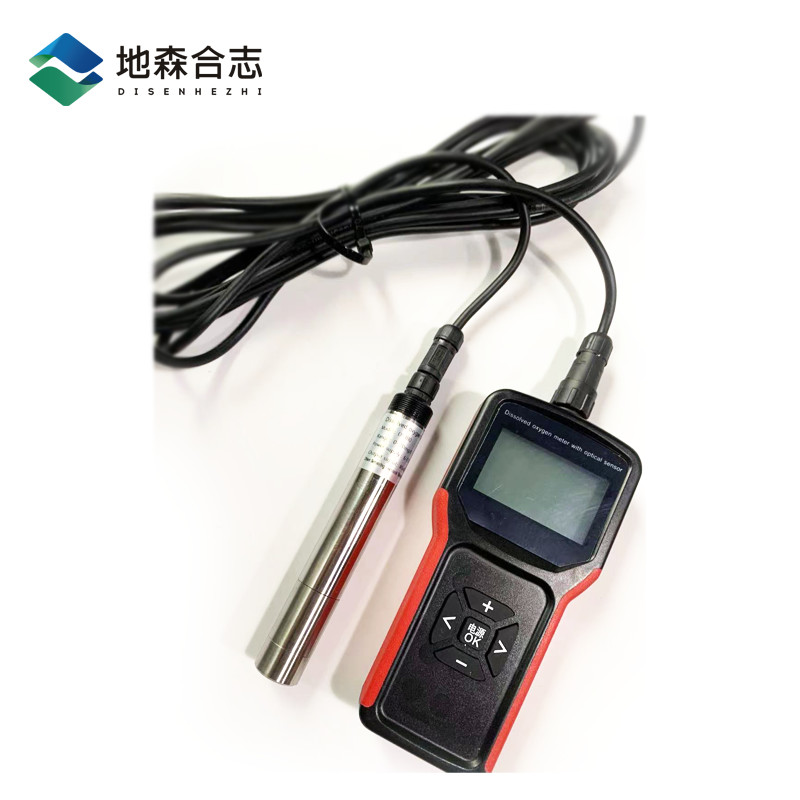

Portable Online Optical SS316 Dissolved Oxygen Sensor Probe Detector water monitoring systems


Portable dissolved oxygen meter is highlighted by ultra-low power consumption single-chip computer measurement and control, low power consumption, high reliability, intelligent measurement, using polar spectrum measurement, no need to replace the oxygen film.

With reliable, easy to operate (one-handed operation) and other characteristics; the instrument can display two kinds of measurement results indication of dissolved oxygen concentration, mg/L (ppm) and oxygen saturation percentage (%)
The temperature of the measured medium can be measured at the same time.



DO Meter



Item Parameters
Model DS380
Principle Fluorescence analysis method
Measuring range 0~20mg/L or 0-200% saturation
Response time 3 sec
Accuracy 1%
Protection level IP68
Installation Submersible
Temperature sensor NTC
Temperature range 0~50°C
Temperature accuracy ±0.2°C
Output Support RS-485, MODBUS protocol
Power supply DC 6~12V, current <50mA
Size Φ26*155 mm
Probe cable length Default 5 m, customized 10m, 15 m and 30 m cable
Fluorescent cap life 1 year
Maximum working pressure 3bar
Housing material SS316/Titanium alloy
