4 - 20ma Online Fluorescence Dissolved Oxygen Meter Controller DO Sensor For Waste Water

Basic Information
Place of Origin: China
Brand Name: Desun Uniwill
Certification: CE
Model Number: DYS-1
Minimum Order Quantity: 0~100 pcs
Price: $ 425.00 - $ 535.00/ Set
Packaging Details: Carton packaging
Delivery Time: 7~ 15 working days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 0~1000 pcs
Detail Information
Model: DYS-1 D.O. Range: 0~20mg/L Or 0~200%
DO Sensor: Optical DO Sensor D.O. Accuracy: 1%
Dissolved Oxygen Sensor Drift: <1%per Year Sensor Material: Stainless Steel/Titanium
Temp. Range: 0~40℃ Temp. Accuracy: ±0.2℃
Working Temperature: -20℃~50℃ Material Supplied: 3v~6v
Power: <0.5w Signal Output: RS-485
High Light:

Online Fluorescence Dissolved Oxygen Meter

,

Waste Water Optical DO Meter

,

20ma Dissolved Oxygen Meter


Product Description

4-20ma Online Fluorescence Dissolved Oxygen Meter Controller DO Meter with Sensor for Waste Water



A fish farm dissolved oxygen meter is a device specifically designed for monitoring and measuring the dissolved oxygen levels in fish farm systems. It helps fish farmers maintain optimum dissolved oxygen levels to ensure the health and well-being of the aquatic organisms.



When selecting a dissolved oxygen meter for a fish farm, consider the following factors: Probe Type, Measurement Range, Accuracy and Precision, Calibration, Display and User Interface, Data Storage and Connectivity, Battery Life, Durability, Cost. Taking these factors into account, you can find a suitable dissolved oxygen meter for your fish farm that meets your specific requirements and allows for accurate and reliable dissolved oxygen monitoring.



Product Description

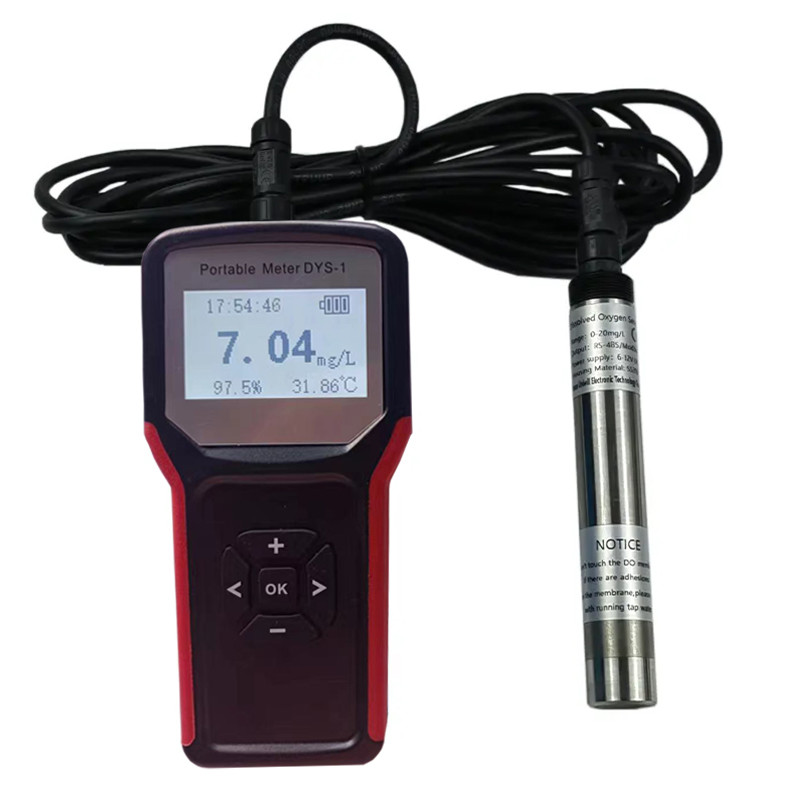

The handheld device can be used for monitoring of dissolved oxygen, temperature and PH in water, and can meet the requirements of portable accurate water quality measurement.

Dissolved Oxygen Meter For Water Test

Signal output: RS-485
The screen uses a custom backlight, which can display dissolved oxygen, temperature, PH, and a real-time clock.

Manual calibration of salinity, air pressure, and KB value to ensure accurate measurement value.

Features

* 0-20mg/L or 0-200% saturation
* 0~50 °C; IP68 protection level
* No film, no electrolyte, no polarization
* No need to consume oxygen, no flow rate
* Built-in temperature sensor, automatic temperature compensation
* Free from chemical interferences such as sulfides
* Small annual drift, fast response, and more accurate measurement
* Free of maintenance, longer application cycle and lower cost of use
* Fluor cap replacement is simple
*Support RS-485, MODBUS protocol

Technical parameters
Model
Fluorescent dissolved oxygen sensor
Measuring Range
0-20mg/L or 0 ≤ 200% saturation
Response time
3min
Precision
± 1%
Sensor drift
<1% per year
Temperature range
0~50℃
Temperature precision
± 0.5℃
Calibration method
One or Two-point calibration
output method
RS-485 (Modbus/ RTU )
Temperature sensor
NTC
Housing diameter
22mm
Housing length
188.3
Cable length
10 m, in addition to the customer, 5 m, 15 m and 30 m cables.
Power consumption
< 0.5 W
power supply
DC6~12v +/-5%, current<50mA
Protection level
IP68
Housing Material
POM

Online Fluorescence Dissolved Oxygen Meter
