Digital Aquarium Dissolved Oxygen Ppm Meter Aeration Tank DO Meter

Basic Information
Place of Origin: China
Brand Name: Desun Uniwill
Certification: CE
Model Number: DYS-1
Minimum Order Quantity: 0~100 pcs
Price: $ 425.00 - $ 535.00/ Set
Packaging Details: Carton packaging
Delivery Time: 7~ 15 working days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 0~1000 pcs
Detail Information
Model: DYS-1 D.O. Range: 0~20mg/L Or 0~200%
DO Sensor: Optical DO Sensor D.O. Accuracy: 1%
Dissolved Oxygen Sensor Drift: <1%per Year Sensor Material: Stainless Steel/Titanium
Temp. Range: 0~40℃ Temp. Accuracy: ±0.2℃
Working Temperature: -20℃~50℃ Material Supplied: 3v~6v
Power: <0.5w Signal Output: RS-485
High Light:

Digital Dissolved Oxygen Ppm Meter

,

Aquarium Dissolved Oxygen Ppm Meter

,

Aeration Tank DO Meter


Product Description

Cheap Digital Aquarium Dissolved Oxygen ppm Meter Factory Price Aeration Tank DO Meter



An optical DO (Dissolved Oxygen) meter is a device commonly used in aquaculture to measure the amount of oxygen dissolved in water. This measurement is crucial for monitoring the health and well-being of aquatic organisms. An optical DO meter utilizes optical sensors to measure the luminescence decay of a special fluorescent dye. The decay of the dye is related to the concentration of dissolved oxygen in the water sample. Make sure to compare different models and brands, read reviews, and consult with experts or other aquaculture professionals to find the best optical DO meter for your specific needs in aquaculture.







Product Description

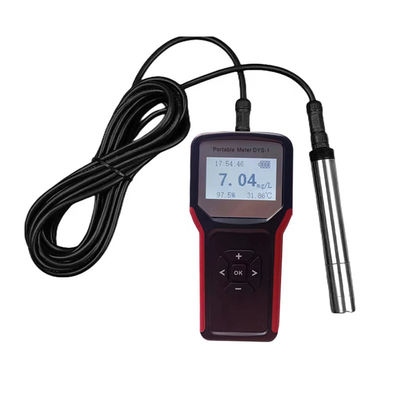

The handheld device can be used for monitoring of dissolved oxygen, temperature and PH in water, and can meet the requirements of portable accurate water quality measurement.

Dissolved Oxygen ppm Meter

Signal output: RS-485
The screen uses a custom backlight, which can display dissolved oxygen, temperature, PH, and a real-time clock.

Manual calibration of salinity, air pressure, and KB value to ensure accurate measurement value.

Features

* 0-20mg/L or 0-200% saturation
* 0~50 °C; IP68 protection level
* No film, no electrolyte, no polarization
* No need to consume oxygen, no flow rate
* Built-in temperature sensor, automatic temperature compensation
* Free from chemical interferences such as sulfides
* Small annual drift, fast response, and more accurate measurement
* Free of maintenance, longer application cycle and lower cost of use
* Fluor cap replacement is simple
*Support RS-485, MODBUS protocol

Technical parameters
Model
Fluorescent dissolved oxygen sensor
Measuring Range
0-20mg/L or 0 ≤ 200% saturation
Response time
3min
Precision
± 1%
Sensor drift
<1% per year
Temperature range
0~50℃
Temperature precision
± 0.5℃
Calibration method
One or Two-point calibration
output method
RS-485 (Modbus/ RTU )
Temperature sensor
NTC
Housing diameter
22mm
Housing length
188.3
Cable length
10 m, in addition to the customer, 5 m, 15 m and 30 m cables.
Power consumption
< 0.5 W
power supply
DC6~12v +/-5%, current<50mA
Protection level
IP68
Housing Material
POM

Dissolved Oxygen Meter
