| Place of Origin: | China |
|---|---|
| Brand Name: | Desun Uniwill |
| Certification: | CE |
| Model Number: | DYS-1 |
| Minimum Order Quantity: | 0~100 pcs |
| Price: | $280.00 - $400.00/ Piece |
| Packaging Details: | Carton packaging |
| Delivery Time: | 7~ 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 0~1000 pcs |
| Measuring Range: | 0~20mg/L Or 0-200% Saturation | Response Time: | 3 Seconds |
|---|---|---|---|
| Accuracy: | 1% | Protection Level: | IP68 |
| Installation: | Submersible | Temperature Sensor: | NTC |
| Temperature Range: | 0~50°C | Temperature Accuracy: | ±0.2°C |
| Output: | RS-485, MODBUS Protocol | Probe Cable Length: | Default 5 M |
| High Light: | Optical Oxyguard Oxygen Meter,Online Dissolved Oxygen Meter,Dissolved Oxyguard Oxygen Meter |
||
The cost of dissolved oxygen sensors and meters varies depending on several factors such as the type, features, and brand. Electrochemical sensors are the most commonly used and have a moderate cost range of $50 to $1,000, while optical sensors are more expensive, with prices ranging from $500 to $2,500. The cost of a basic handheld dissolved oxygen meter can range from $100 to $300, while more advanced models can cost up to $1,000 or more. The factors that affect the cost include the type of sensor, brand, accuracy, durability, additional features, maintenance, and calibration requirements. When purchasing a dissolved oxygen sensor and meter, it is essential to consider these factors to ensure that you get the most value for your money.

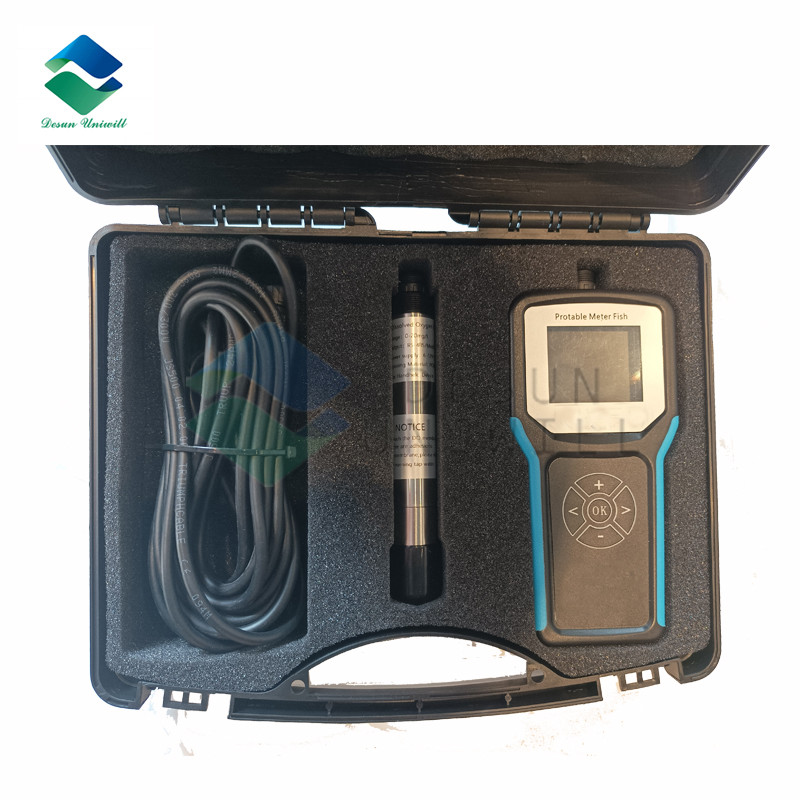

A portable dissolved oxygen meter is outstanding for ultra-low power microcontroller measurement and control, low power consumption, high reliability, intelligent measurement, using polarographic measurements, without changing the oxygen membrane. Having reliable, easy (one-hand operation) operation, etc.; the instrument can display dissolved oxygen concentration in two kinds of measurement results indicates, mg / L (ppm) and the oxygen saturation percentage (% ), in addition, measure the temperature of the measured medium simultaneously.
Technical Parameters
| Item | Parameters |
| Model | DS380 |
| Principle | Fluorescence analysis method |
| Measuring range | 0~20mg/L or 0-200% saturation |
| Response time | 3 sec |
| Accuracy | 1% |
| Protection level | IP68 |
| Installation | Submersible |
| Temperature sensor | NTC |
| Temperature range | 0~50°C |
| Temperature accuracy | ±0.2°C |
| Output | Support RS-485, MODBUS protocol |
| Power supply | DC 6~12V, current <50mA |
| Size | Φ26*155 mm |
| Probe cable length | Default 5 m, customized 10m, 15 m and 30 m cable |
| Fluorescent cap life | 1 year |
| Maximum working pressure | 6bar |
| product material | POM/SS316/Titanium alloy |
| Calibration method | One or Two-point calibration |
| Power consumption | < 0.5 W |
Q: Is your company a manufacturer??
A: Yes,we are a professional manufacturer of online water quality monitoring products: oil in water sensor/ DO sensor/ NH4-N sensor / ORP / COD sensor / Blue-green algae sensor /Conductivity sensor /TDS / TSS /MLSS,ect.
Q: What parameters do you need for product selection?
A: Application, Range, Power supply and Output signal.
Q: How about the quality of the managements?
A: We have a complete quality control system, our products will be fully pre-inspection before shipping to you. We have the certification of ISO, CE, we could send the certification test of our company to you.
