| Place of Origin: | China |
|---|---|
| Brand Name: | Desun Uniwill |
| Certification: | CE |
| Model Number: | DS-380 |
| Minimum Order Quantity: | 1 pcs |
| Price: | $280.00 - $400.00/ Piece |
| Packaging Details: | Carton packaging |
| Delivery Time: | 7~ 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 1000 sets per month |
| Model: | DS380 | Principle: | Fluorescence Analysis Method |
|---|---|---|---|
| Measuring Range: | 0~20mg/L | Response Time: | 1-10 Seconds |
| Accuracy: | 1% | Protection Level: | IP68 |
| Installation: | Submersible | Temperature Sensor: | 0~50°C |
| Temperature Accuracy: | ±0.2°C | Output: | Support RS-485, MODBUS Protocol |
| Power Supply: | DC 6~12V, Current <50mA | Size: | Φ26*155 Mm |
| Probe Cable Length: | Default 5 M | Fluorescent Cap Life: | 1 Year |
| Maximum Working Pressure: | 3bar | Housing Material: | SS316/Titanium Alloy |
| Highlight: | Online Optical Dissolved Oxygen Sensor,Rs485 Dissolved Oxygen Monitor,3bar Dissolved Oxygen Sensor |
||
The adequate dissolved oxygen level for aquaculture depends on several factors, including the species being cultivated, water temperature, and other environmental factors. Monitoring and maintaining appropriate DO levels through aeration and proper waste management practices are critical to ensuring the health and productivity of aquatic organisms in aquaculture systems. By carefully managing these factors, aquaculture producers can optimize production and reduce the risk of negative impacts on the environment.

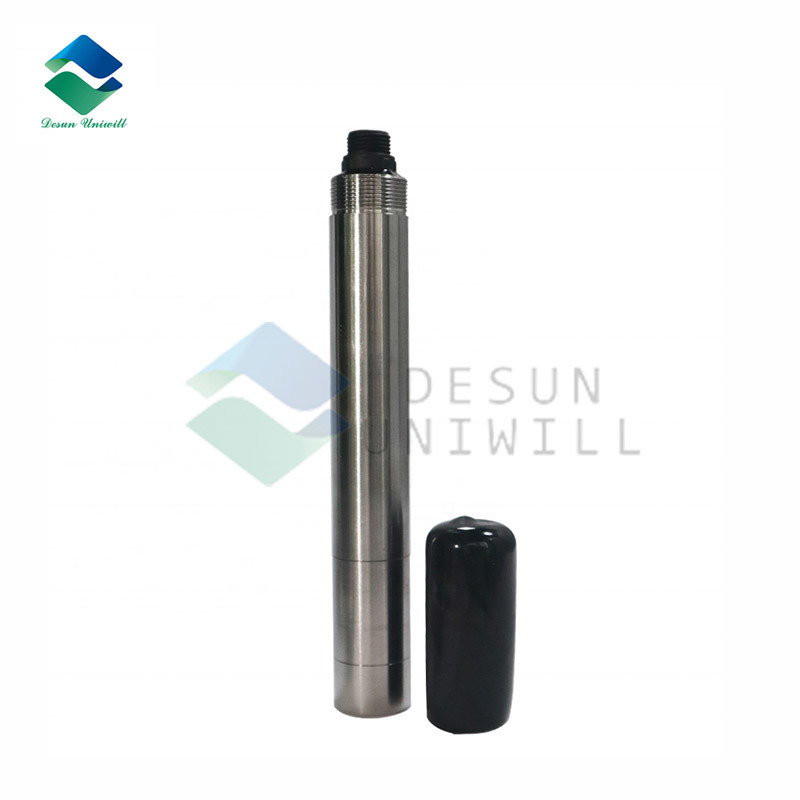

Dissolved Oxygen Sensor Brief Introduction
The DS380 series of fluorescent dissolved oxygen sensors use a new type of fluorescence lifetime technology and high-performance fluorescent materials. The fluorescent dissolved oxygen sensor is based on the quenching principle of the specific fluorescence of a specific substance in physics. Blue light from a light-emitting diode (LED) illuminates the fluorescent material on the inner surface of the fluorescent cap, and the fluorescent material on the inner surface is excited to emit red light by detecting the phase difference between red and blue light and the internal calibration value. The ratio is calculated to calculate the concentration of oxygen molecules, and the final value is automatically compensated by temperature and pressure.
Features of Fish Tank Dissolved Oxygen Sensor:
-0-20mg/L or 0-200% saturation
-0~50 °C; IP68 protection level
-No film, no electrolyte, no polarization
-No need to consume oxygen, no flow rate
-Built-in temperature sensor, automatic temperature compensation
-Free from chemical interferences such as sulfides
-Small annual drift, fast response, and more accurate measurement
-Free of maintenance, longer application cycle, and lower cost of use
-Fluor cap replacement is simple
-Support RS-485, MODBUS protocol
| Item | Parameters |
| Model | DS380 |
| Principle | Fluorescence analysis method |
| Measuring range | 0~20mg/L or 0-200% saturation |
| Response time | 3 sec |
| Accuracy | 1% |
| Protection level | IP68 |
| Installation | Submersible |
| Temperature sensor | NTC |
| Temperature range | 0~50°C |
| Temperature accuracy | ±0.2°C |
| Output | Support RS-485, MODBUS protocol |
| Power supply | DC 6~12V, current <50mA |
| Size | Φ26*155 mm |
| Probe cable length | Default 5 m, customized 10m, 15 m and 30 m cable |
| Fluorescent cap life | 1 year |
| Maximum working pressure | 3bar |
| Housing material | SS316/Titanium alloy |
Our Service:
* Standardized workshop and process
* Strict professional quality inspection
* Return is supported if the product is unqualified.
* Fast delivery
* Warranty for 1 year
