Underwater Online Fiber Optic Chlorophyll Sensor System With Automatic Cleaning Brush

Basic Information
Place of Origin: China
Brand Name: Desun Uniwill
Model Number: DS430
Minimum Order Quantity: 0-100pcs
Price: According to the specific quantity
Packaging Details: carton packaging
Delivery Time: 7-15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 sets per month
Detail Information
Product Name: Self-cleaning Chlorophyll Sensor Range: 0~400ug/L Or 0~100RFU
Sensor Interface: Support RS-485, MODBUS Protocol Housing Material: SS316
Max Pressure: 1 Bar Power Information: DC 6~12V, Current <50mA
High Light:

Online Fiber Optic Chlorophyll Sensor

,

Automatic Cleaning Brush Chlorophyll Sensor

,

12V Chlorophyll Water Quality Analyzer


Product Description

Online fiber optic chlorophyll sensor underwater chlorophyll sensor system With Automatic Cleaning Brush



How does a nitrogen sensor work?


How does N-Sensor work? The N-Sensor determines a nitrogen demand by measuring the crop's light reflectance covering a total area of approximately 50m2. Measurements are taken every second with the system designed to operate at normal working speeds and all bout widths.


1. Overview

Online chlorophyll digital sensor, adopts leading optical fluorescence technology, fiber- optic structure, has extremely low power consumption, very stable test performance, compact and lightweight. Measure directly and control the latest water quality status in real time, which is simpler than traditional analysis methods. It can be used for research, investigation and monitoring of rivers, lakes, ponds, marine surveys, aquaculture, drinking water sources, algae and phytoplankton.



2. Features


-Digital sensor, RS485 output, support Modbus
-Built-in temperature sensor
-0 ~ 50 ℃; IP68 protection
-Optical fiber structure, which can reduce the influence of stray light on the measurement
-Measure directly, easier than traditional analysis methods
-With automatic cleaning brush to prevent contamination and eliminate airbubbles



3. Technical parameter



Product name  Self-cleaning Chlorophyll Sensor
Range 0~400ug/L or 0~100RFU
Detection limit  0.1 ug/L
Temperature range  0~ 50°C
Protection level  Ip68
Max Pressure  1 bar
Sensor interface  Support RS-485, MODBUS protocol
Installation  Input type
Power information  DC 6~12V, current <50mA
Size  Φ45*175.8mm
Probe cable length  5 meters (default), can be customized
Housing material  SS316
Self-cleaning system  Have





4. Photos

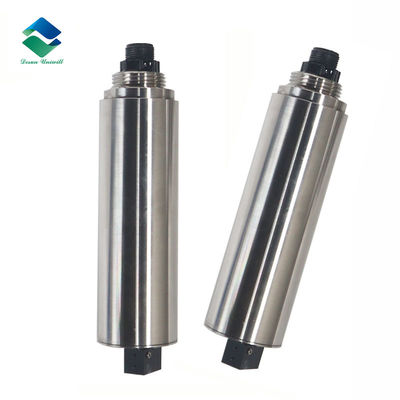

chlorophyll sensor system With Automatic Cleaning Brush



5. Cable Information for Sensors

4 wire AWG-24 or AWG-26 shielding wire. OD=5mm
 Red line----power supply (VCC)
 White line---- 485 data -B (485-B)
 Yellow line---- 485 data -A (485-A)
 Black line----ground (GND)
 Bare line---- shielding layer



RFQ



Q: Is your company a manufacturer??
A: Yes,we are a professional manufacturer of online water quality monitoring products: oil in water sensor/ DO sensor/ NH4-N sensor / ORP / COD sensor / Blue-green algae sensor /Conductivity sensor /TDS / TSS /MLSS,ect.
Q: What parameters do you need for product selection?
A: Application, Range, Power supply and Output signal.
Q: How about the quality of the management?
A: We have a complete quality control system, our products will be fully pre-inspection before shipping to you. We have the certification of ISO, CE, we could send the certification test of our company to you.
Q: Can you offer OEM services?
A: Yes, we support OEM and ODM products according to your requirements.
Q: What are your terms of payment and delivery time?
A: We could accept T/T, Paypal, Western Union, Credit Assurance. Generally, we will arrange the shipment within 7 days after received payment.
Q: How about warranty?
A: 12 months warranty
