Online Chlorophyll Fluorescence Sensor For Water Enviroment Quality Monitoring

Basic Information
Place of Origin: China
Brand Name: Desun Uniwill
Model Number: DS430
Minimum Order Quantity: 0-100pcs
Price: According to the specific quantity
Packaging Details: carton packaging
Delivery Time: 7-15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 sets per month
Detail Information
Product Name: Self-cleaning Chlorophyll Sensor Range: 0~400ug/L Or 0~100RFU
Sensor Interface: Support RS-485, MODBUS Protocol Housing Material: SS316
Max Pressure: 1 Bar Power Information: DC 6~12V, Current <50mA
High Light:

Water Quality Monitoring Chlorophyll Fluorescence Sensor


Online Chlorophyll Fluorescence Sensor


SS316 Chlorophyll Sensor

Product Description

Factory Price Online Water Enviroment Quality Monitoring Chlorophyll Fluorescence Sensor


Chlorophyll sensors have a variety of applications in different fields, including:


-Agriculture: Chlorophyll sensors are used in precision agriculture to monitor the health and growth of crops. By measuring the chlorophyll content in plants, farmers can optimize the use of fertilizers, water, and other resources, which can improve crop yields and reduce waste.

-Environmental monitoring: Chlorophyll sensors are used to monitor the health of aquatic ecosystems, such as rivers, lakes, and oceans. By measuring chlorophyll levels, researchers can identify changes in water quality, detect harmful algal blooms, and assess the overall health of the ecosystem.

-Climate research: Chlorophyll sensors are used in climate research to monitor changes in the productivity of photosynthetic organisms, which can help scientists better understand the global carbon cycle and its impact on climate change.

-Biomedical research: Chlorophyll sensors are used in biomedical research to study the mechanisms of photosynthesis and cellular metabolism. By measuring chlorophyll fluorescence, researchers can study the efficiency of energy transfer in cells, which can help improve the development of new drugs and therapies.


Overall, chlorophyll sensors are a versatile tool that can be used in many different applications to monitor and study photosynthetic organisms and their environments.

1. Overview

Online chlorophyll digital sensor, adopts leading optical fluorescence technology, fiber- optic structure, has extremely low power consumption, very stable test performance, compact and lightweight. Measure directly and control the latest water quality status in real time, which is simpler than traditional analysis methods. It can be used for research, investigation and monitoring of rivers, lakes, ponds, marine surveys, aquaculture, drinking water sources, algae and phytoplankton.


2. Features

-Digital sensor, RS485 output, support Modbus
-Built-in temperature sensor
-0 ~ 50 ℃; IP68 protection
-Optical fiber structure, which can reduce the influence of stray light on the measurement
-Measure directly, easier than traditional analysis methods
-With automatic cleaning brush to prevent contamination and eliminate airbubbles


3. Technical parameter


Product name  Self-cleaning Chlorophyll Sensor
Range 0~400ug/L or 0~100RFU
Detection limit  0.1 ug/L
Temperature range  0~ 50°C
Protection level  Ip68
Max Pressure  1 bar
Sensor interface  Support RS-485, MODBUS protocol
Installation  Input type
Power information  DC 6~12V, current <50mA
Size  Φ45*175.8mm
Probe cable length  5 meters (default), can be customized
Housing material  SS316
Self-cleaning system  Have



4. Photos

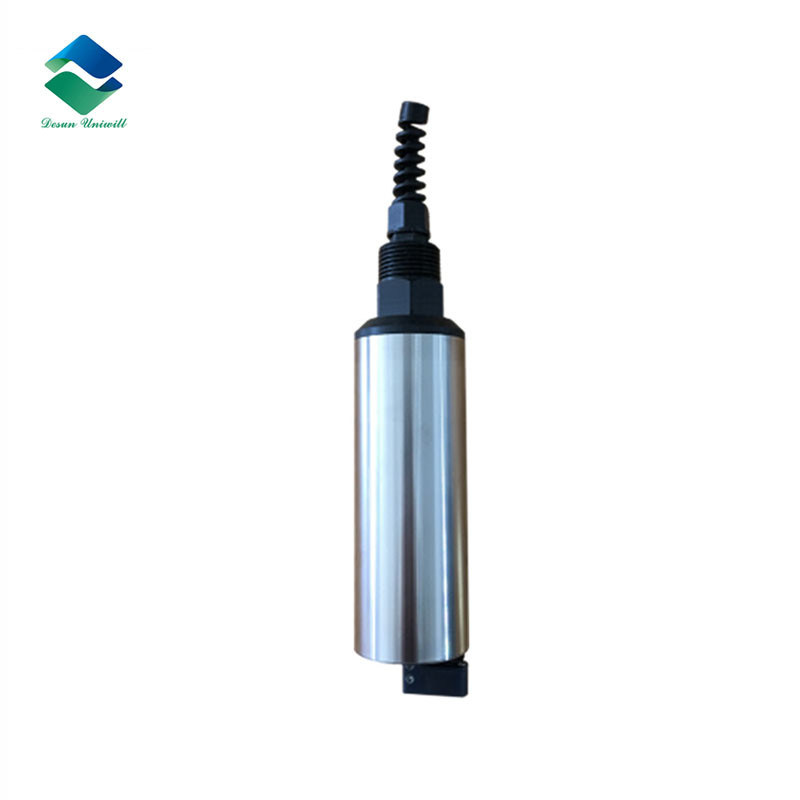

Self-cleaning Online Digital Chlorophyll Sensor



5. Cable Information for Sensors

4 wire AWG-24 or AWG-26 shielding wire. OD=5mm
 Red line----power supply (VCC)
 White line---- 485 data -B (485-B)
 Yellow line---- 485 data -A (485-A)
 Black line----ground (GND)
 Bare line---- shielding layer
