Aquarium Dissolved Oxygen Meter For Lakes Wastewater Aquaculture Polarographic Probe

Basic Information
Place of Origin: China
Brand Name: Desun Uniwill
Certification: CE
Model Number: DYS-1
Minimum Order Quantity: 0~100 pcs
Price: $ 425.00 - $ 535.00/ Set
Packaging Details: Carton packaging
Delivery Time: 7~ 15 working days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 0~1000 pcs
Detail Information
Model: DYS-1 D.O. Range: 0~20mg/L Or 0~200%
DO Sensor: Optical DO Sensor D.O. Accuracy: 1%
Dissolved Oxygen Sensor Drift: <1%per Year Sensor Material: Stainless Steel/Titanium
Temp. Range: 0~40℃ Temp. Accuracy: ±0.2℃
Working Temperature: -20℃~50℃ Material Supplied: 3v~6v
Power: <0.5w Signal Output: RS-485
High Light:

Aquarium Dissolved Oxygen Meter

,

Aquaculture Polarographic Probe

,

Lakes Wastewater Dissolved Oxygen Meter


Product Description

Aquarium Dissolved Oxygen Meter for Lakes Wastewater Laboratory DO Meter for Aquaculture Polarographic Probe



Product Description

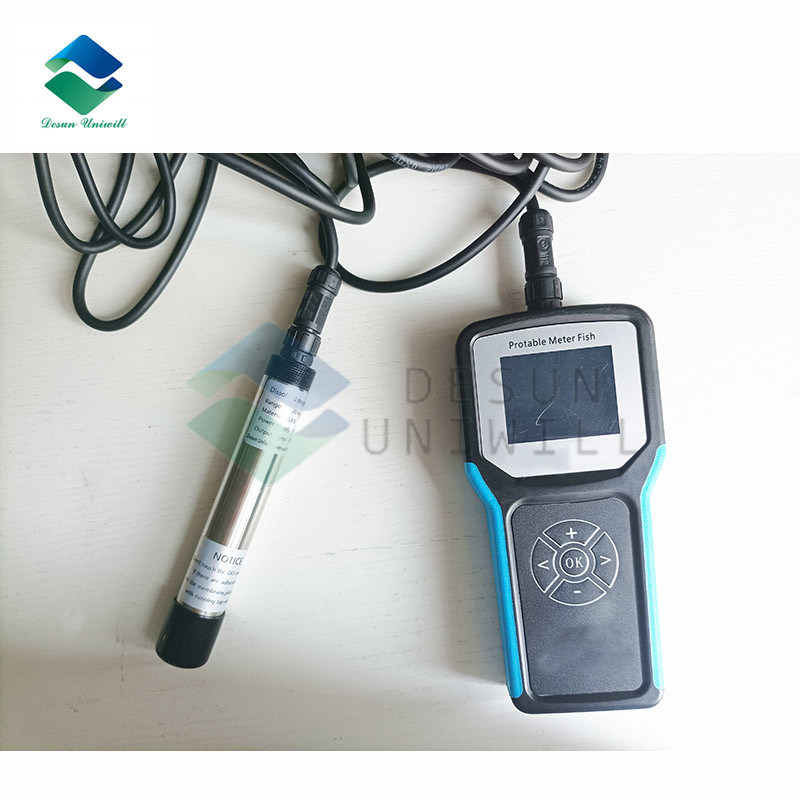

The handheld device can be used for monitoring of dissolved oxygen, temperature and PH in water, and can meet the requirements of portable accurate water quality measurement.

Signal output: RS-485
The screen uses a custom backlight, which can display dissolved oxygen, temperature, PH, real-time clock.

Manual calibration of salinity, air pressure and KB value to ensure accurate measurement value.

Aquarium Dissolved Oxygen Meter For Lakes Wastewater Aquaculture Polarographic Probe 0
Aquarium Dissolved Oxygen Meter For Lakes Wastewater Aquaculture Polarographic Probe 1

Features
* 0-20mg/L or 0-200% saturation
* 0~50 °C; IP68 protection level
* No film, no electrolyte, no polarization
* No need to consume oxygen, no flow rate
* Built-in temperature sensor, automatic temperature compensation
* Free from chemical interferences such as sulfides
* Small annual drift, fast response, and more accurate measurement
* Free of maintenance, longer application cycle and lower cost of use
* Fluor cap replacement is simple
*Support RS-485, MODBUS protocol

Technical parameters
Model
Fluorescent dissolved oxygen sensor
Measuring Range
0-20mg/L or 0 ≤ 200% saturation
Response time
3min
Precision
± 1%
Sensor drift
<1% per year
Temperature range
0~50℃
Temperature precision
± 0.5℃
Calibration method
One or Two-point calibration
output method
RS-485 (Modbus/ RTU )
Temperature sensor
NTC
Housing diameter
22mm
Housing length
188.3
Cable length
10 m, in addition to the customer, 5 m, 15 m and 30 m cables.
Power consumption
< 0.5 W
power supply
DC6~12v +/-5%, current<50mA
Protection level
IP68
Housing Material
POM



DO Meter Cases
