| Place of Origin: | China |
|---|---|
| Brand Name: | Desun Uniwill |
| Model Number: | DS-380 |
| Minimum Order Quantity: | 0~100 pcs |
| Price: | $280.00 - $360.00/ Piece |
| Packaging Details: | Carton packaging |
| Delivery Time: | 7~ 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 0~1000 pcs |
| Measuring Range: | 0~20mg/L | Response Time: | 3 Seconds |
|---|---|---|---|
| Protection Level: | IP68 | Power Supply: | DC 6~12V |
| Product Material: | POM/SS316/Titanium | Power Consumption: | < 0.5 W |
| Calibration Method: | One Or Two-point Calibration | Accuracy: | 1% |
| Maximum Working Pressure: | 6bar | Fluorescent Cap Life: | 1 Year |
| High Light: | Aquarium Water Oxygen Level Sensor,Water Oxygen Level Sensor Submersible,Customized optical do probe |
||

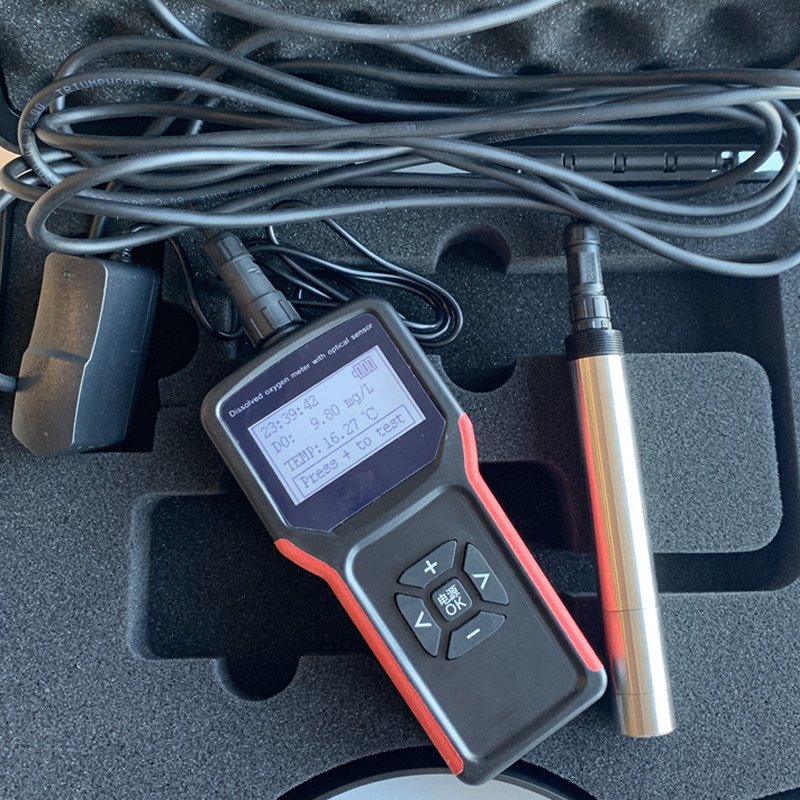

Customized Aquarium Optical Water Oxygen Level Sensor Submersible Temperature
Dissolved Oxygen Meter is one of the intelligent online chemical analysis instruments. It is widely used in continuous monitoring of dissolved oxygen, saturation, oxygen partial pressure and temperature .The continuous monitoring data is realized by remote transmission monitoring and recording through the transmission output connection recorder. It can also be connected to the RS485 interface and can be easily connected to the computer for monitoring and recording through the MODBUS-RTU protocol.
It is widely used in continuous monitoring of dissolved oxygen, saturation, oxygen partial pressure and temperature in thermal power, chemical fertilizer, metallurgy, environmental protection, pharmaceutical, biochemical, food and tap water solutions.
Technical Parameters
|
Item |
Parameters |
|
Model |
DS380 |
|
Principle |
Fluorescence analysis method |
|
Measuring range |
0~20mg/L or 0-200% saturation |
|
Response time |
3 sec |
|
Accuracy |
1% |
|
Protection level |
IP68 |
|
Installation |
Submersible |
|
Temperature sensor |
NTC |
|
Temperature range |
0~50°C |
|
Temperature accuracy |
±0.2°C |
|
Output |
Support RS-485, MODBUS protocol |
|
Power supply |
DC 6~12V, current <50mA |
|
Size |
Φ26*155 mm |
|
Probe cable length |
Default 5 m, customized 10m, 15 m and 30 m cable |
|
Fluorescent cap life |
1 year |
|
Maximum working pressure |
3bar |
|
Housing material |
SS316/Titanium alloy |
