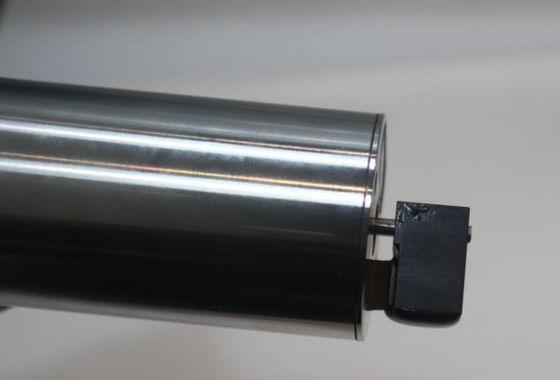

Real Time Monitoring Blue Green Algae Sensor RS485 Water Level Probe

Basic Information
Place of Origin: China
Brand Name: Desun Uniwill
Model Number: DS305
Minimum Order Quantity: 0-100PCS
Price: According to the specific quantity
Packaging Details: carton packaging
Delivery Time: 7-15 working days
Payment Terms: T/T, L/C, D/A, D/P
Detail Information
Product Name: Blue Green Algae Sensor Principle: Fluorescence Method
Measure Range: 0-270, 000 Cells/mL Resolution: 1 Cells/mL
Detection Limit: 300 Cells/mL Housing Material: SS316
Power Supply: 5~12vdc,current <50mA (when Not Cleaned) Output Signal: RS485, MODBUS Protocol
IP Grade: IP68 Deepest Depth: Underwater 10 Meters
High Light:

Real Time Blue Green Algae Sensor

,

Blue Green Algae Sensor RS485

,

Water Level Probe RS485


Product Description

Real Time Monitoring RS485 Modbus DS206 Blue-Green Algae Sensor In Water Treatment

Introduction

The online blue-green algae sensor uses the principle of fluorescence method, which is more efficient and faster than the traditional manua counting method, and can be monitored in real time online. The senso has better repeatability and stability. With automatic cleaning brush, it can eliminate air bubbles and reduce the impact of contamination on the measurement, make the maintenance cycle longer, and maintain excellen stability for long-term online use It can play an early warning role on algae reproduction.


Features

★ Digital sensor, RS-485 output, support MODBUS

★ With automatic cleaning brush to prevent contamination and eliminate air bubbles

★ Direct measurement, simpler than traditional manual counting method

★ Continuous online monitoring, real-time control of water quality dynamics



Technical parameter

Product name Blue-green Algae Sensor
model DS206
principle Fluorescence method
Range 0-270, 000 cells/mL
Detection limit 300 cells/mL
Resolution 1 cells/mL
Linearity R2>0.99
temperature range 0~ 50°C
Protection level Ip68
Sensor interface Support RS-485, MODBUS protocol
Installation Input type,
Power information DC 5~12V, current <50mA
size Φ45*175.8mm
Probe cable length 10 meters (default), can be customized
Housing material SS316
Self-cleaning system Have



Cable Definition

Power information

The power supply must be DC 5-12V +/-5%, current <50mA

Real Time Monitoring Blue Green Algae Sensor RS485 Water Level Probe 0

Cable information

4 wire AWG-24 or AWG-26 shielding wire. OD=5mm



1, red line - power supply (VCC)

2, white line - 485 data _B (485_B) 3, green line --- 485 data _A (485_A) 4, black line --- ground (GND)

5, bare line shielding layer
