| Place of Origin: | China |
|---|---|
| Brand Name: | Desun Uniwill |
| Model Number: | DS-380 |
| Minimum Order Quantity: | 0~100 pcs |
| Price: | $280.00 - $360.00/ Piece |
| Packaging Details: | Carton packaging |
| Delivery Time: | 7~ 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 0~1000 pcs |
| Measuring Range: | 0~20mg/L | Response Time: | 3 Seconds |
|---|---|---|---|
| Protection Level: | IP68 | Power Supply: | DC 6~12V |
| Product Material: | POM/SS316/Titanium | Power Consumption: | < 0.5 W |
| Calibration Method: | One Or Two-point Calibration | Accuracy: | 1% |
| Maximum Working Pressure: | 6bar | Fluorescent Cap Life: | 1 Year |
| High Light: | high temperature Dissolved Oxygen Sensor,Dissolved Oxygen Sensor 12V,dissolved oxygen probe Titanium |
||
Fluorescence Analysis Dissolved Oxygen Sensor Probe 12V Titanium
Features
* 0-20mg/L or 0-200% saturation * 0~50 °C;
*IP68 protection level * No film, no electrolyte, no polarization
* No need to consume oxygen, no flow rate
* Built-in temperature sensor, automatic temperature compensation
Technical Parameters
| Item | Parameters |
| Model | DS380 |
| Principle | Fluorescence analysis method |
| Measuring range | 0~20mg/L or 0-200% saturation |
| Response time | 3 sec |
| Accuracy | 1% |
| Protection level | IP68 |
| Installation | Submersible |
| Temperature sensor | NTC |
| Temperature range | 0~50°C |
| Temperature accuracy | ±0.2°C |
| Output | Support RS-485, MODBUS protocol |
| Power supply | DC 6~12V, current <50mA |
| Size | Φ26*155 mm |
| Probe cable length | Default 5 m, customized 10m, 15 m and 30 m cable |
| Fluorescent cap life | 1 year |
| Maximum working pressure | 6bar |
| product material | POM/SS316/Titanium alloy |
| Calibration method | One or Two-point calibration |
| Power consumption | < 0.5 W |

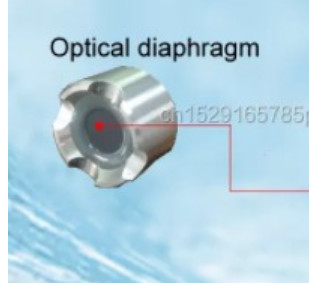

Fluorescent cap daily storage
Put it in a protective cover with a moist sponge when not in use, so that the sensor stays wet for a long time.
If the head of the sensor's fluorescent cap is dry for a long time, it will cause drift of the measurement result, so it needs to be immersed in water for 48 hours before continuing to work.
