Wastewater Outlet Suspended Solids Sensor RS485 Online Tss Meter IP68

Basic Information
Place of Origin: China
Brand Name: Desun Uniwill
Model Number: DS450
Minimum Order Quantity: 0-100pcs
Price: 360-500USD
Packaging Details: carton packaging
Delivery Time: 7-15 working days
Payment Terms: L/C, D/A, D/P, T/T
Detail Information
Range Of Measurement: 0.5~10 Mg/L Maximum Depth: 10 Meters Underwater
Accuracy: < 3% Degree Of Protection: IP68
Temperature Range: 0 ~ 50 °C Sensor Interface: Support RS-485 ,MODBUS Protocol
Installation: Submerged Installation Power Information: DC 5~12V, Current <50mA
Housing Material: SS316 Probe Cable Length: 5 Meters (default), Can Be Customized
High Light:

Wastewater Outlet Suspended Solids Sensor


Suspended Solids Sensor RS485


online tss meter IP68

Product Description

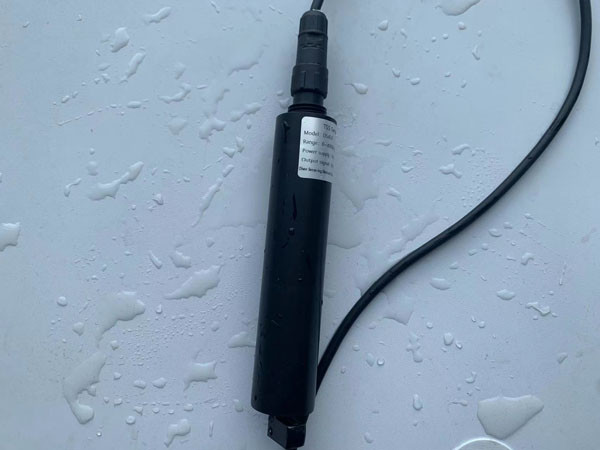

IP68 High precision, long life in-line TSS sensor for wastewater outlet monitoring RS485 signal output

Product description
The sensor adopts the principle of 135° backlight, 880nm infrared LED light source and Deshun Youli's unique adaptive software algorithm, which can effectively eliminate the interference of external light.
The optical fiber structure has good repeatability and good stability. Backed by an automatic cleaning brush.
Air bubbles can be eliminated to reduce the influence of contamination on the measurement.
The maintenance interval is longer, and it can maintain a good stability even in long-term online use.
0.5~4000 mg/L
Accuracy < 3%
0~50 °C; IP68 protection, water depth within 10 meters.
135 ° back light principle.
Built-in temperature sensor
Support RS-485 , MODBUS protocol
Convenient, fast, stable and easy to maintain
Technical parameter
Fiber optic TSS sensor
Self-cleaning Fiber optic TSS sensor
90° scattered light
0 to 1000 mg/L The range needs to be customized
Protection level
Output signal
Support RS-485, MODBUS protocol
Submersible type, Circulation type
Power supply
DC 5~12V, current <50mA (when not cleaned)
Φ45*175.8 mm
Probe cable length
10 meters (default), can be customized
Housing material
POM, SS316
Optical window
Self-cleaning system
Wastewater Outlet Suspended Solids Sensor RS485 Online Tss Meter IP68 0
Cable information
4 wire AWG-24 or AWG-26 shielding wire. Turbidity=5mm
1, red line - power supply (VCC)
2, white line - 485 data _B (485_B) 3,
green line --- 485 data _A (485_A) 4,
black line --- ground (GND)
5, bare line---- shielding layer

Maintenance methods

Sensor maintenance

1) Sensor outer surface: Clean the outer surface of the sensor with tap water. If there isstill debris left, wipe it with a soft, damp cloth.

               For some stubborn dirt, some household washing liquid can be added to the tap waterfor cleaning.

2) Check the cable of the sensor: The cable should not be tightened during normaloperation, otherwise the internal wires of the cable may be broken and the sensor may not work properly.

3) Check if the sensor's measurement window is dirty .

4) Check the sensor housing for damage.


Notice: The probe contains sensitive optical and electronic components. Make sure the probe is not subject to severe mechanical shock. No need inside the probe

The part to be maintained by the user.
