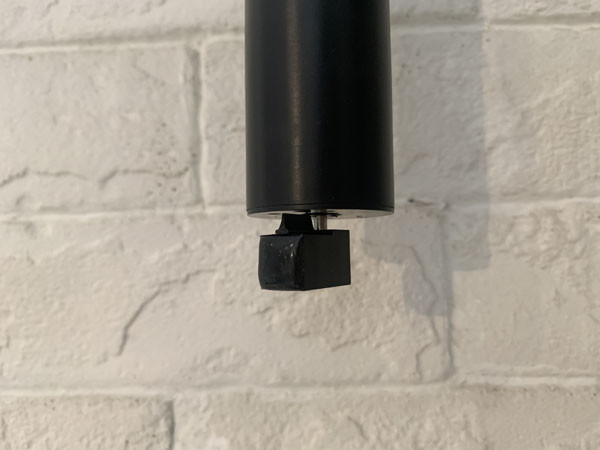

High Precision Rs485 Suspended Solids Sensor Ip68 Online Tss Meter

Basic Information
Place of Origin: China
Brand Name: Desun Uniwill
Model Number: DS450
Minimum Order Quantity: 0-100pcs
Price: 360-500USD
Packaging Details: carton packaging
Delivery Time: 7-15 working days
Payment Terms: L/C, D/A, D/P, T/T
Detail Information
Range Of Measurement: 0.5~1000 Mg/L Maximum Depth: 10 Meters Underwater
Accuracy: < 3% Degree Of Protection: IP68
Temperature Range: 0 ~ 50 °C Sensor Interface: Support RS-485 ,MODBUS Protocol
Installation: Submerged Installation Power Information: DC 5~12V, Current <50mA
Housing Material: SS316 Probe Cable Length: 5 Meters (default), Can Be Customized
High Light:

Rs485 Suspended Solids Sensor


Suspended Solids Sensor Ip68


High Precision Online Tss Meter

Product Description

high-precision cheap analog TSS sensor meter 4-20ma/rs485 turbidity sensor probe ip68 protection

Quick Info


0.5~4000 mg/L
Accuracy < 3%
0~50 °C; IP68 protection, water depth within 10 meters.
135 ° back light principle.
Built-in temperature sensor
Support RS-485 , MODBUS protocol
Convenient, fast, stable and easy to maintain
Technical parameter
Fiber optic TSS sensor
Self-cleaning Fiber optic TSS sensor
90° scattered light
0 to 1000 mg/L The range needs to be customized
Protection level
Output signal
Support RS-485, MODBUS protocol
Submersible type, Circulation type
Power supply
DC 5~12V, current <50mA (when not cleaned)
Φ45*175.8 mm
Probe cable length
10 meters (default), can be customized
Housing material
POM, SS316
Optical window
Self-cleaning system


Maintenance methods
Sensor maintenance
1) Sensor outer surface: Clean the outer surface of the sensor with tap water. If there isstill
debris left, wipe it with a soft, damp cloth.
For some stubborn dirt, some household washing liquid can be added to the tap waterfor
2) Check the cable of the sensor: The cable should not be tightened during normaloperation,
otherwise the internal wires of the cable may be broken and the sensor may not work
properly.3) Check if the sensor's measurement window is dirty .
4) Check the sensor housing for damage.
Notice: The probe contains sensitive optical and electronic components. Make sure the
probe is not subject to severe mechanical shock. No need inside the probe
The part to be maintained by the user.

Company Information

The company is a high-tech company integrates production, R&D, sales, after-sales service and engineering service.
Multi-parameter water quality sensors (five parameters / seven parameters), optical dissolved oxygen, fiber turbidity, four-electrode conductivity, blue-green algae, chlorophyll, water oil and COD have been introduced. Widely used in water environmental protection, sewage treatment, industrial process monitoring, aquaculture, groundwater monitoring, water plants, petrochemical enterprises, small and medium-sized environmental protection companies, food fermentation and pharmaceuticals. Through water environment monitoring equipment, water quality can be monitored more effectively during processing, discharge and recycling.
Our Service

* Workshop and process standardization
* Strict expert quality control
* If the product does not satisfy, the return is also supported.
* Quick delivery
* Guarantee for 1 year

High Precision Rs485 Suspended Solids Sensor Ip68 Online Tss Meter 0

Q: Is your company a manufacturer??
A: Yeah, we are a manufacturer of professional online water quality monitoring products: Oil in water sensor / Dissolved oxygen sensor / pH sensor / NH4-N sensor / ORP/COD sensor / Blue-green algae sensor / Conductivity sensor / TDS / TSS / MLSS,TOC,etc.
Q: How about the quality of the managements?
A: We have a complete quality control system, our products will be fully pre-inspection before shipping to you. We have the certification of ISO, CE, we could send the certification test of our company to you.

Q: What are your terms of payment and delivery time?
A: We could accept T/T, Paypal, Western Union, Credit Assurance. Generally, we will arrange the shipment within 7 days after received payment.
