| Place of Origin: | China |
|---|---|
| Brand Name: | Desun Uniwill |
| Certification: | CE |
| Model Number: | DYS-1 |
| DO Range: | 0~20mg/L Or 0~200% | DO Accuracy: | 1% |
|---|---|---|---|
| Sensor Material: | Stainless Steel/Titanium | Temp. Range: | 0~40℃ |
| Temp. Accuracy: | ±0.2℃ | Measuring Distance: | 3m~5m |
| Working Temperature: | -20℃~50℃ | Power: | <0.5w |
| Signal Output: | RS-485 | ||
| High Light: | RS485 Water Dissolved Oxygen Sensor,Output Water Dissolved Oxygen Sensor,water oxygen sensor Meteo Station |
||
RS485 Output DO Meter Meter Station Outdoor Sensor Dissolved Oxygen Digital Sensor

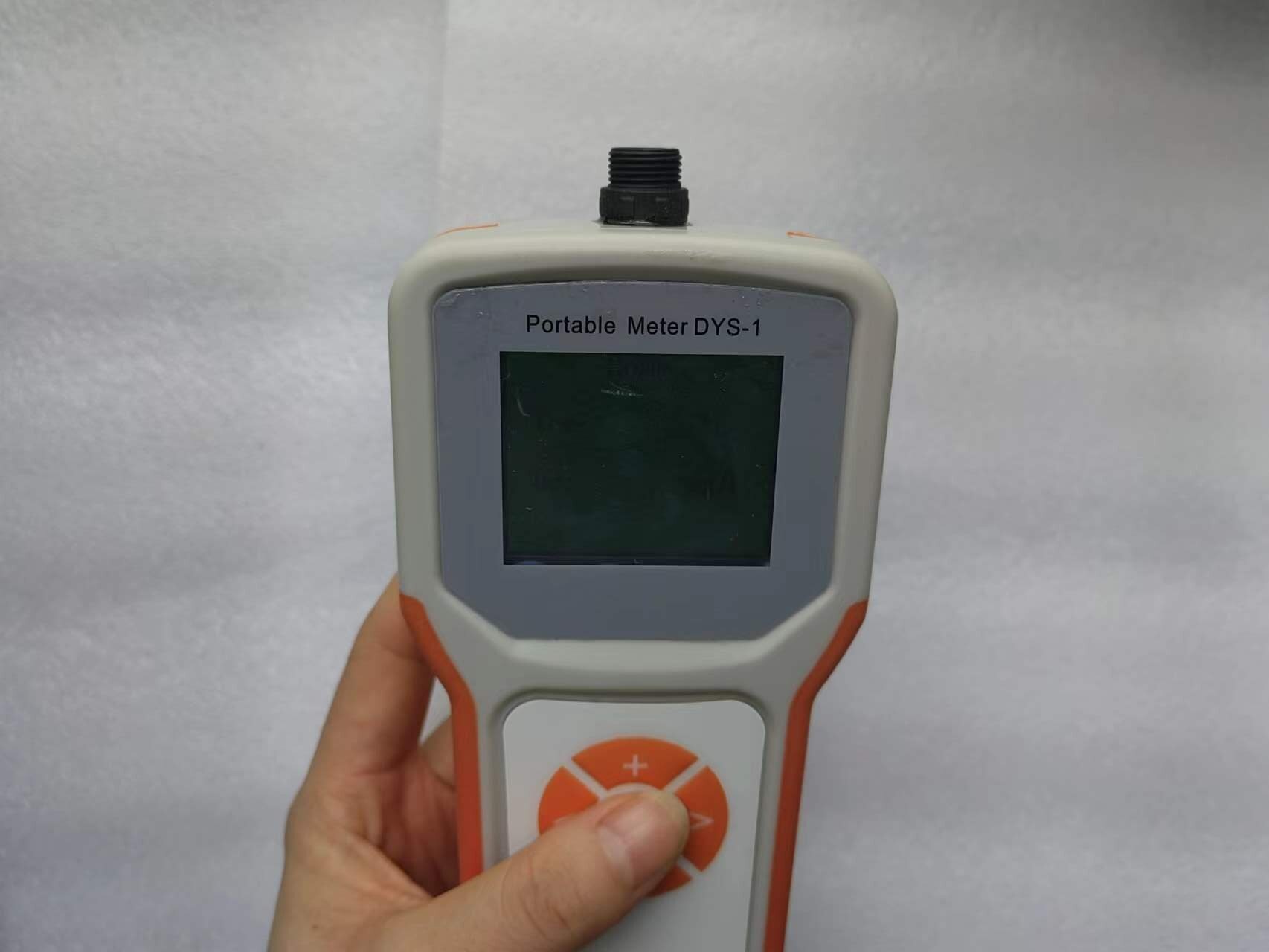

DYS-1 Portable Do Meter INTRODUCTION
Features:
￭ Hand-Measured Water Meter with multiple parameters display: DO and temperature.
￭ Signal output:RS-485
￭Support manual salinity compensation, air pressure compensation and manual/auto calibration.
Application:
-Excellent to use in fresh water aqua farm.
-Excellent to use in sea water aqua farm.
|
Model |
DYS-1 |
|
DO Range |
0~20mg/L or 0~200% |
|
DO Accuracy |
1% |
|
Dissolved Oxygen Sensor Drift |
<1%per year |
|
Sensor Material |
SS316 or Titanium alloy |
|
Temp. Range |
0~40℃ |
|
Temp. Accuracy |
±0.2℃ |
|
Measuring Distance |
3m~5m |
|
Sensor Cleaning Cycle |
According to water condition and measuring frequency |
|
Working Temperature |
-20℃~50℃ |
|
Material Supplied |
3v~6v |
|
Power |
<0.5w |
|
Signal Output |
RS-485 |
DAILY MAINTENANCE
This instrument uses a fluorescent dissolved oxygen probe. When cleaning the probe, please use a wet soft cloth or a sponge, gently wipe the fluorescent film on the front end. For some stubborn dirt, some household detergents can be added to the tap water for cleaning.
NOTE:
Don‘t scrape the fluorescent film with hard objects, otherwise scraping the fluorescent film will be discarded.
Maintenance frequency suggests arranging cleaning cycle according to water condition.
The fluorescent film should be replaced once every 2 to 3 years.
When not in use, please put the front end of the sensor in a protective shield.
