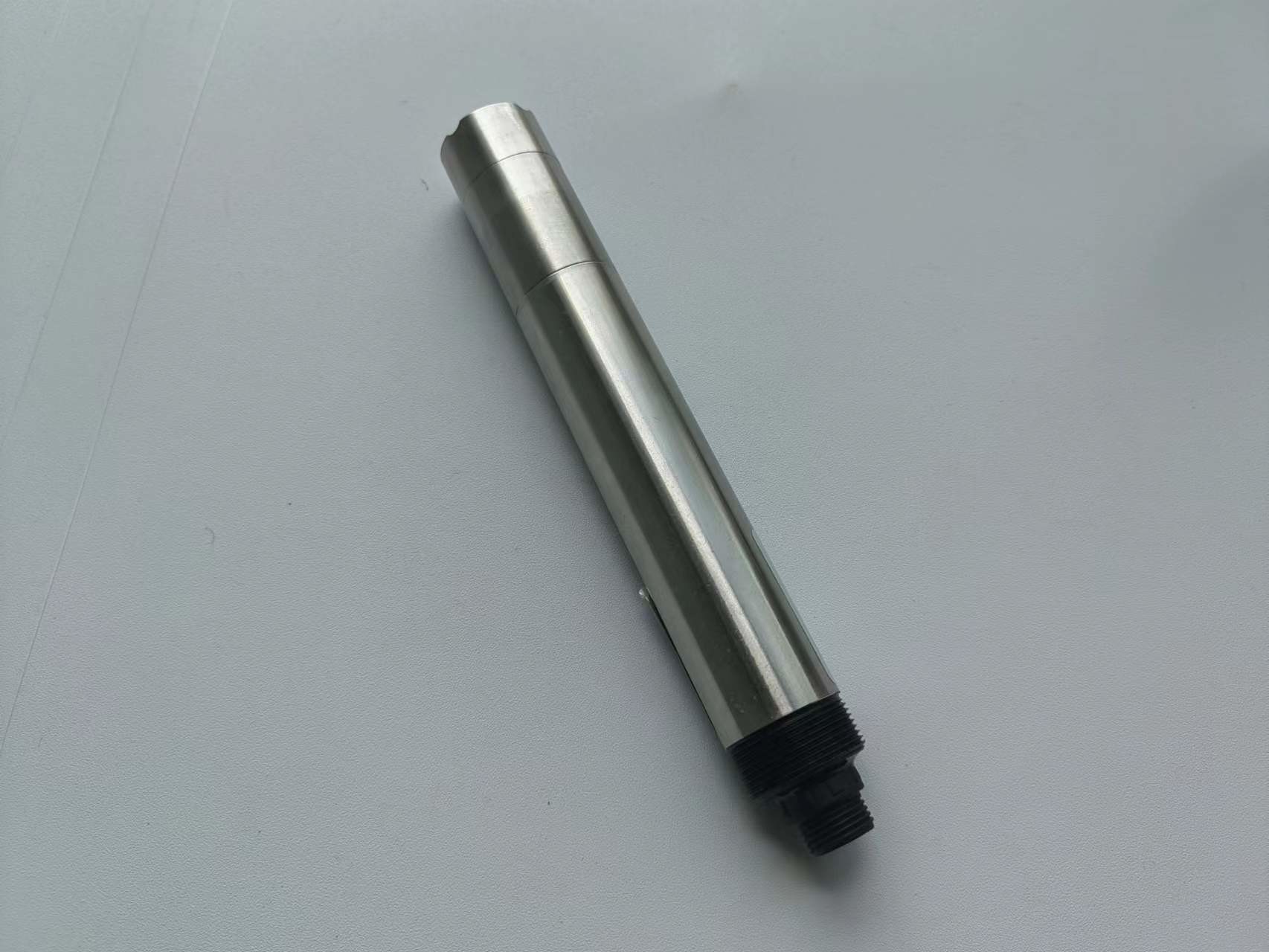

RS485 4 20mA Optical Dissolved Oxygen Sensor Electrode Probe 50 Degree

Basic Information
Place of Origin: China
Brand Name: Desun Uniwill
Model Number: DS-380
Minimum Order Quantity: 0~100 pcs
Price: $280.00 - $360.00/ Piece
Packaging Details: Carton packaging
Delivery Time: 7~ 15 working days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 0~1000 pcs
Detail Information
Measuring Range: 0~20mg/L Response Time: 3 Seconds
Protection Level: IP68 Power Supply: DC 6~12V
Product Material: POM/SS316/Titanium Power Consumption: < 0.5 W
Calibration Method: One Or Two-point Calibration
High Light:

RS485 Dissolved Oxygen Sensor


20mA probe do meter


Optical Dissolved Oxygen Sensor

Product Description


Dissolved oxygen sensor based on the latest polarographic analysis technology, the steel gauze structure of integrated silicone rubber permeable film as a permeable film, which has the advantages of collision resistance, corrosion resistance, high temperature resistance, no deformation, small maintenance and so on.

The electrode body is made of 316L stainless steel, which is corrosion-resistant and more durable. The sea water version can also be plated with titanium, which also performs well under strong corrosion.


It is specially used for measuring PPB dissolved oxygen of boiler feed water and condensate water.




Item Parameters
Model DS380
Principle Fluorescence analysis method
Measuring range 0~20mg/L or 0-200% saturation
Response time 3 sec
Accuracy 1%
Protection level IP68
Installation Submersible
Temperature sensor NTC
Temperature range 0~50°C
Temperature accuracy ±0.2°C
Output Support RS-485, MODBUS protocol
Power supply DC 6~12V, current <50mA
Size Φ26*155 mm
Probe cable length Default 5 m, customized 10m, 15 m and 30 m cable
Fluorescent cap life 1 year
Maximum working pressure 6bar
product material POM/SS316/Titanium alloy
Calibration method One or Two-point calibration
Power consumption < 0.5 W
