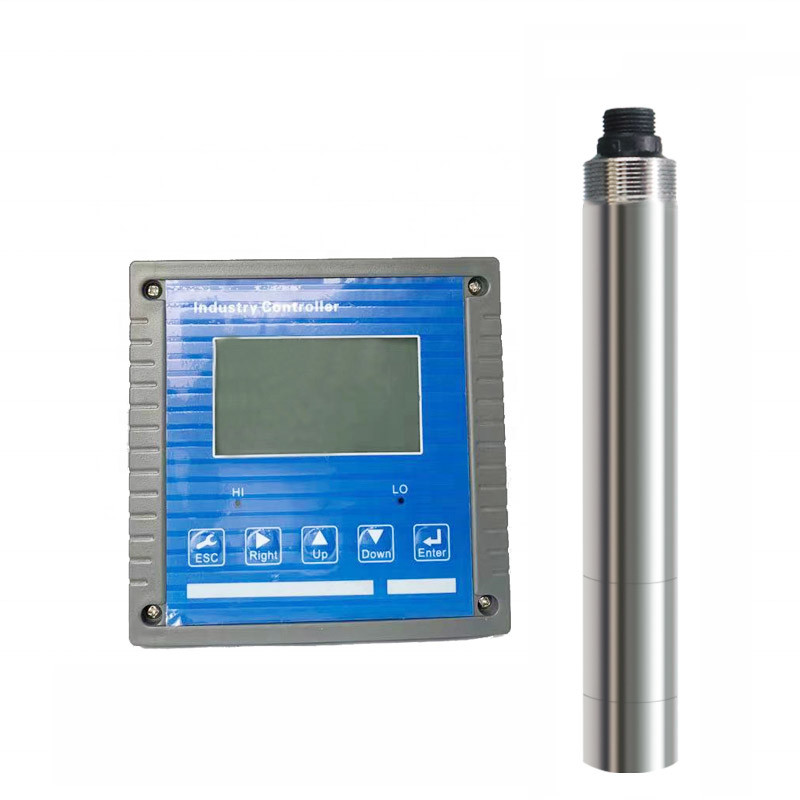

Aquarium Digital Dissolved Oxygen Sensor Fluorescence Analysis Do Sensor Probe

Basic Information
Place of Origin: China
Brand Name: Desun Uniwill
Model Number: DS-380
Minimum Order Quantity: 0~100 pcs
Price: $280.00 - $360.00/ Piece
Packaging Details: Carton packaging
Delivery Time: 7~ 15 working days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 0~1000 pcs
Detail Information
Principle: Optical Method Measuring Range: 0~20mg/L Or 0-200% Saturation
Response Time: 3 Seconds Accuracy: 1%
Protection Level: IP68 Output: RS-485, MODBUS Protocol
Power Supply: DC 6~12V, Current <50mA Cable Length: 5 Meters (default), Can Be Customized
Material: SS316/Titanium Alloy
High Light:

dissolved oxygen meter aquarium


Digital Dissolved Oxygen Sensor


Fluorescence Do Meter Probe

Product Description

Aquarium Digital Dissolved Oxygen Probe for Sale measurement principle fluorescence analysis


Measurement Principle

  • The optical fluorescence dissolved oxygen sensor is based on the physics principle of quenching the specific fluorescence of a particular substance.
  • The blue light coming from the light emitting diode (LED) illuminates the inner surface of the fluorescent cap, which is stimulated to emit red light by detecting the phase difference between the red and blue light and the inner calibration value.
  • The oxygen molecule concentration is calculated by counting the ratio and the final value is automatically compensated for by temperature and pressure.


Technical Parameters


Item Parameters
Model DS380
Principle Fluorescence analysis method
Measuring range 0~20mg/L or 0-200% saturation
Response time 3 sec
Accuracy 1%
Protection level IP68
Installation Submersible
Temperature sensor NTC
Temperature range 0~50°C
Temperature accuracy ±0.2°C
Output Support RS-485, MODBUS protocol
Power supply DC 6~12V, current <50mA
Size Φ26*155 mm
Probe cable length Default 5 m, customized 10m, 15 m and 30 m cable
Fluorescent cap life 1 year
Maximum working pressure 6bar
product material POM/SS316/Titanium alloy
Calibration method One or Two-point calibration
Power consumption < 0.5 W
























Aquarium Digital Dissolved Oxygen Sensor Fluorescence Analysis Do Sensor Probe 0
