Customizations Industrial Water Suspended Solids Sensor Online Self Cleaning

Basic Information
Place of Origin: China
Brand Name: Desun Uniwill
Model Number: DS450
Minimum Order Quantity: 0-100pcs
Price: 300-500USD
Packaging Details: carton packaging
Delivery Time: 7-15 working days
Payment Terms: L/C, D/A, D/P, T/T
Detail Information
Range Of Measurement: 0.5~1000 Mg/L Distance To The Maximum Depth: 10 Meters Underwater
Accuracy: < 3% Protection Level: IP68
Temperature Range: 0 ~ 50 °C Output Signal: Support RS-485 ,MODBUS Protocol
Installation: Submerged Installation POWER INFO: DC 5~12V, Current <50mA
Material: POM Materials Can Be Customised The Length Of The Cable: 5 Meters (default), Can Be Customized
Model: DS450
High Light:

Customizations Suspended Solids Sensor

,

Suspended Solids Sensor Online

,

water probe sensor Self Cleaning


Product Description

Support for various customizations Industrial Online Free Maintenance Self Cleaning Water SS/TSS/MLSS Sensor

Principle
The TSS sensor adopts fiber optic technology, which provides excellent repeatability and stability and is not easily affected by ambient light. The automatic cleaning wave brush that accompanies the sensor effectively eliminates air bubbles and reduces the effect of contamination on the measurement. It has a long maintenance period and maintains excellent stability for long-term online use

Features
* Digital sensor, RS-485 output, MODBUS support
* Equipped with a self-cleaning brush to prevent the influence of oil on the measurement
* Removal of the influence of ambient light on the measurement through unique optical and electronic filtering technology
* Independent of suspended matter in water
* Lowest possible maintenance
* Decrease in laboratory tests
* Higher sensitivity and selectivity

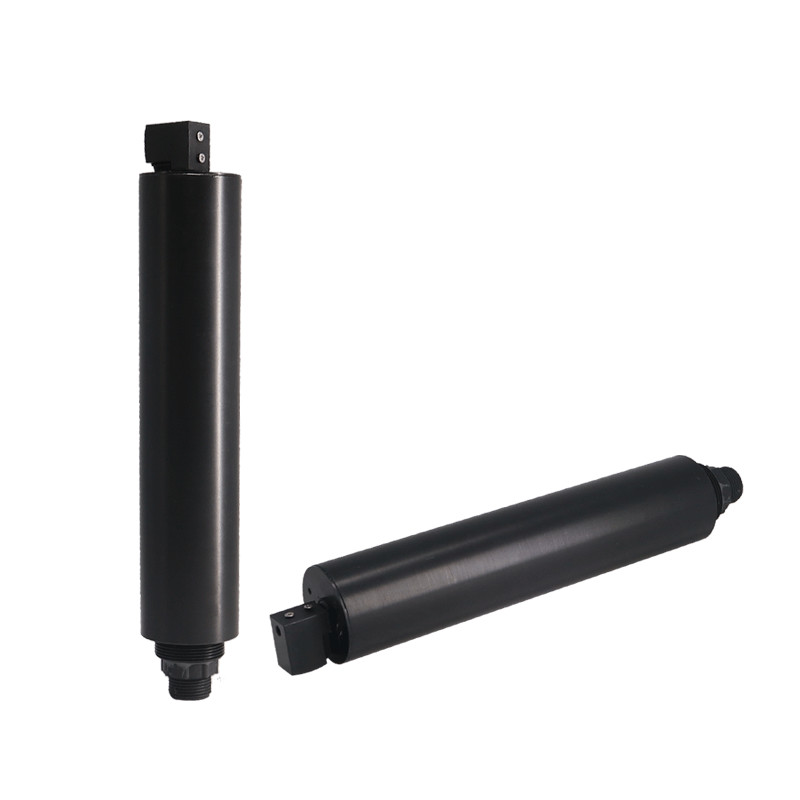

Customizations Industrial Water Suspended Solids Sensor Online Self Cleaning 0

Technical parameter
Product
Fiber optic TSS sensor
Self-cleaning Fiber optic TSS sensor
Model
DS450
DS451
Principle
90° scattered light
Range
0 to 1000 mg/L The range needs to be customized
Precision
0.1NTU
Resolution
<3%
Protection level
Ip68
Output signal
Support RS-485, MODBUS protocol
Installation
Submersible type, Circulation type
Power supply
DC 5~12V, current <50mA (when not cleaned)
Size
Φ45*175.8 mm
Probe cable length
10 meters (default), can be customized
Housing material
POM, SS316
Optical window
Have
Self-cleaning system
No
Have

Company Information



Xi'an Desun Uniwill Electronic Technology Co., Ltd. was established in March 2019,registered capital of 5 million,and is located in Xi'an High-tech Development Zone. Relying on the rich university sources in Xi'an, we are engaged in technical partnership with many universities and scientific research organizations to monitor the water environment.
The company is a high-tech company integrates production, R&D, sales, after-sales service and engineering service.
Multi-parameter water quality sensors (five parameters / seven parameters), optical dissolved oxygen, fiber turbidity, four-electrode conductivity, blue-green algae, chlorophyll, water oil and COD have been introduced. Widely used in water environmental protection, sewage treatment, industrial process monitoring, aquaculture, groundwater monitoring, water plants, petrochemical enterprises, small and medium-sized environmental protection companies, food fermentation and pharmaceuticals. Through water environment monitoring equipment, water quality can be monitored more effectively during processing, discharge and recycling.
We actively innovate, continuously improve our products, and optimize industry application solutions. Based on the current rapid development of IoT technology, we also launched wireless water quality monitoring solutions. Combine intelligent phones, mobile tablets and traditional measuring instruments through wire-free transmission to realize real-time dynamic water quality monitoring system, ocean environment monitoring system, fishery water monitoring system, and provide perfect solutions.

Our Service

* Workshop and process standardization
* Strict expert quality control
* If the product does not satisfy, the return is also supported.
* Quick delivery
* Guarantee for 1 year


FAQ





Q: Is your company a manufacturer??
A: Yeah, we are a manufacturer of professional online water quality monitoring products: Oil in water sensor / Dissolved oxygen sensor / pH sensor / NH4-N sensor / ORP/COD sensor / Blue-green algae sensor / Conductivity sensor / TDS / TSS / MLSS,TOC,etc.

Q: What parameters do I need when choosing a product?
A: Application, Range, Power supply and Output signal.
Q: How about the quality of the managements?
A: We have a whole quality control system in place and our products are subjected to a full pre-test before being shipped to you. We have ISO and CE approvals and we can send you our company's approval tests.
Q: Can you offer OEM services?
A: Yes,we support OEM and ODM products according to your requirements.

Q: What are your terms of payment and delivery time?
A: We could accept T/T, Paypal, Western Union, Credit Assurance. Generally, we will arrange the shipment within 7 days after received payment.
Q: How about warranty?
A: 12 months warranty.
