| Place of Origin: | China |
|---|---|
| Brand Name: | Desun Uniwill |
| Model Number: | DS450 |
| Minimum Order Quantity: | 0-100pcs |
| Price: | 360-500USD |
| Packaging Details: | carton packaging |
| Delivery Time: | 7-15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Measuring Range: | 0.5~4000 Mg/L | Deepest Depth: | 10 Meters Underwater |
|---|---|---|---|
| Precision: | < 3% | Protection Level: | IP68 |
| Temperature Range: | 0 ~ 50 °C | Sensor Interface: | Support RS-485 ,MODBUS Protocol |
| Assembly: | Submerged Installation | Power Information: | DC 5~12V, Current <50mA |
| Housing Material: | POM | ||
| High Light: | 20mA Suspended Solids Sensor,Real Time Suspended Solids Sensor,Ip68 Water Quality Probe |
||
|
Product
|

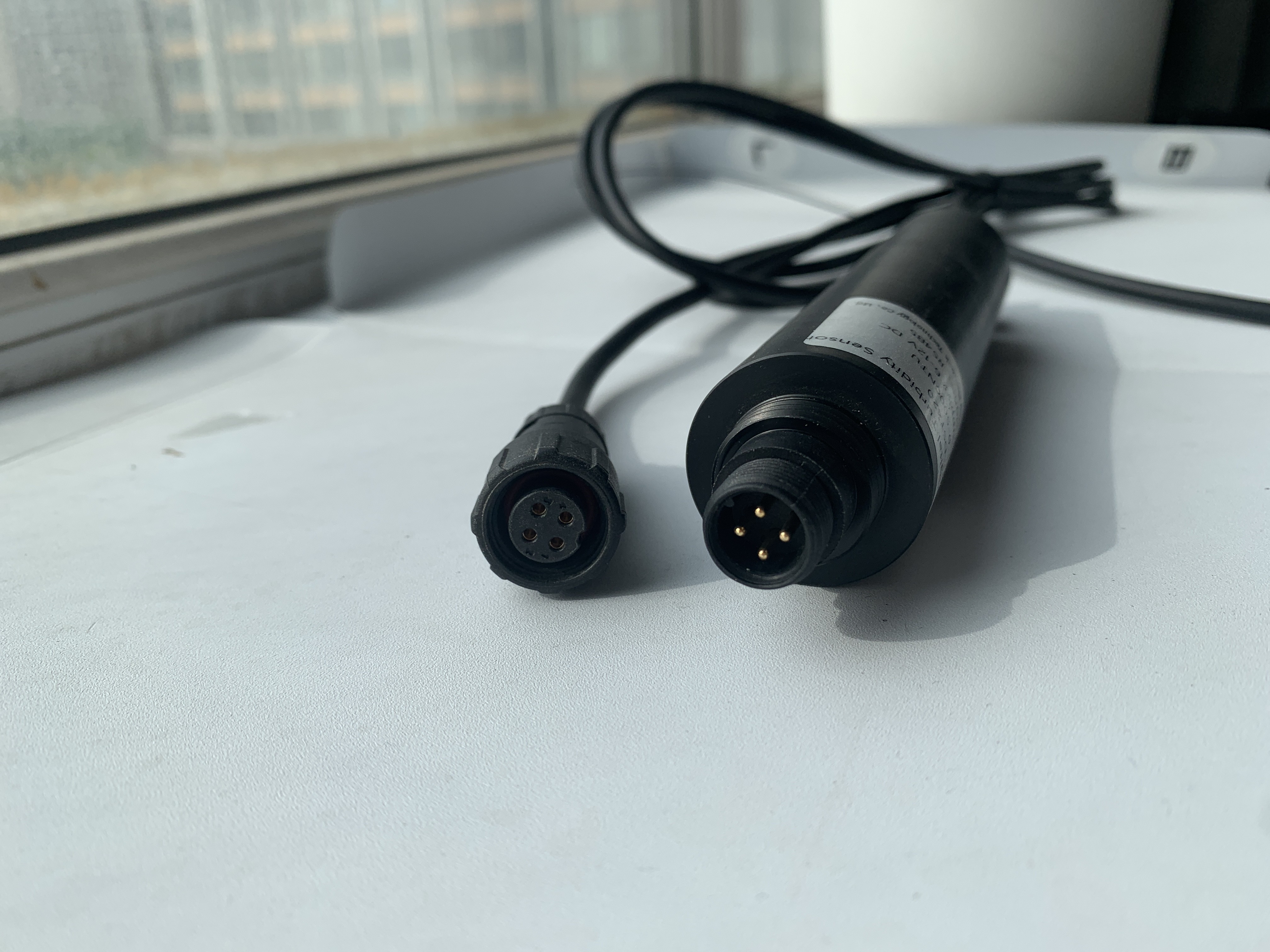

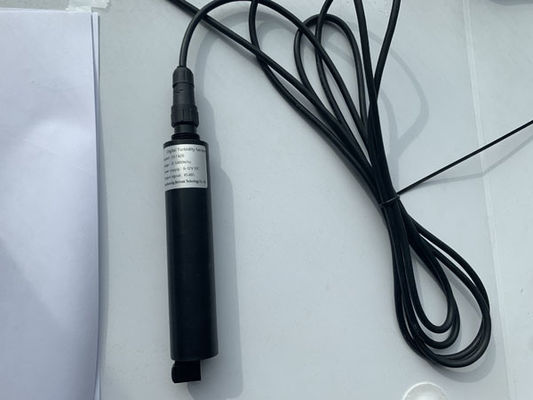

Fiber optic TSS sensor
|
Self-cleaning Fiber optic TSS sensor
|
|
Model
|
DS450
|
DS451
|
|
Principle
|
90° scattered light
|
|
|
Range
|
0 to 1000 NTU
|
|
|
Precision
|
0.1NTU
|
|
|
Resolution
|
<5% or 0.3NTU
|
|
|
Protection level
|
Ip68
|
|
|
Output signal
|
Support RS-485, MODBUS protocol
|
|
|
Installation
|
Submersible type, Circulation type
|
|
|
Power supply
|
DC 5~12V, current <50mA (when not cleaned)
|
|
|
Size
|
Φ45*175.8 mm
|
|
|
Probe cable length
|
10 meters (default), can be customized
|
|
|
Housing material
|
POM, SS316
|
|
|
Optical window
|
Have
|
|
|
Self-cleaning system
|
No
|
Have
|
Frequently Asked Questions
| Error | Possible reason | solution |
|
The operation interface cannot be connected or the measurement result is not displayed. |
Controller and cable connection error |
Reconnect controller and cable |
|
Cable failure |
Please contact us |
|
|
The measured value is too high, too low or the value is continuously unstable |
The sensor window is attached by a foreign object | Cleaning the sensor window surface |
Q: Is your company a manufacturer??
A: Yes,we are a professional manufacturer of online water quality monitoring products: oil in water sensor/ DO sensor/ NH4-N sensor / ORP / COD sensor / Blue-green algae sensor /Conductivity sensor /TDS / TSS /MLSS,ect.
Q: What parameters do you need for product selection?
A: Application, Range, Power supply and Output signal.
Q: How about the quality of the managements?
A: We have a complete quality control system, our products will be fully pre-inspection before shipping to you. We have the certification of ISO, CE, we could send the certification test of our company to you.
Q: Can you offer OEM services?
A: Yes,we support OEM and ODM products according to your requirements.
Q: What are your terms of payment and delivery time?
A: We could accept T/T, Paypal, Western Union, Credit Assurance. Generally, we will arrange the shipment within 7 days after received payment.
Q: How about warranty?
A: 12 months warranty.
