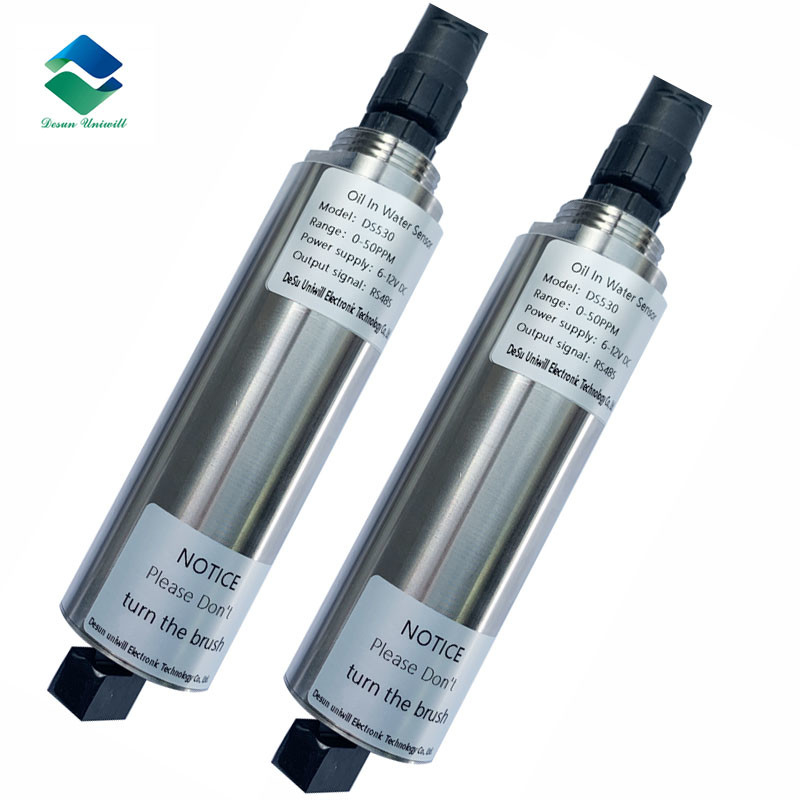

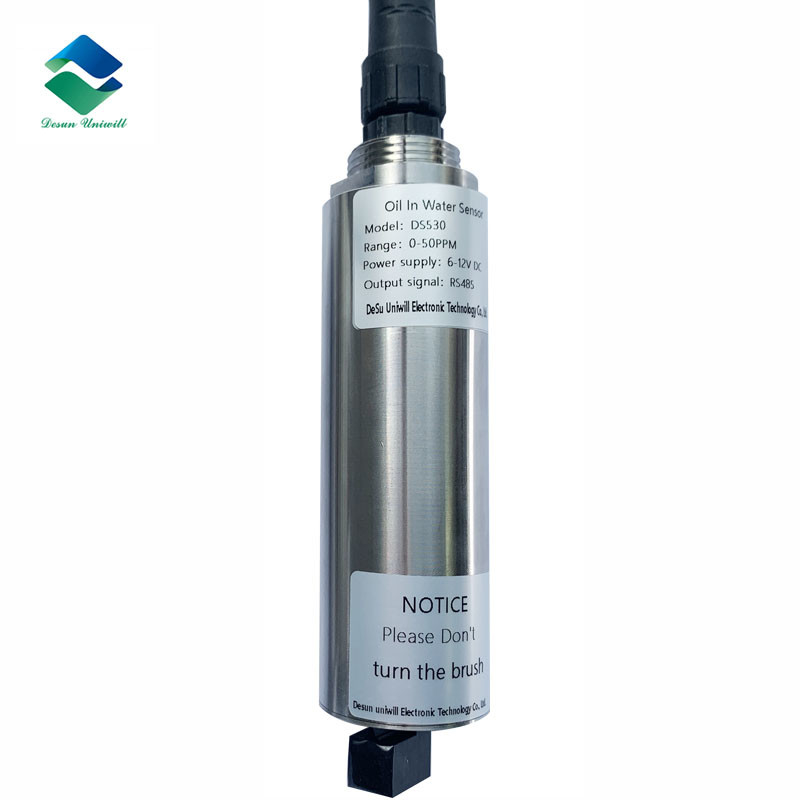

SS316 Oil In Water Sensor For Online Monitoring Of Hydrocarbon In Water

Basic Information
Place of Origin: China
Brand Name: Desun Uniwill
Certification: CE
Model Number: DS530
Minimum Order Quantity: 1
Price: Determined by the number of specific orders
Packaging Details: Carton packaging
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 2000 Piece/Pieces per Month
Detail Information
Output Signal: RS-485, MODBUS Protocol Theory: Ultraviolet Fluorescence Method
Measuring Range: 0~100mg/L Material: SS316 (customizable Titanium Alloy)
Power Supply: DC 6~12V, Current <50mA (when Not Cleaned) Response Time: <5 Sec
Deepest Length: 10 M
High Light:

SS316 Online Oil In Water Sensor

,

RS485 Oil In Water Detection Sensor

,

Hydrocarbon In Water Monitoring Sensor


Product Description

Sensors For Online Monitoring Of Hydrocarbon In Water-Oiw Oil In Water Sensor



Traditional offline methods for oil in water analysis are not only time-consuming but also require significant manual effort. The implementation of the Oil in Water Online Analyzer eliminates the need for frequent laboratory analysis, reducing associated costs. Additionally, the real-time data generated by the analyzer facilitates predictive maintenance, enabling organizations to prevent equipment failures, optimize maintenance schedules, and extend equipment life. This proactive approach not only saves costs on emergency repairs but also improves overall operational reliability.




Product Introduction

Commonly used oil-in-water detection methods include suspension, infrared spectrophotometry (unsuitable for low range), and ultraviolet spectrophotometry(unsuitable for high degree). Our online oil-in-water sensor uses the principle of fluorescence. Compared with several commonly used methods, the fluorescence method is more efficient and quicker and can be monitored in real-time.



The sensor has better repeatability and stability. A self-cleaning brush can be used to eliminate air bubbles, reduce the impact of contamination on the measurement, make the maintenance cycle longer, and maintain excellent stability for long-term online use. It can play an early warningrole on oil pollution in water. Suitable for oil quality monitoring, industrial circulating water, condensate, wastewater treatment, surface water stations, and other water quality monitoring scenarios.


oil in water sensor for crude &  refined oil


Features:



-Digital sensor, RS-485 output, support MODBUS.
-With an automatic cleaning brush to eliminate the impact of oil on the measurement.
-Unaffected by suspended solids in water.
-Eliminate the effects of ambient light on measurements with unique optical and electronic filtering techniques.




Technical parameters

Product Oil in water sensor
Model Number DS530
Max. working pressure 1 bar
Principle Ultraviolet fluorescence method
Response Time <5 sec
 Measuring Range  0-50ppm/0-200ppm or 0-0.40FLU
Precision 3%
Resolution 0.01ppm
Temp range 0-50℃
Linearity R2>0.999
Protection level Ip68
Output signal Support RS-485, MODBUS protocol
Assembly Input type, thread
Power information DC 6~12V, current <50mA (when not cleaned)
Cable length 5 meters (default), can be customized
Housing material SS316 (customizable titanium alloy)
Self-cleaning Brush Have
Optical window Have

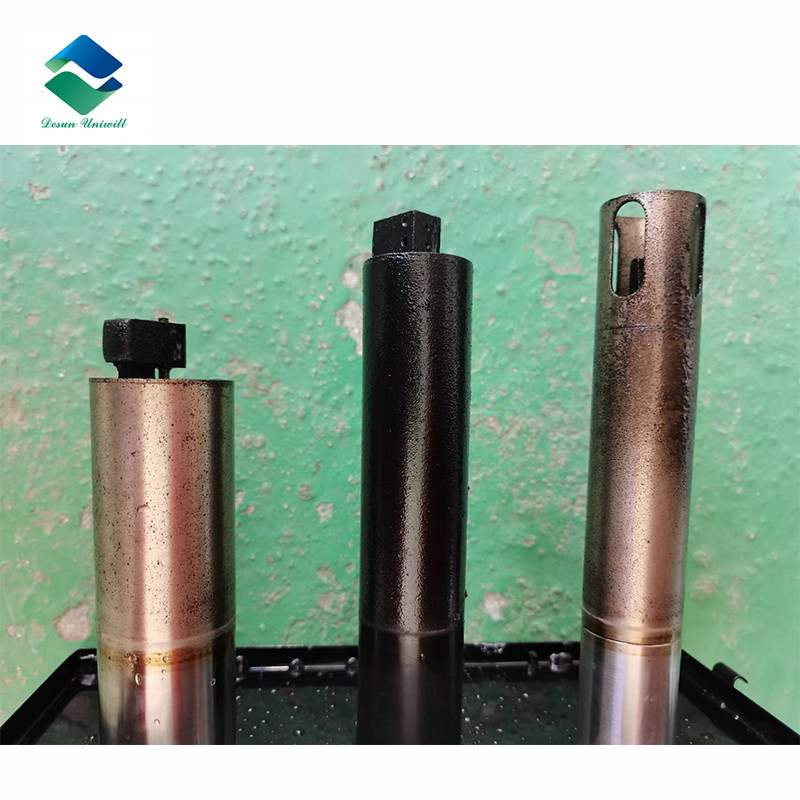

Cases:

Oil in Water Fluorescence Sensor


Desun Uniwill Main Products:

1, Water Quality Sensors:
#Do sensor, #pH sensor, conductivity sensor, turbidity sensor, #COD sensor, #ammonia nitrogen sensor, ORP sensor, #oil in water sensor, chlorophyll sensor, blue-green algae sensor, etc.



2, Water Quality Sensors Controllers:
-Single parameter Controllers
-Four-parameter Controllers



3, Online Multi-parameter Water Quality Sensor
4, Portable Handheld Dissolved Oxygen Meter



5, PAH sensor for Exhaust Gas Cleaning System (EGCS)





Water Quality Sensors
