Hydrocarbon Sensor For Exhaust Gas, Wash Water Monitoring Oil In Water Analyzer

Basic Information
Place of Origin: China
Brand Name: Desun Uniwill
Certification: CE
Model Number: DS530
Minimum Order Quantity: 1
Price: Determined by the number of specific orders
Packaging Details: Carton packaging
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 2000 Piece/Pieces per Month
Detail Information
Output Signal: RS-485, MODBUS Protocol Theory: Ultraviolet Fluorescence Method
Measuring Range: 0~100mg/L Material: SS316 (customizable Titanium Alloy)
Power Supply: DC 6~12V, Current <50mA (when Not Cleaned) Response Time: <5 Sec
Deepest Length: 10 M
High Light:

Exhaust Gas Hydrocarbon Sensor

,

Oil In Wash Water Analyzer

,

Ultraviolet Fluorescence Oil In Water Analyzer


Product Description

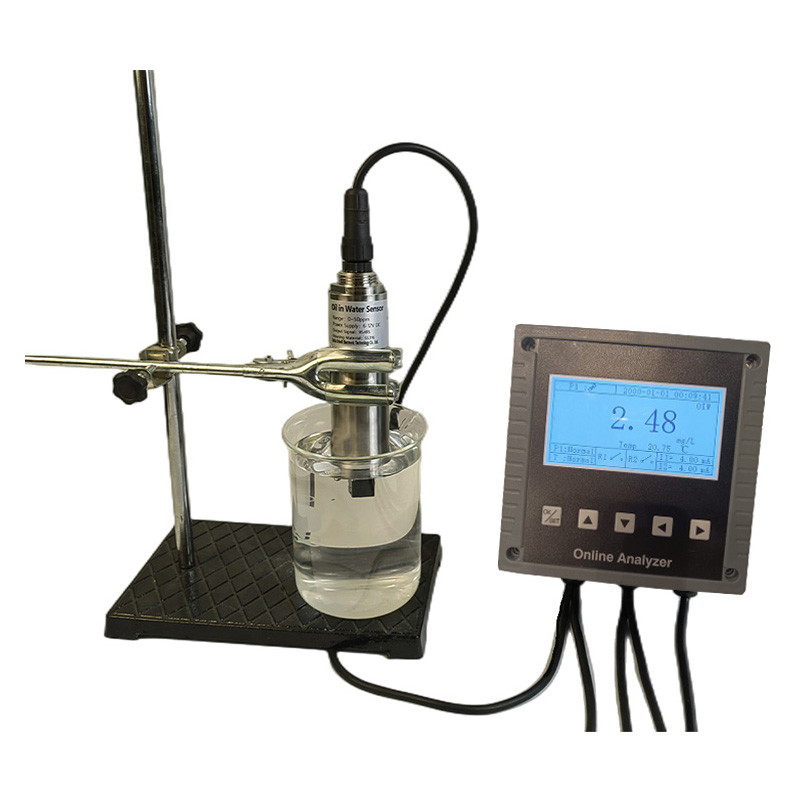

Hydrocarbon Sensor For Exhaust Gas Wash Water Monitoring Oil In Water Analyzer



Efficiency is a key consideration for industries relying on water for various production processes. The Oil in Water Online Analyzer enables operators to quickly identify oil contamination issues, enabling prompt corrective actions. With instantaneous detection, unnecessary downtime, and production delays are significantly minimized. Additionally, this advanced technology aids in optimizing water treatment processes, reducing excess chemical usage, and improving overall operational efficiency.


Product Introduction

Commonly used oil-in-water detection methods include suspension, infrared spectrophotometry (unsuitable for low range), and ultraviolet spectrophotometry(unsuitable for high degree). Our online oil-in-water sensor uses the principle of fluorescence. Compared with several commonly used methods, the fluorescence method is more efficient and quicker and can be monitored in real-time.



The sensor has better repeatability and stability. A self-cleaning brush can be used to eliminate air bubbles, reduce the impact of contamination on the measurement, make the maintenance cycle longer, and maintain excellent stability for long-term online use. It can play an early warningrole on oil pollution in water. Suitable for oil quality monitoring, industrial circulating water, condensate, wastewater treatment, surface water stations, and other water quality monitoring scenarios.


oil in water sensor for crude &  refined oil


Features:



-Digital sensor, RS-485 output, support MODBUS.
-With an automatic cleaning brush to eliminate the impact of oil on the measurement.
-Unaffected by suspended solids in water.
-Eliminate the effects of ambient light on measurements with unique optical and electronic filtering techniques.




Technical parameters

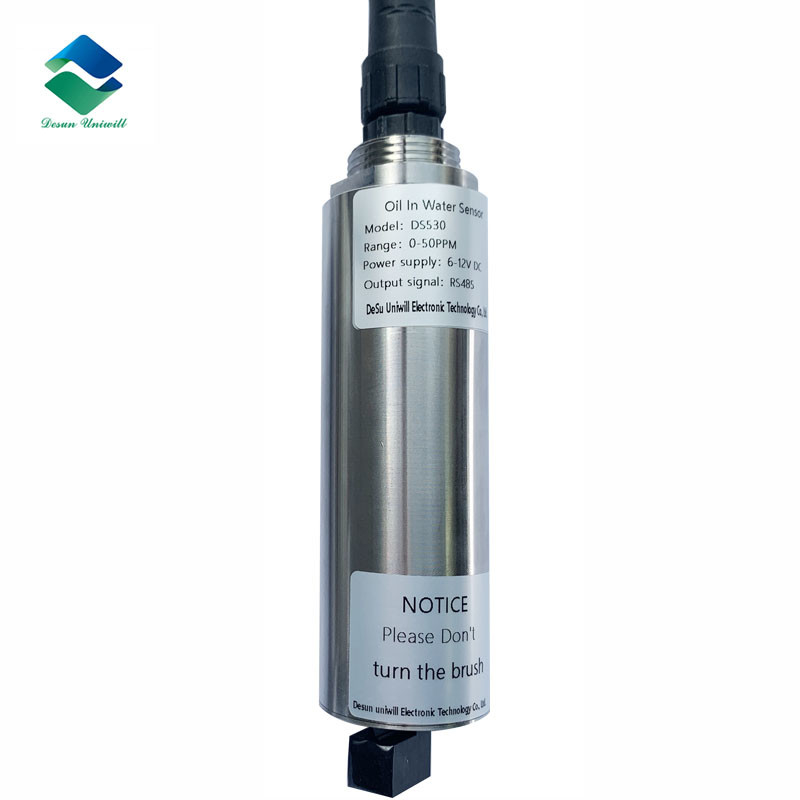

Product Oil in water sensor
Model Number DS530
Max. working pressure 1 bar
Principle Ultraviolet fluorescence method
Response Time <5 sec
 Measuring Range  0-50ppm/0-200ppm or 0-0.40FLU
Precision 3%
Resolution 0.01ppm
Temp range 0-50℃
Linearity R2>0.999
Protection level Ip68
Output signal Support RS-485, MODBUS protocol
Assembly Input type, thread
Power information DC 6~12V, current <50mA (when not cleaned)
Cable length 5 meters (default), can be customized
Housing material SS316 (customizable titanium alloy)
Self-cleaning Brush Have
Optical window Have

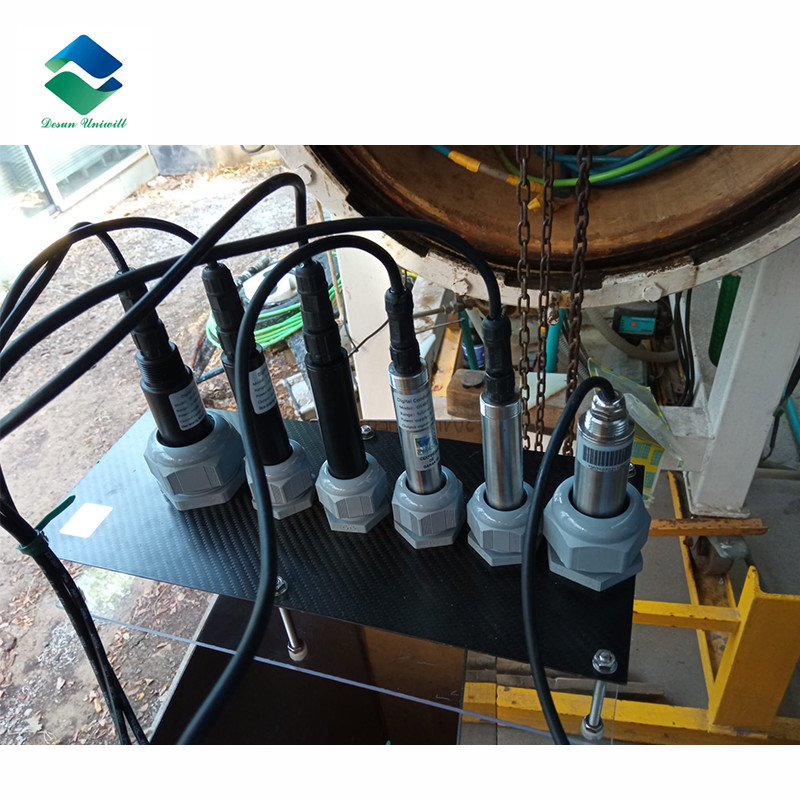

Cases:

Oil in Water Fluorescence Sensor


Desun Uniwill Water quality sensors are designed to provide accurate and reliable measurements of water quality parameters, allowing for effective monitoring and management of water resources. They are commonly used in various industries and applications, including environmental monitoring, water treatment plants, aquaculture, industrial processes, and research laboratories.
