Output Signal: | RS-485, MODBUS Protocol | Theory: | Ultraviolet Fluorescence Method |
---|---|---|---|
Measuring Range: | 0~100mg/L | Material: | SS316 (customizable Titanium Alloy) |
Power Supply: | DC 6~12V, Current <50mA (when Not Cleaned) | Response Time: | <5 Sec |
Deepest Length: | 10 M | ||
High Light: | Online Hydrocarbon In Water Sensor,Oil In Water Online Analyzer |
The quantitative analysis of oil content in water is a critical process across various industries, such as petrochemical, power generation, and environmental monitoring. To accurately measure oil concentration and ensure compliance with strict regulations, organizations turn to advanced technology solutions like the Oil in Water Online Analyzer. This cutting-edge tool not only provides real-time monitoring but also offers numerous benefits, including enhanced efficiency, reduced costs, and improved environmental protection.
Product Introduction
Commonly used oil-in-water detection methods include suspension, infrared spectrophotometry (unsuitable for low range), and ultraviolet spectrophotometry(unsuitable for high degree). Our online oil-in-water sensor uses the principle of fluorescence. Compared with several commonly used methods, the fluorescence method is more efficient and quicker and can be monitored in real-time.
The sensor has better repeatability and stability. A self-cleaning brush can be used to eliminate air bubbles, reduce the impact of contamination on the measurement, make the maintenance cycle longer, and maintain excellent stability for long-term online use. It can play an early warningrole on oil pollution in water. Suitable for oil quality monitoring, industrial circulating water, condensate, wastewater treatment, surface water stations, and other water quality monitoring scenarios.
Features:
-Digital sensor, RS-485 output, support MODBUS.
-With an automatic cleaning brush to eliminate the impact of oil on the measurement.
-Unaffected by suspended solids in water.
-Eliminate the effects of ambient light on measurements with unique optical and electronic filtering techniques.

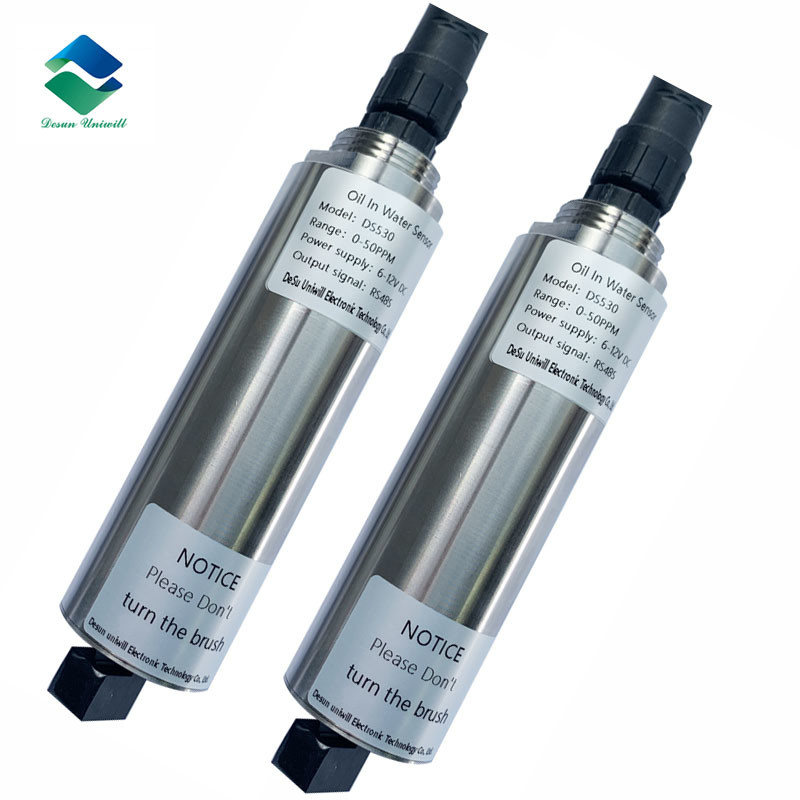

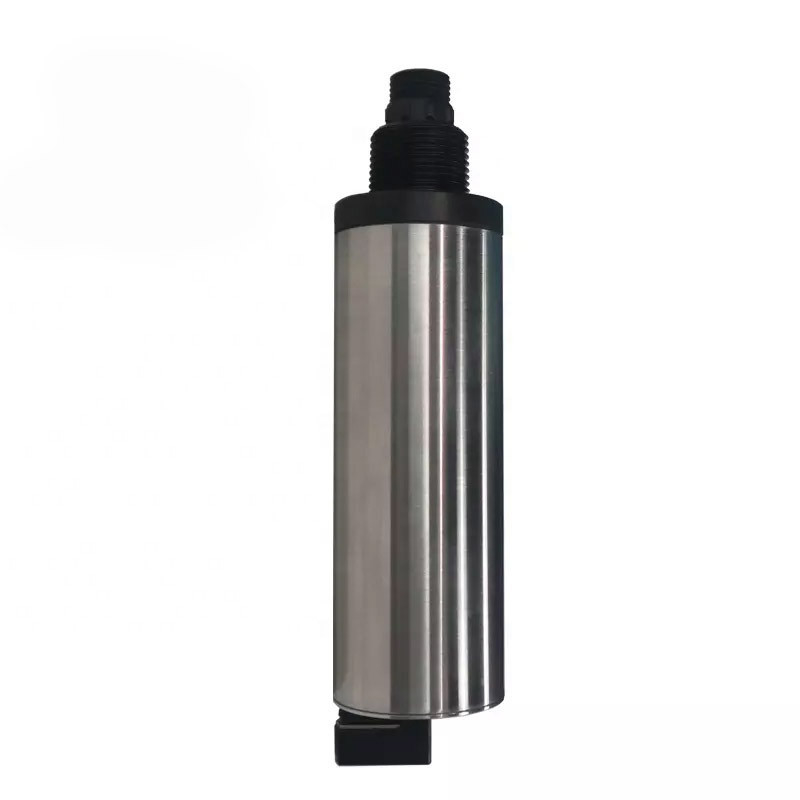

Product | Oil in water sensor |
Model Number | DS530 |
Max. working pressure | 1 bar |
Principle | Ultraviolet fluorescence method |
Response Time | <5 sec |
Measuring Range | 0-50ppm/0-200ppm or 0-0.40FLU |
Precision | 3% |
Resolution | 0.01ppm |
Temp range | 0-50℃ |
Linearity | R2>0.999 |
Protection level | Ip68 |
Output signal | Support RS-485, MODBUS protocol |
Assembly | Input type, thread |
Power information | DC 6~12V, current <50mA (when not cleaned) |
Cable length | 5 meters (default), can be customized |
Housing material | SS316 (customizable titanium alloy) |
Self-cleaning Brush | Have |
Optical window | Have |
