Detecting Oil Concentrations In Rain Water Sensor For Crude And Refined Oil

Basic Information
Place of Origin: China
Brand Name: Desun Uniwill
Certification: CE
Model Number: DS530
Minimum Order Quantity: 1
Price: Determined by the number of specific orders
Packaging Details: Carton packaging
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 2000 Piece/Pieces per Month
Detail Information
Output Signal: RS-485, MODBUS Protocol Theory: Ultraviolet Fluorescence Method
Measuring Range: 0~100mg/L Material: SS316 (customizable Titanium Alloy)
Power Supply: DC 6~12V, Current <50mA (when Not Cleaned) Response Time: <5 Sec
Deepest Length: 10 M
High Light:

SS316 Crude In Water Sensor

,

Refined Oil In Water Sensor

,

Oil In Rain Water Monitors RS485


Product Description

Detecting Oil Concentrations In Rain Water-Oil In Water Monitors Oil In Water Sensor For Crude & Refined Oil

The measuring range of an oil-in-water sensor refers to the range of oil concentrations it can detect accurately. Ensure that the sensor you choose covers the range of oil concentrations you need to monitor. Some sensors are more suitable for trace-level detection, while others excel in high-concentration environments. The Measuring Range of Desun Uniwill online oil in water sensor is 0-50ppm.


Product Introduction

Commonly used oil-in-water detection methods include suspension, infrared spectrophotometry (unsuitable for low range), and ultraviolet spectrophotometry(unsuitable for high degree). Our online oil-in-water sensor uses the principle of fluorescence. Compared with several commonly used methods, the fluorescence method is more efficient and quicker and can be monitored in real-time.



The sensor has better repeatability and stability. A self-cleaning brush can be used to eliminate air bubbles, reduce the impact of contamination on the measurement, make the maintenance cycle longer, and maintain excellent stability for long-term online use. It can play an early warningrole on oil pollution in water. Suitable for oil quality monitoring, industrial circulating water, condensate, wastewater treatment, surface water stations, and other water quality monitoring scenarios.


oil in water sensor for crude &  refined oil


Features:



-Digital sensor, RS-485 output, support MODBUS.
-With an automatic cleaning brush to eliminate the impact of oil on the measurement.
-Unaffected by suspended solids in water.
-Eliminate the effects of ambient light on measurements with unique optical and electronic filtering techniques.




Technical parameters

Product Oil in water sensor
Model Number DS530
Max. working pressure 1 bar
Principle Ultraviolet fluorescence method
Response Time <5 sec
 Measuring Range  0-50ppm/0-200ppm or 0-0.40FLU
Precision 3%
Resolution 0.01ppm
Temp range 0-50℃
Linearity R2>0.999
Protection level Ip68
Output signal Support RS-485, MODBUS protocol
Assembly Input type, thread
Power information DC 6~12V, current <50mA (when not cleaned)
Cable length 5 meters (default), can be customized
Housing material SS316 (customizable titanium alloy)
Self-cleaning Brush Have
Optical window Have

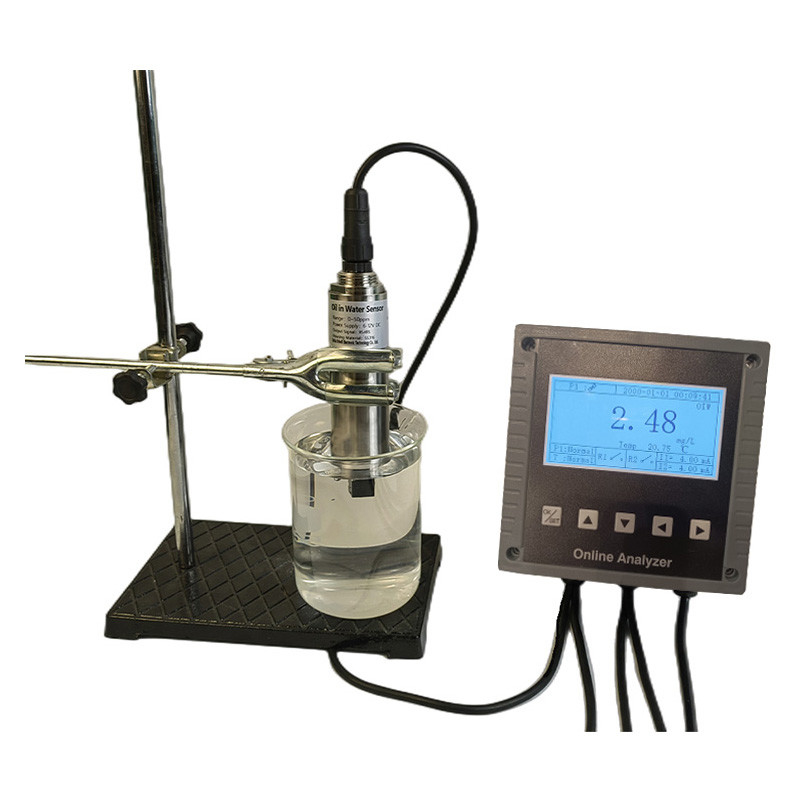

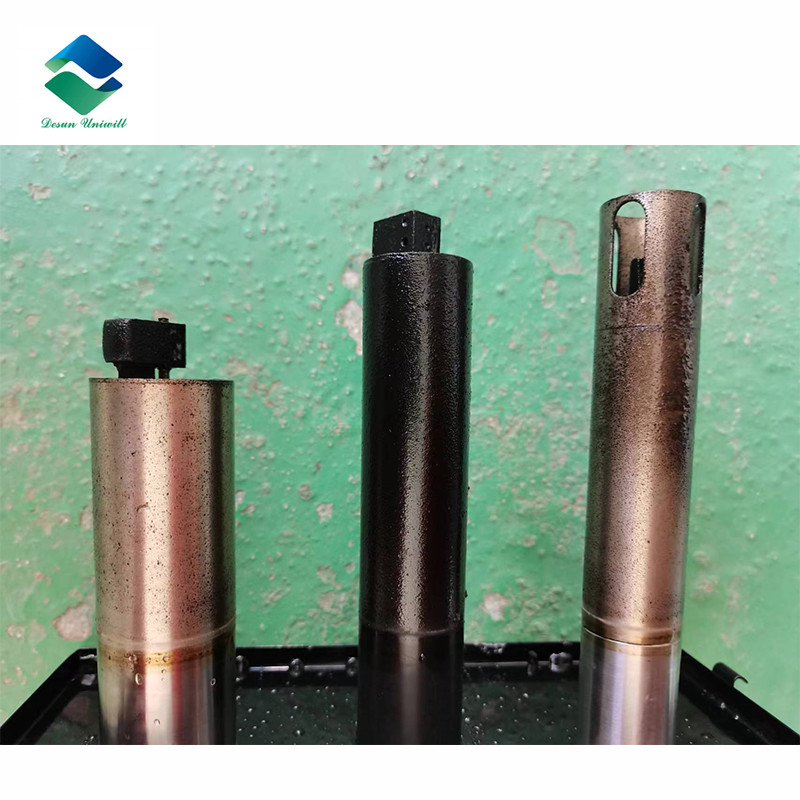

Cases:

Oil in Water Fluorescence Sensor


Desun Uniwill specializes in manufacturing all kinds of water quality sensors. We are a professional electrochemical instrumentation and electrode manufacturer combined with R&D, production, and sales. We have a professional production process and CNC machining center, which can meet various customized needs of customers. At present, the monthly production capacity can reach 1,500 sensors.



Our main products include dissolved oxygen sensor, PH sensor, ORP sensor, turbidity sensor, conductivity sensor, COD sensor, ammonia nitrogen sensor, sludge concentration sensor, chlorophyll sensor, blue-green algae sensor, oil in water sensor, nitrate sensor, multi-parameter water quality sensor, etc. With an experienced and professional team, we have exported our products to more than 30 countries and regions worldwide, especially in South America and Southeast Asia.



Desun Uniwill Water quality sensors are designed to provide accurate and reliable measurements of water quality parameters, allowing for effective monitoring and management of water resources. They are commonly used in various industries and applications, including environmental monitoring, water treatment plants, aquaculture, industrial processes, and research laboratories.
