| Place of Origin: | China |
|---|---|
| Brand Name: | Desun Uniwill |
| Certification: | CE |
| Model Number: | DS-500 |
| Minimum Order Quantity: | 0~100 pcs |
| Price: | $1000.00 - $3000.00/ Piece |
| Packaging Details: | Carton packaging |
| Delivery Time: | 7~ 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 0~1000 pcs |
| Output Signa: | RS-485, MODBUS Protocol | Range: | BOD 1.5 To 410mg/l Equiv KHP, COD 2.5 To 1000 Mg/l Equiv. KHP |
|---|---|---|---|
| Accuracy: | 0.01mg/L COD | Temperature Range: | +5 ~ 45°C |
| IP Grade: | IP68 | Calibration: | 1 Or 2 Point Calibration |
| Power Supply: | DC 12V +/-5%, Current <50mA (when There Is No Cleaning Brush) | Sensor Size: | 54*325.5 Mm |
| Cable Length: | Default 5 M | Housing Material: | SS316L |
| Highlight: | TOC Probe COD Analyzer,BOD Probe Chemical Oxygen Demand Sensor |
||
The process of measuring COD, BOD, and TSS in wastewater typically involves taking a sample of the water and analyzing it in a laboratory. However, this process is time-consuming and can delay decision-making in the treatment process. Online analyzers provide a more efficient solution by continuously monitoring the water and providing real-time data.
Online analyzers are typically installed at key points in the treatment process, such as at the inlet and outlet of the treatment plant, or at specific points in the treatment process where adjustments may be needed. The analyzers are connected to a control system that can automatically adjust the treatment process based on the data provided by the analyzers.

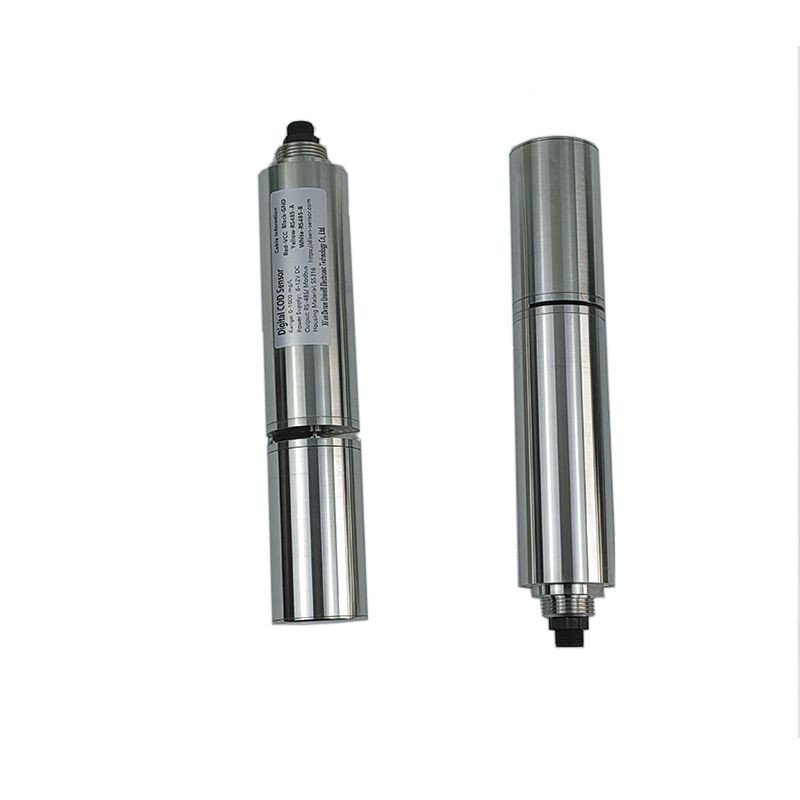

The optical method online COD sensor (Chemical oxygen demand sensor) is more economical and environmentally friendly than the traditional chemical method. Small in size, easy to install, and can be used for continuous online water quality monitoring. Automatic compensation for turbidity disturbances, with automatic cleaning device, optional titanium alloy (corrosion resistant).
COD sensors are mainly used for monitoring rivers, lakes, sewage, and other types of surface water, etc., and can be easily integrated into water quality monitoring systems to meet customer needs.
* Digital sensor, RS-485 output, support MODBUS
* No reagents, no pollution, more economical and environmentally friendly
* Can measure SAC, COD, TOC, and other parameters
* Automatic compensation for turbidity interference for excellent test performance
| Product name | COD sensor |
|---|---|
| Detection principle | UV245nm UV Optics |
| Measurement range DS500 (6 mm gap) |
COD 0 ~ 500 mg/lL TSS 0~600 mg/L BOD 0~300 mg / L |
| Measurement range DS500 (6 mm gap) |
COD 0 ~ 2000 mg/lL TSS 0~1000 mg/L BOD 0~1000 mg / L |
| Measurement range DS501 (1 mm gap) |
COD 6000~10000 mg/lL TSS 0~5000 mg/L BOD 0~5000 mg / L |
| Measurement accuracy | ±5% |
| Resolution | 0.01mg/L |
| Optical path | 1mm,6mm,10mm |
| Temperature range | 0~45℃ |
| Stored temperature | -40~80℃ |
| Output signal | RS-485, MODBUS protocol |
| Calibration method | 1 or 2 points |
| Automatic cleaning | Built-in cleaning brush |
| Waterproof level | IP68 |
|---|---|
| Under pressure | 1bar |
| Product material | 316/POM/Titanium alloy |
| Product Size | ∅46×218mm |
| Power information | DC 6~12V,Current <10mA |
| Cable length | Standard 5 meters |
Desun Uniwill Water quality sensors are designed to provide accurate and reliable measurements of water quality parameters, allowing for effective monitoring and management of water resources. They are commonly used in various industries and applications, including environmental monitoring, water treatment plants, aquaculture, industrial processes, and research laboratories.
