| Place of Origin: | China |
|---|---|
| Brand Name: | Desun Uniwill |
| Certification: | CE |
| Model Number: | DS-500 |
| Minimum Order Quantity: | 0~100 pcs |
| Price: | $1000.00 - $3000.00/ Piece |
| Packaging Details: | Carton packaging |
| Delivery Time: | 7~ 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 0~1000 pcs |
| Output Signa: | RS-485, MODBUS Protocol | Range: | BOD 1.5 To 410mg/l Equiv KHP, COD 2.5 To 1000 Mg/l Equiv. KHP |
|---|---|---|---|
| Accuracy: | 0.01mg/L COD | Temperature Range: | +5 ~ 45°C |
| IP Grade: | IP68 | Calibration: | 1 Or 2 Point Calibration |
| Power Supply: | DC 12V +/-5%, Current <50mA (when There Is No Cleaning Brush) | Sensor Size: | 54*325.5 Mm |
| Cable Length: | Default 5 M | Housing Material: | SS316L |
| High Light: | SS316L Cod Sensor,RS485 Online Cod Sensor,Water Treatment Bod Sensor |
||
Many organic substances dissolved in water absorb ultraviolet light. Therefore, the total amount of organic pollutants in water can be measured by measuring the absorption of these organic substances by ultraviolet light at a wavelength of 254 nm. DS500 series sensors use two light sources, one 254nm ultraviolet light and one 850nm infrared light, which can automatically compensate for the optical path attenuation and turbidity effects, thus achieving more stable and reliable measurement values.

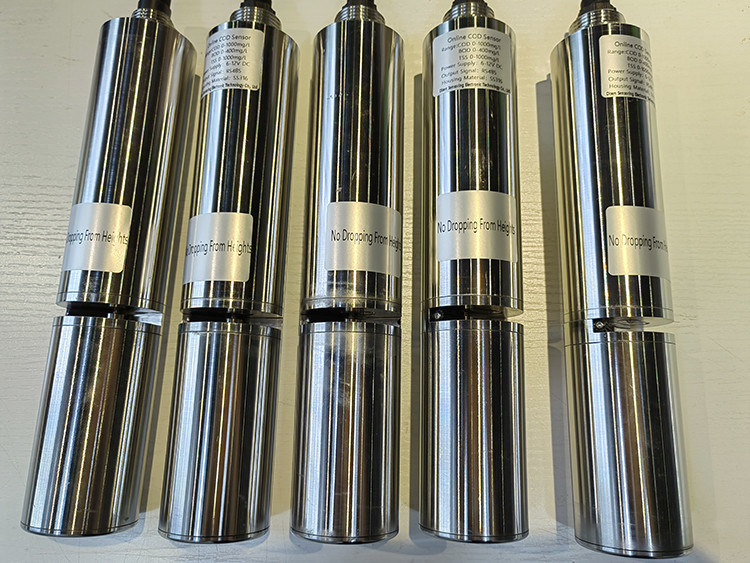

The optical method online COD sensor (Chemical oxygen demand sensor) is more economical and environmentally friendly than the traditional chemical method. Small in size, easy to install, and can be used for continuous online water quality monitoring. Automatic compensation for turbidity disturbances, with automatic cleaning device, optional titanium alloy (corrosion resistant).
COD sensors are mainly used for monitoring rivers, lakes, sewage, and other types of surface water, etc., and can be easily integrated into water quality monitoring systems to meet customer needs.
* Digital sensor, RS-485 output, support MODBUS
* No reagents, no pollution, more economical and environmentally friendly
* Can measure SAC, COD, TOC, and other parameters
* Automatic compensation for turbidity interference for excellent test performance
| Product name | COD sensor |
|---|---|
| Detection principle | UV245nm UV Optics |
| Measurement range DS500 (6 mm gap) |
COD 0 ~ 500 mg/lL TSS 0~600 mg/L BOD 0~300 mg / L |
| Measurement range DS500 (6 mm gap) |
COD 0 ~ 2000 mg/lL TSS 0~1000 mg/L BOD 0~1000 mg / L |
| Measurement range DS501 (1 mm gap) |
COD 6000~10000 mg/lL TSS 0~5000 mg/L BOD 0~5000 mg / L |
| Measurement accuracy | ±5% |
| Resolution | 0.01mg/L |
| Optical path | 1mm,6mm,10mm |
| Temperature range | 0~45℃ |
| Stored temperature | -40~80℃ |
| Output signal | RS-485, MODBUS protocol |
| Calibration method | 1 or 2 points |
| Automatic cleaning | Built-in cleaning brush |
| Waterproof level | IP68 |
|---|---|
| Under pressure | 1bar |
| Product material | 316/POM/Titanium alloy |
| Product Size | ∅46×218mm |
| Power information | DC 6~12V,Current <10mA |
| Cable length | Standard 5 meters |
Desun Uniwill Water quality sensors are designed to provide accurate and reliable measurements of water quality parameters, allowing for effective monitoring and management of water resources. They are commonly used in various industries and applications, including environmental monitoring, water treatment plants, aquaculture, industrial processes, and research laboratories.
Desun Uniwill specializes in manufacturing all kinds of water quality sensors. We are a professional electrochemical instrumentation and electrode manufacturer combined with R&D, production, and sales. We have a professional production process and CNC machining center, which can meet various customized needs of customers. At present, the monthly production capacity can reach 1,500 sensors.
