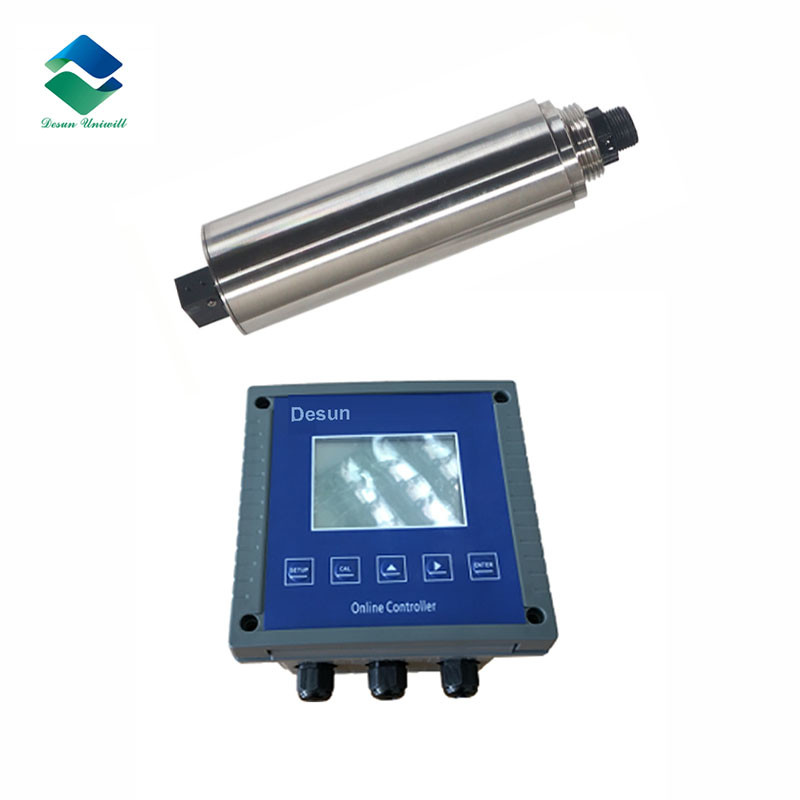

DS530 Oil In Water Analyzer SS316 Oil In Water Sensor Probe

Basic Information
Place of Origin: China
Brand Name: Desun Uniwill
Certification: CE
Model Number: DS530
Minimum Order Quantity: 1
Price: Determined by the number of specific orders
Packaging Details: Carton packaging
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 2000 Piece/Pieces per Month
Detail Information
Output Signal: RS-485, MODBUS Protocol Theory: Ultraviolet Fluorescence Method
Measuring Range: 0~100mg/L Material: SS316 (customizable Titanium Alloy)
Power Supply: DC 6~12V, Current <50mA (when Not Cleaned) Response Time: <5 Sec
Deepest Length: 10 M
High Light:

DS530 Oil In Water Analyzer

,

SS316 Oil In Water Analyser

,

Oil In Water Sensor Probe


Product Description

Factory Price Oil in Water Analyzer DS530 Oil in Water Sensor Probe



Desun oil in water sensors is a critical instrument used in a wide range of industries and applications to ensure environmental compliance and to protect natural water bodies from pollution. They play an important role in preventing pollution and maintaining a healthy environment for all living organisms.


Product Introduction

Commonly used oil-in-water detection methods include suspension, infrared spectrophotometry (unsuitable for low range), and ultraviolet spectrophotometry(unsuitable for high degree). Our online oil-in-water sensor uses the principle of fluorescence. Compared with several commonly used methods, the fluorescence method is more efficient and quicker and can be monitored in real-time.



The sensor has better repeatability and stabilitySelf-cleaning brush can be used to eliminate air bubbles, reduce the impact of contamination on the measurement, make the maintenance cycle longer, and maintain excellent stability for long-term online use. It can play an early warningrole on oil pollution in water. Suitable for oil quality monitoring, industrial circulating water, condensate, wastewater treatment, surface water stations, and other water quality monitoring scenarios.


Oil in Water Detection Sensor


Features:



-Digital sensor, RS-485 output, support MODBUS.
-With an automatic cleaning brush to eliminate the impact of oil on the measurement.
-Unaffected by suspended solids in water.
-Eliminate the effects of ambient light on measurements with unique optical and electronic filtering techniques.




Technical parameters

Product Oil in water sensor
Model Number DS530
Max. working pressure 1 bar
Principle Ultraviolet fluorescence method
Response Time <5 sec
 Measuring Range  0-50ppm/0-200ppm or 0-0.40FLU
Precision 3%
Resolution 0.01ppm
Temp range 0-50℃
Linearity R2>0.999
Protection level Ip68
Output signal Support RS-485, MODBUS protocol
Assembly Input type, thread
Power information DC 6~12V, current <50mA (when not cleaned)
Cable length 5 meters (default), can be customized
Housing material SS316 (customizable titanium alloy)
Self-cleaning Brush Have
Optical window Have























Cases:

Oil in Water Fluorescence Sensor


Sensor maintenance



1) Sensor outer surface: Wash the outer surface of the sensor with tap water. If there is still debris, wipe it with a damp soft cloth. For some stubborn dirt, you can add some household washing liquid to the tap water to clean it.


2) Measuring the outer surface of the window: use tap water to clean the outer surface of the sensor. For some stubborn dirt, you can use traditional detergent and a soft cloth to clean it.


3) Check the cable of the sensor: the cable should not be tightened during normal operation, otherwise the internal wires of the cable will be easily broken, causing the sensor to not work normally.



DS530  Oil In Water Analyzer SS316 Oil In Water Sensor Probe 2
