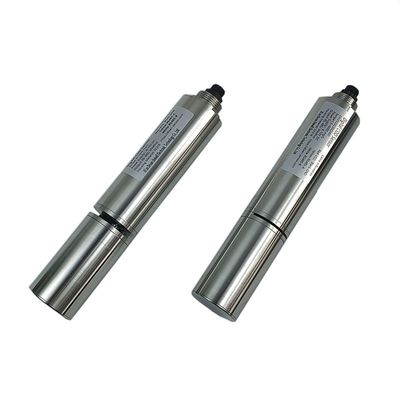

Inline BOD / COD Probe Chemical Oxygen Demand Probe

Basic Information
Place of Origin: China
Brand Name: Desun Uniwill
Certification: CE
Model Number: DS-500
Minimum Order Quantity: 0~100 pcs
Price: $1000.00 - $3000.00/ Piece
Packaging Details: Carton packaging
Delivery Time: 7~ 15 working days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 0~1000 pcs
Detail Information
Output Signa: RS-485, MODBUS Protocol Range: BOD 1.5 To 410mg/l Equiv KHP, COD 2.5 To 1000 Mg/l Equiv. KHP
Accuracy: 0.01mg/L COD Temperature Range: +5 ~ 45°C
IP Grade: IP68 Calibration: 1 Or 2 Point Calibration
Power Supply: DC 12V +/-5%, Current <50mA (when There Is No Cleaning Brush) Sensor Size: 54*325.5 Mm
Cable Length: Default 5 M Housing Material: SS316L
High Light:

RS485 COD Probe


IP68 BOD Probe


Inline Chemical Oxygen Demand Probe

Product Description

Hot Sale Inline BOD COD Probe Chemical Oxygen Demand Probe


Wastewater treatment plays a vital role in maintaining environmental sustainability and public health. Central to effective wastewater treatment is the measurement and control of key parameters such as chemical oxygen demand (COD) and biochemical oxygen demand (BOD). These parameters provide valuable insights into the organic and chemical composition of wastewater and help determine the appropriate treatment processes. The use of COD and BOD sensors in wastewater treatment is of utmost importance.


COD sensors are mainly used for monitoring rivers, lakes, sewage, and other types of surface water, etc., and can be easily integrated into water quality monitoring systems to meet customer needs.


COD Sensor Application



COD Sensor Introduction


The optical method online COD sensor is more economical and environmentally friendly than the traditional chemical method. Small in size, easy to install, and can be used for continuous online water quality monitoring. Automatic compensation for turbidity disturbances, with automatic cleaning device, optional titanium alloy (corrosion resistant).



COD Sensor Feature


1, Digital sensor, RS-485 output, supports MODBUS.

2, Can measure COD, BOD, TSS, and temperature parameters.

3, No reagents, no pollution, more economical and environmentally friendly.

4, Small in size and easy to install, water quality monitoring can be performed online.
5, It automatically compensates for turbidity interference and has excellent test performance.

6, Internal rotation cleaning brush for pipe self-cleaning and submersible self-cleaning



Technical parameters



Product name COD sensor
Detection principle UV245nm UV Optics
Measurement range
(6 mm gap)
COD 0 ~ 500 mg/lL
TSS 0~600 mg/L
BOD 0~300 mg / L
Measurement range
(6 mm gap)
COD 0 ~ 2000 mg/lL
TSS 0~1000 mg/L
BOD 0~1000 mg / L
Measurement range
(1 mm gap)
COD 6000~10000 mg/lL
TSS 0~5000 mg/L
BOD 0~5000 mg / L
Measurement accuracy ±5%
Resolution 0.01mg/L
Optical path 1mm,6mm,10mm
Temperature range 0~45℃
Stored temperature -40~80℃
Output signal RS-485,MODBUS protocol
Calibration method 1 or 2 points
Automatic cleaning Built-in cleaning brush
Waterproof level IP68
Under pressure 1bar
Product material 316/POM/Titanium alloy
Product Size ∅46×218mm
Power information DC 6~12V,Current <10mA
Cable length Standard 5 meters















































COD Sensor Cases:


Chemical Oxygen Demand Sensor
