Ultraviolet fluorescence Oil In Water Sensor 0.1ppm Oil In Water Detectors

Basic Information
Brand Name: Desun Uniwill
Model Number: DS530
Minimum Order Quantity: 1
Price: Determined by the number of specific orders
Packaging Details: Carton packaging
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 2000 Piece/Pieces per Month
Detail Information
Place Of Origin: Shaanxi, China Product Name: Water Quality Sensor
Brand: Desun Uniwill Sensor Interface: Support RS-485, MODBUS Protocol
Method: Ultraviolet Fluorescence Method Precision: ±2%
Material: 316L (customizable Titanium Alloy) Resolution: 0.1ppm Or 0.1ppb
Power Information: DC 6~12V, Current <50mA The Detection Limit: According To The Actual Oil Sample
High Light:

Ultraviolet fluorescence Oil In Water Sensor

,

Oil In Water Sensor 0.1ppm

,

Ultraviolet fluorescence Oil In Water Detectors


Product Description

Online Oil In Water Sensor High Quality Oil In Water Detectors

Product Description



Principle

The oil content in the water was monitored by ultraviolet fluorescence method, and the
concentration of oil in the water was quantitatively analyzed according to the fluorescence
intensity of the oil and its aromatic hydrocarbon compound and the conjugated double
bond compound absorbing ultraviolet light. The aromatic hydrocarbons in petroleum can
generate fluorescence under the excitation of ultraviolet light, and calculate the value of oil
in water according to the intensity of fluorescence.



Technical parameters
Product Oil in water sensor
Measured parameter Oil in water, temperature
Model Number DS530
Principle Ultraviolet fluorescence method
Measuring Range 0-50ppm/0-200ppm or 0-0.40FLU
Precision 3%
Resolution 0.01ppm or 0.01ppb
The detection limit According to the actual oil sample
Linearity R2>0.999
Protection level Ip68
Output signal Support RS-485, MODBUS protocol
Assembly Input type,thread
Power information DC 6~12V, current <50mA (when not cleaned)
Probe cable length 5 meters (default), can be customized
Housing material 316L (customizable titanium alloy)
Self-cleaning Brush Yes
Optical window Optical fiber
Size 45*175.8mm
Max working pressure Underwater 10m
Response time <30sec

Power information



The power supply must be DC 6-12V +/-5%, current <50mA



Cable information



4 wire AWG-24 or AWG-26 shielding wire. OD=5mm



1, red wire - power supply (VCC)

2, white wire - 485 data _B (485_B)

3, green wire --- 485 data _A (485_A)

4, black wire --- ground (GND)

5, bare wire ---- shielding layer

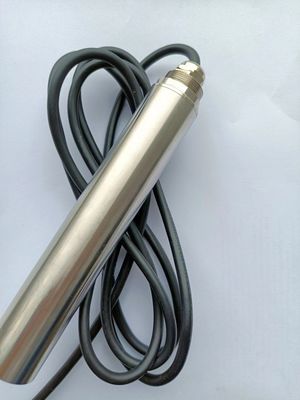

Ultraviolet fluorescence Oil In Water Sensor 0.1ppm Oil In Water Detectors 0

Our Service

* Standardized workshop and process
* Strict professional quality inspection
* Return is supported if the product is unqualified.
* Fast delivery
* Warranty for 12months

We actively innovate, continuously improve our products, and optimize industry application solutions. Based on the current rapid development of IoT technology, we also launched wireless water quality monitoring solutions. Combine smart phones, tablets and traditional measuring instruments through wireless transmission to create a real-time dynamic water quality monitoring system, marine environmental monitoring system, fishery water monitoring system, and provide complete solutions.

Ultraviolet fluorescence Oil In Water Sensor 0.1ppm Oil In Water Detectors 1

FAQ

Q: Is your company a manufacturer??
A: Yes,we are a professional manufacturer of online water quality monitoring products: oil in water sensor/ DO sensor/ NH4-N sensor / ORP / COD sensor / Blue-green algae sensor /Conductivity sensor /TDS / TSS /MLSS,ect.
Q: What parameters do you need for product selection?
A: Application, Range, Power supply and Output signal.
Q: How about the quality of the managements?
A: We have a complete quality control system, our products will be fully pre-inspection before shipping to you. We have the certification of ISO, CE, we could send the certification test of our company to you.

Q: Can you offer OEM services?
A: Yes,we support OEM and ODM products according to your requirements.
