| Place of Origin: | China |
|---|---|
| Brand Name: | Desun Uniwill |
| Model Number: | DS510 |
| Minimum Order Quantity: | 1 |
| Price: | Determined by the number of specific orders |
| Packaging Details: | Carton packaging |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 1000 |
| Product Name: | Online PH Sensor | Range: | 0~14pH |
|---|---|---|---|
| Principle: | Industrial Wire Electrode | Output Signal: | Support RS-485, MODBUS Protocol |
| Accuracy: | 0.01 | Installation: | Input Water |
| Housing Material: | POM | Response Time: | <30 Sec |
| Warranty: | 1 Year | Resolution: | 0.01 |
| Power Information: | DC 6~12V, Current <50mA | ||
| High Light: | Industrial Digital pH Sensor,online ph electrode,Pure Warter Treament ph electrode probe |
||

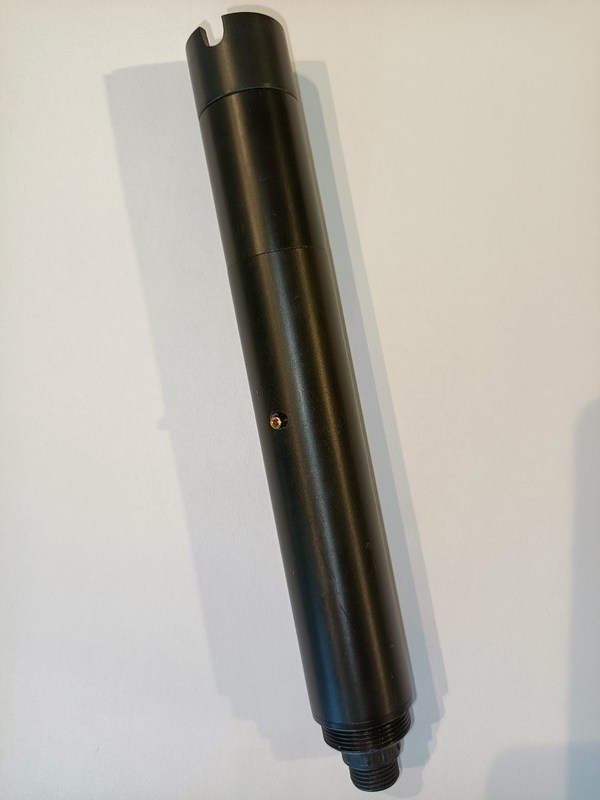

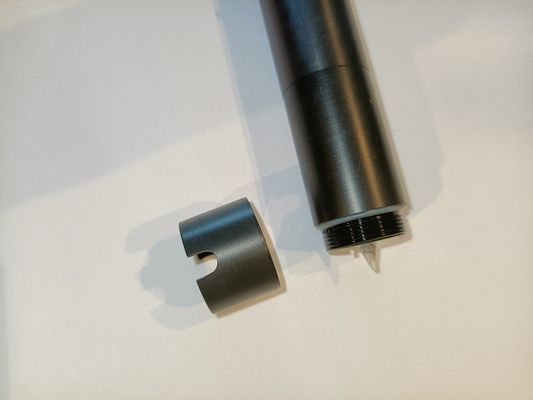

Industrial Online Ph Electrode Pure Warter Treament Ph Sensor probe
The digital pH sensor uses an industrial wire electrode with a flat front end for easy cleaning. Built-in temperature sensor for automatic temperature compensation, suitable for online long-term monitoring environment. The sensor adopts RS485 output and supports Modbus, which can realize networking and system integration without controller.
² Digital sensor, RS-485 output, support MODBUS
² Unaffected by transmission distance for better stability
² Built-in temperature sensor, automatic temperature compensation
Technical parameter
|
Product Model
|
Online digital PH sensor
|
|
Measuring Range
|
0~14pH
|
|
Response time
|
<30 sec
|
|
Precision
|
0.01Ph
|
|
Temperature range
|
0~ 50°C
|
|
Calibration method
|
Three-point calibration
|
|
Output Signal
|
Support RS-485, MODBUS protocol
|
|
Housing diameter
|
26mm
|
|
Housing length
|
167.5
|
|
Cable length
|
5 meters (default), can be customized
|
|
Power Information
|
DC 6~12V, current <50mA
|
|
Protection level
|
IP68
|
|
Material
|
POM
|
Cable definition
4 wire awg-24 or awg-26 shielding wire. Od = 5mm
1. Red wire - power supply (VCC)
2. White line - 485 data (485 A)
3. Green line -- 485 data (485 B)
4. Black wire - ground wire (GND)
5. Bare wire - shielding layer
Our company assures its first-hand buyers that there will not be any product defects caused by substandard materials or factory manufacturing in the 3 months after shipment. If a defect is found within the 3-month warranty period, Desun Uniwill Electronics promises to repair or replace the defective product or return the payment in addition to the first shipping and related formalities. Any product repaired or replaced during the warranty period will only enjoy the remaining warranty period of the original product.
This warranty does not apply to consumables such as consumable parts (including but not limited to lamps, pipes, etc.).
Contact Desun Uniwill Electronics or your agent to begin technical support during the warranty period.
After receiving the customer's questions about product quality, our company will confirm whether the product needs to be repaired within two weeks; products that have not been approved for repair cannot be returned.
We actively innovate, continuously improve our products, and optimize industry application solutions. Based on the current rapid development of IoT technology, we also launched wireless water quality monitoring solutions. Combine smart phones, tablets and traditional measuring instruments through wireless transmission to create a real-time dynamic water quality monitoring system, marine environmental monitoring system, fishery water monitoring system, and provide complete solutions
Q: Is your company a manufacturer??
A: Yes,we are a professional manufacturer of online water quality monitoring products: oil in water sensor/ DO sensor/ NH4-N sensor / ORP / COD sensor / Blue-green algae sensor /Conductivity sensor /TDS / TSS /MLSS,ect.
Q: What parameters do you need for product selection?
A: Application, Range, Power supply and Output signal.
Q: Can you offer OEM services?
A: Yes,we support OEM and ODM products according to your requirements.
Q: What are your terms of payment and delivery time?
A: We could accept T/T, Paypal, Western Union, Credit Assurance. Generally, we will arrange the shipment within 7 days after received payment.
Q: How about warranty?
A: 12 months warranty
