| Place of Origin: | China |
|---|---|
| Brand Name: | Desun Uniwill |
| Model Number: | DS2100 |
| Minimum Order Quantity: | 1 |
| Price: | Determined by the number of specific orders |
| Packaging Details: | Carton packaging |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 1000 |
| Model: | DS2100 | Measure Range: | Customized On Demand |
|---|---|---|---|
| Material: | POM Materials Can Be Customised | Output Signal: | RS485 |
| IP Grade: | IP68 | Deepest Depth: | 10M |
| Measurement Parameters: | Optional | ||
| High Light: | Modbus Multiparameter Water Quality Sonde,Multiparameter Water Quality Sonde,Rs485 Water Treatment Sensor |
||
Water treatment sensor water meter rs485 modbus multi-parameters monitor water quality detector sewage treatment sensor

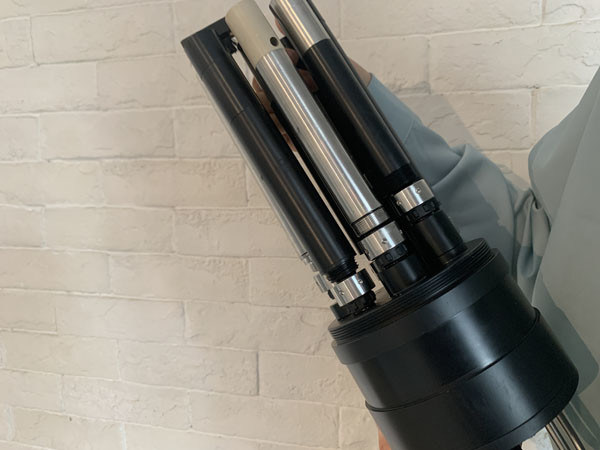

Our company has launched the latest online multi-parameter (all-in-one) water quality sensor with integrated design, which is reliable and easy to use. A maximum of 6 digital sensors can be connected at the same time. Fluorescent dissolved oxygen sensor, four- electrode conductivity sensor, turbidity sensor, digital pH electrode, blue-green algae and chlorophyll sensor can be selected at the same time. RS485 output, equipped with automatic cleaning device, greatly reducing maintenance costs, each sensor is equipped with quick-plug waterproof connector. Compared with traditional shore-type meters, installation is more convenient and can more directly reflect the real data on the spot.
Digital sensor, RS485 output, support MODBUS
All calibration parameters are stored in the sensor, and each probe is equipped with a waterproof connector, which can be easily replaced.
Equipped with an automatic cleaning device, it can effectively remove the dirt on the sensor surface, prevent the growth of microorganisms, and be more accurate and less maintenance.
Optional fluorescent dissolved oxygen, four-electrode conductivity, turbidity, digital pH, blue-green algae, and chlorophyll sensors are suitable for long-term online monitoring.
Integrated design, can connect 11 probes at the same time, measure 7 parameters.
|
Production Name
|
Specifications
|
||
|
Optical dissolved
oxygen probe
|
Range
|
0-20mg/L or 0-200% saturation
|
|
|
Precision
|
±0.3mg/L
|
||
|
Resolution
|
0.01mg/L
|
||
|
|
Range
|
0~1000 NTU
|
|
|
Precision
|
<5% or 0.3NTU
|
||
|
Resolution
|
0.1NTU
|
||
|
|
Range
|
1uS/cm-200mS/cm
|
1uS/cm-100mS/cm
|
|
Precision
|
1% FS
|
||
|
Resolution
|
0-1000uS/cm: 0.1uS/cm;
1mS/cm-100mS/cm: 0.1mS/cm
|
||
|
|
Range
|
0~400 ug/L or 0~100RF
|
|
|
The detection limit
|
0.1 μg/L
|
||
|
Resolution
|
0.1 μg/L or 0.1% RFU
|
||
|
Digital pH probe
|
Range
|
0-14pH
|
|
|
Precision
|
±0.1pH
|
||
|
Resolution
|
0.01
|
||
|
Digital ORP probe
|
Range
|
-999~999mV
|
|
|
Precision
|
±20mV
|
||
|
Resolution
|
1mV
|
||
|
Oil in water water
|
Range
|
0-20ppm or 0-50ppm
|
|
|
Precision
|
1%
|
||
|
Resolution
|
0.1ppm
|
||
|
Ammonia nitrogen probe
|
Range
|
0~1000mg/L
|
|
|
Precision
|
±10%
|
||
|
Resolution
|
0.1mg/L
|
||
|
other information |
Operating temperature
|
0~50°C
|
|
|
Output
|
RS485
|
||
|
Automatic cleaning brush
|
Yes / Optional
|
||
|
powered by
|
12Vdc±5%
|
||
|
Current
|
100mA
|
||
|
Protection level
|
IP68
|
||
|
Cable length
|
10m, 5m, 15m and 30
|
||
DS2100 the all-in-one water quality sensor is equipped with a cleaning brush to extend maintenance intervals. However, due to the diversity of the environment, regular inspections, cleaning and calibration of the sensors are recommended.
| Maintenance tasks, | Recommended maintenance frequency |
| Cleaning the sensor | Depending on the use environment |
| Calibration of sensors (if required by the competent authority) | Periodic sensor calibration |
Q: Is your company a manufacturer??
A: Yes,we are a professional manufacturer of online water quality monitoring products: oil in water sensor/ DO sensor/ NH4-N sensor / ORP / COD sensor / Blue-green algae sensor /Conductivity sensor /TDS / TSS /MLSS,ect.
Q: What parameters do you need for product selection?
A: Application, Range, Power supply and Output signal.
Q: How about the quality of the managements?
A: We have a complete quality control system, our products will be fully pre-inspection before shipping to you. We have the certification of ISO, CE, we could send the certification test of our company to you.
Q: Can you offer OEM services?
A: Yes,we support OEM and ODM products according to your requirements.
Q: What are your terms of payment and delivery time?
A: We could accept T/T, Paypal, Western Union, Credit Assurance. Generally, we will arrange the shipment within 7 days after received payment.
Q: How about warranty?
A: 12 months warranty
