Fluorescence Oil In Water Analyzer RS485 Underground Oil In Water Detector

Basic Information
Place of Origin: China
Brand Name: Desun Uniwill
Model Number: DS530
Minimum Order Quantity: 1
Price: Determined by the number of specific orders
Packaging Details: Carton packaging
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 2000 Piece/Pieces per Month
Detail Information
Output Signal: RS-485, MODBUS Protocol Theory: Ultraviolet Fluorescence Method
Measuring Range: 0~100mg/L Material: SS316 (customizable Titanium Alloy)
Power Supply: DC 6~12V, Current <50mA (when Not Cleaned) Response Time: <5 Sec
Deepest Length: 10 M
High Light:

Fluorescence Oil In Water Analyzer

,

Oil In Water Analyzer RS485

,

Underground oil in water detector


Product Description

High Accuracy Online Ultraviolet Fluorescence Method Oil In Water AnalyzerRS485 Underground Tank Leak Detector For Water

Product Description



Principle



The ultraviolet fluorescence method is used to monitor the oil content in the water, and the oil concentration in the water is quantitatively analyzed based on the fluorescence intensity emitted by the petroleum and its aromatic hydrocarbon compounds and compounds containing conjugated double bonds after absorbing ultraviolet light. The aromatic hydrocarbons in petroleum can produce fluorescence under the excitation of ultraviolet light, and the value of oil in water can be calculated according to the intensity of the fluorescence.



The oil in water sensor adopts the principle of ultraviolet fluorescence analysis, has high sensitivity, and can detect soluble and emulsifiable oils. In addition, the self-cleaning brush version can be selected to effectively eliminate the influence of oil pollution on the measurement. It is suitable for a variety of water quality measurement scenarios such as oilfield monitoring, industrial circulating water, condensate, wastewater treatment, and surface water stations.



Sensor maintenance

1) Sensor outer surface: Wash the outer surface of the sensor with tap water. If there is still debris, wipe it with a damp soft cloth. For some stubborn dirt, you can add some household washing liquid to the tap water to clean it.

2) Measuring the outer surface of the window: use tap water to clean the outer surface of the sensor. For some stubborn dirt, you can use traditional detergent and soft cloth to clean.

3) Check the cable of the sensor: the cable should not be tightened during normal operation, otherwise the internal wires of the cable will be easily broken, causing the sensor to not work normally.



Technical parameters

Product Oil in water sensor
Response Time <5 sec
Model Number DS530
Principle Ultraviolet fluorescence method
Measuring Range 0-50ppm/0-200ppm or 0-0.40FLU
Precision 3%
Resolution 0.01ppm
Temp range 0-50℃
Linearity R2>0.999
Protection level Ip68
Output signal Support RS-485, MODBUS protocol
Assembly Input type,thread
Power information DC 6~12V, current <50mA (when not cleaned)
Cable length 5 meters (default), can be customized
Housing material SS316 (customizable titanium alloy)
Self-cleaning Brush Have
Optical window Have

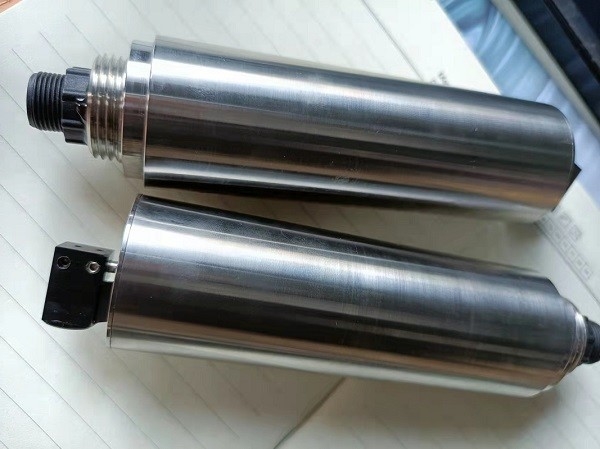

Fluorescence Oil In Water Analyzer RS485 Underground Oil In Water Detector 0



Application

Fluorescence Oil In Water Analyzer RS485 Underground Oil In Water Detector 1

Multi-parameter water quality sensors (five parameters / seven parameters), optical dissolved oxygen, fiber turbidity, four-electrode conductivity, blue-green algae, chlorophyll, water oil and COD have been introduced. Widely used in water environmental protection, sewage treatment, industrial process monitoring, aquaculture, groundwater monitoring, water plants, petrochemical enterprises, small and medium-sized environmental protection companies, food fermentation and pharmaceuticals. Through water environment monitoring equipment, water quality can be monitored more effectively during processing, discharge and recycling.
We actively innovate, continuously improve our products, and optimize industry application solutions. Based on the current rapid development of IoT technology, we also launched wireless water quality monitoring solutions. Combine smart phones, tablets and traditional measuring instruments through wireless transmission to create a real-time dynamic water quality monitoring system, marine environmental monitoring system, fishery water monitoring system, and provide complete solutions.
