Optical Fiber Digital Hydrocarbon In Water Analyzer Ip68 Automatic Cleaning

Basic Information
Place of Origin: China
Brand Name: Desun Uniwill
Model Number: DS530
Minimum Order Quantity: 1
Price: Determined by the number of specific orders
Packaging Details: Carton packaging
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 2000 Piece/Pieces per Month
Detail Information
Product Model: DS530 Output Signal: Support RS-485, MODBUS Protocol
Method: Ultraviolet Fluorescence Method Measure Range: 0~50ppm/0~200ppm
Material: 316L (customizable Titanium Alloy) Power Supply: DC 6~12V, Current <50mA (when Not Cleaned)
High Light:

Digital Hydrocarbon In Water Analyzer


Hydrocarbon In Water Analyzer Ip68


Ip68 Digital Water Analyzer

Product Description

Water Quality Sensor Online Crude Oil In Water Sensor Oil Hydrocarbons Monitoring In Water

Product Description




The oil content in the water was monitored by ultraviolet fluorescence method, and the
concentration of oil in the water was quantitatively analyzed according to the fluorescence
intensity of the oil and its aromatic hydrocarbon compound and the conjugated double
bond compound absorbing ultraviolet light. The aromatic hydrocarbons in petroleum can
generate fluorescence under the excitation of ultraviolet light, and calculate the value of oil
in water according to the intensity of fluorescence.




* Digital sensor, RS-485 output, support MODBUS
* With automatic cleaning brush to eliminate the impact of oil on the measurement
* Eliminate the effects of ambient light on measurements with unique optical and electronic filtering techniques
* Unaffected by suspended solids in water
Technical parameters
Product Oil in water sensor
Measured parameters Oil in water, temperature
Model Number DS530
Principle Ultraviolet fluorescence method
Measuring Range 0-50ppm/0-200ppm or 0-0.40FLU
Precision 3%
Resolution 0.01ppm
The detection limit According to the actual oil sample
Linearity R2>0.999
Protection level Ip68
Output signal Support RS-485, MODBUS protocol
Assembly Input type,thread
Power information DC 6~12V, current <50mA (when not cleaned)
Probe cable length 5 meters (default), can be customized
Housing material 316L (customizable titanium alloy)
Self-cleaning Brush Yes
Optical window Optical fiber

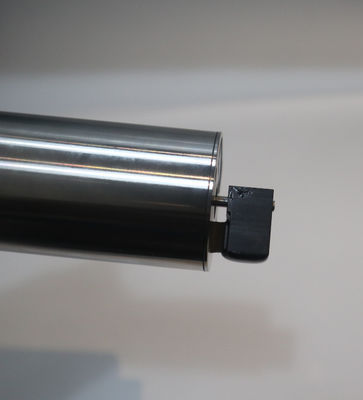

Optical Fiber Digital Hydrocarbon In Water Analyzer Ip68 Automatic Cleaning 0

Optical Fiber Digital Hydrocarbon In Water Analyzer Ip68 Automatic Cleaning 1

Optical Fiber Digital Hydrocarbon In Water Analyzer Ip68 Automatic Cleaning 2

Why choose us?

1,Standardized workshop and process
2,Strict professional quality inspection
3,Return is supported if the product is unqualified.
4, Fast delivery
5, Warranty for 1 years

6,We actively innovate, continuously improve our products, and optimize industry application solutions. Based on the current rapid development of IoT technology, we also launched wireless water quality monitoring solutions. Combine smart phones, tablets and traditional measuring instruments through wireless transmission to create a real-time dynamic water quality monitoring system, marine environmental monitoring system, fishery water monitoring system, and provide complete solutions.
