Model: | DS503(1mm Gap) | COD Range: | 2.5 To 3000 Mg / L |
---|---|---|---|
BOD Range: | 0~1000 Mg / L | Power Supply: | 12VDC +/-5% |
Output Signal: | RS485 / Modbus | Accuracy: | 0.01mg/L COD |
Calibration: | 1 Or 2 Point Calibration | Self-cleaning Brush: | COD Range Over 2000, No Self-cleaning Brush |
High Light: | UV Chemical Oxygen Demand Sensor,Chemical Oxygen Demand Sensor RS485,Online Bod Cod Meter |
Description

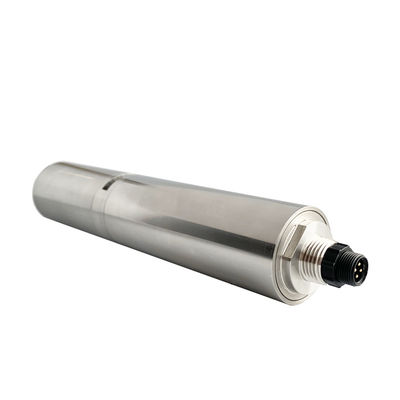

COD sensor is a new generation of environmental protection COD/ BOD sensor, no reagent, no pollution, more economic and environmental protection. Small size, easy to install, and can monitor water quality online. Turbidity interference automatic compensation, with automatic cleaning device, even long-term monitoring also has good stability.
Measuring principle
Many organic substances disclosed in water will absorb UV light. Therefore, the total amount of organic pollutants in water can be measured by measuring the absorption of these organic substances by UV light with a wavelength of 254 nm, which can automatically compensate for optical path attenuation and turbidity effects, resulting in more stable and reliable measurement values.
Item | Parameters | Price | |
Model | Measuring range | Application field | USD |
DS501(6 mm gap) |
COD 0.75 to 500 mg / L BOD 0~200 mg / L
|
Tap water, Sewage treatment plant outlet natural waters |
1200.00 |
DS502(1mm gap) |
COD 2.5 to 1000 mg / L BOD 0~500 mg / L
|
Industrial process control,Raw water |
1290.00 |
DS503(1mm gap) |
COD 2.5 to 3000 mg / L BOD 0~1000 mg / L
|
Industrial process control, Wastewater treatment inlet |
1680.00 |
Power supply | 12VDC +/-5% | ||
Output signal | RS485 / Modbus | ||
Accuracy | 0.01mg/L COD | ||
Calibration | 1 or 2 point calibration | ||
Self-cleaning brush | COD range over 2000, no self-cleaning brush |
Common problem
Error | Possible causes | Solutions |
Unstable reading | Connection failure | Reconnect the controller and cables |
Cable failure | Please contact us | |
Measured values are too high, too low, or the values remain unstable | The sensor measurement window is blocked | Cleaning surface |
Quality assurance
The online COD warranty period is 1 year from the delivery date.
If the product is found to be faulty during the warranty period, our company promises to repair or replace the faulty product free of charge, or return the order for the faulty product to the user after deducting the first shipping fee. Repaired or replaced products will only enjoy the remaining warranty period.
